Voron Trident V2.4 LDO Rev D Printed Parts

Order number	Demo of Enhanced Part Manifest
Primary color	Black
Accent color	Burnt Orange

Stock Voron 2.4 Parts

Part	Name	Quantity Needed

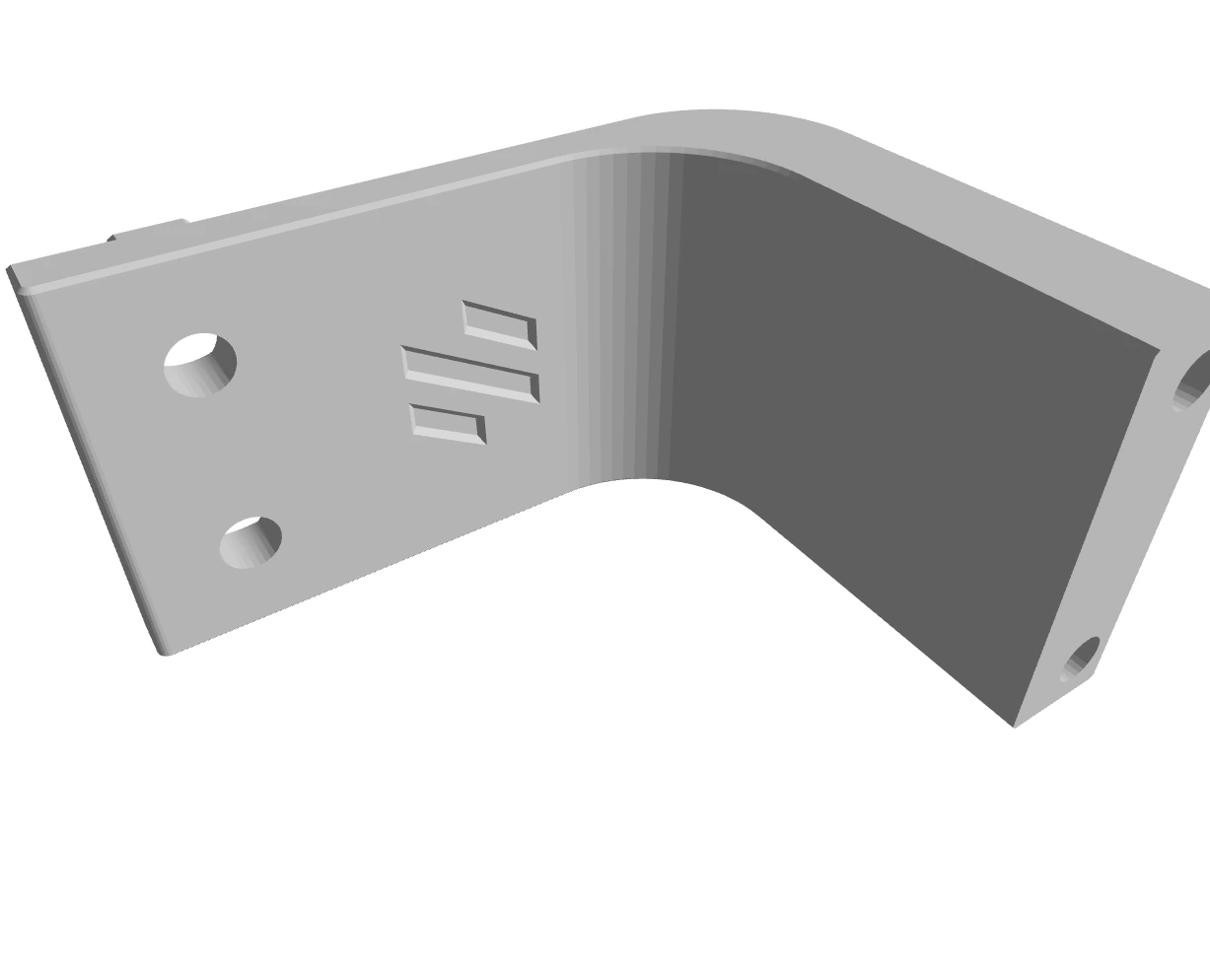

Open large \| Close	Klicky-Probe/Printers/Voron/v1.8_v2.4_Legacy_Trident/v1.8_v2.4_Legacy_Trident_STL/Dock_mount_fixed_v2.stl	1 ☐

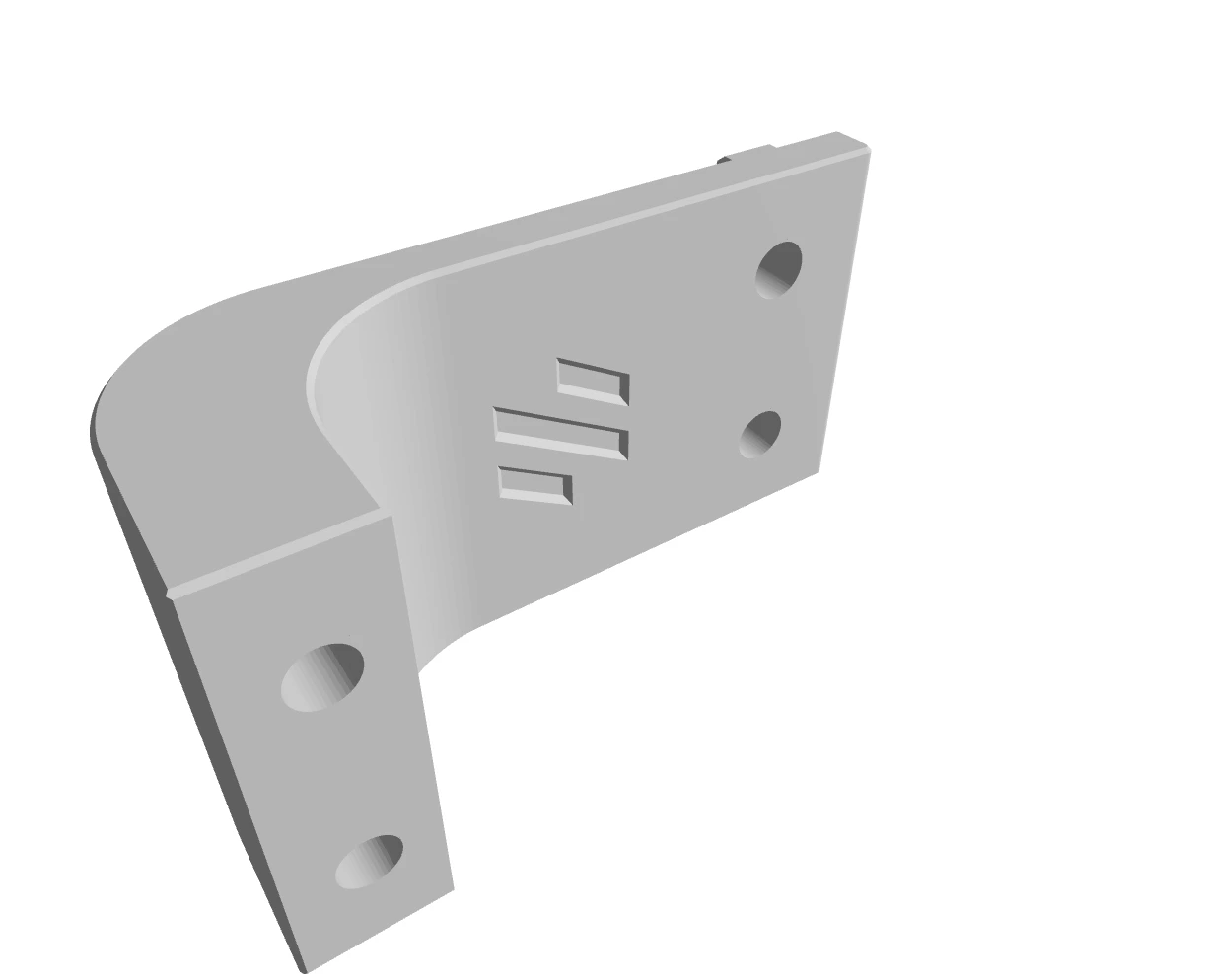

Open large \| Close	Klicky-Probe/Printers/Voron/v1.8_v2.4_Legacy_Trident/v1.8_v2.4_Legacy_Trident_STL/Dock_sidemount_fixed_v2.stl	1 ☐

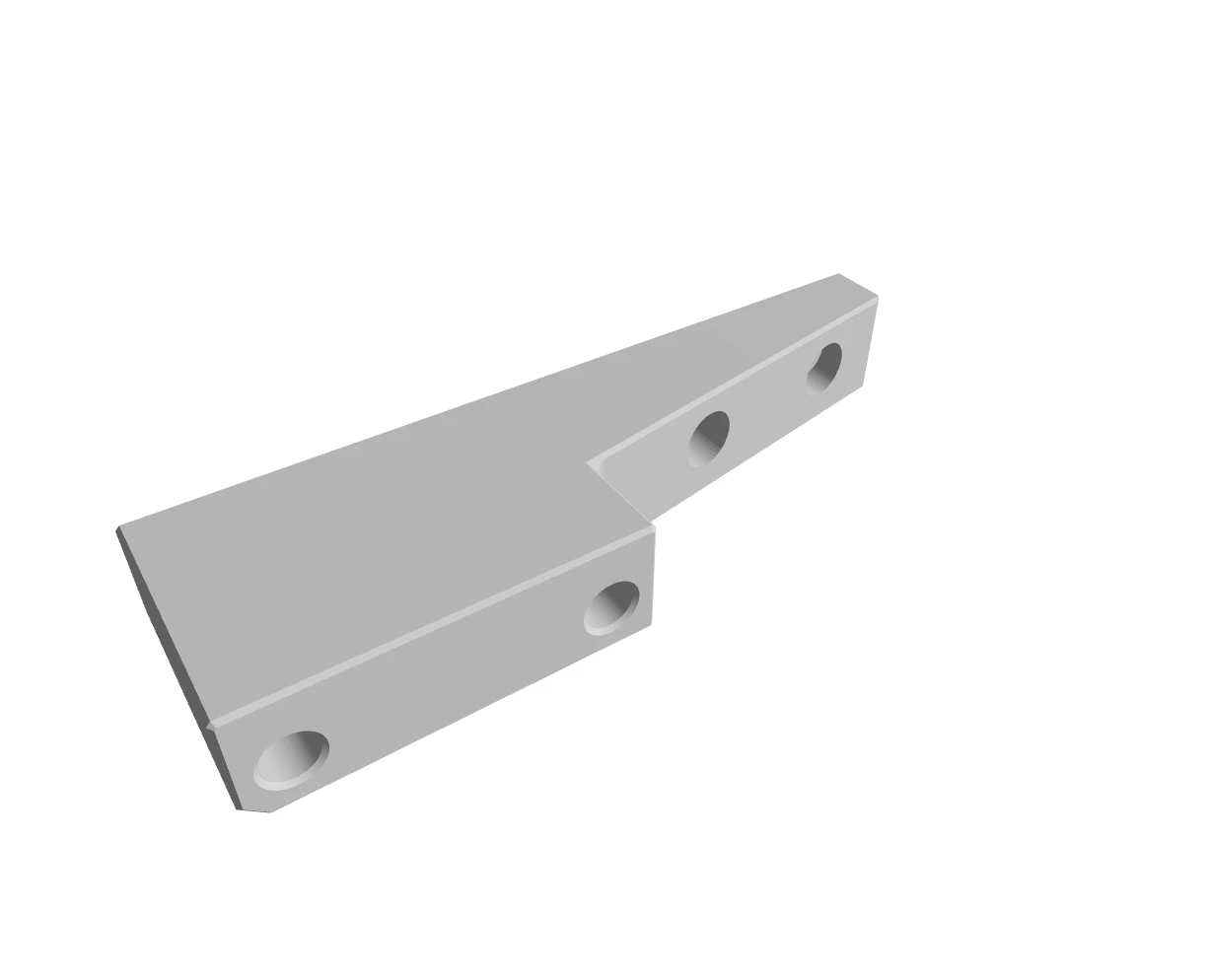

Open large \| Close	Klicky-Probe/Printers/Voron/v1.8_v2.4_Legacy_Trident/v1.8_v2.4_Legacy_Trident_STL/Dock_sidemount_left_v2.stl	1 ☐

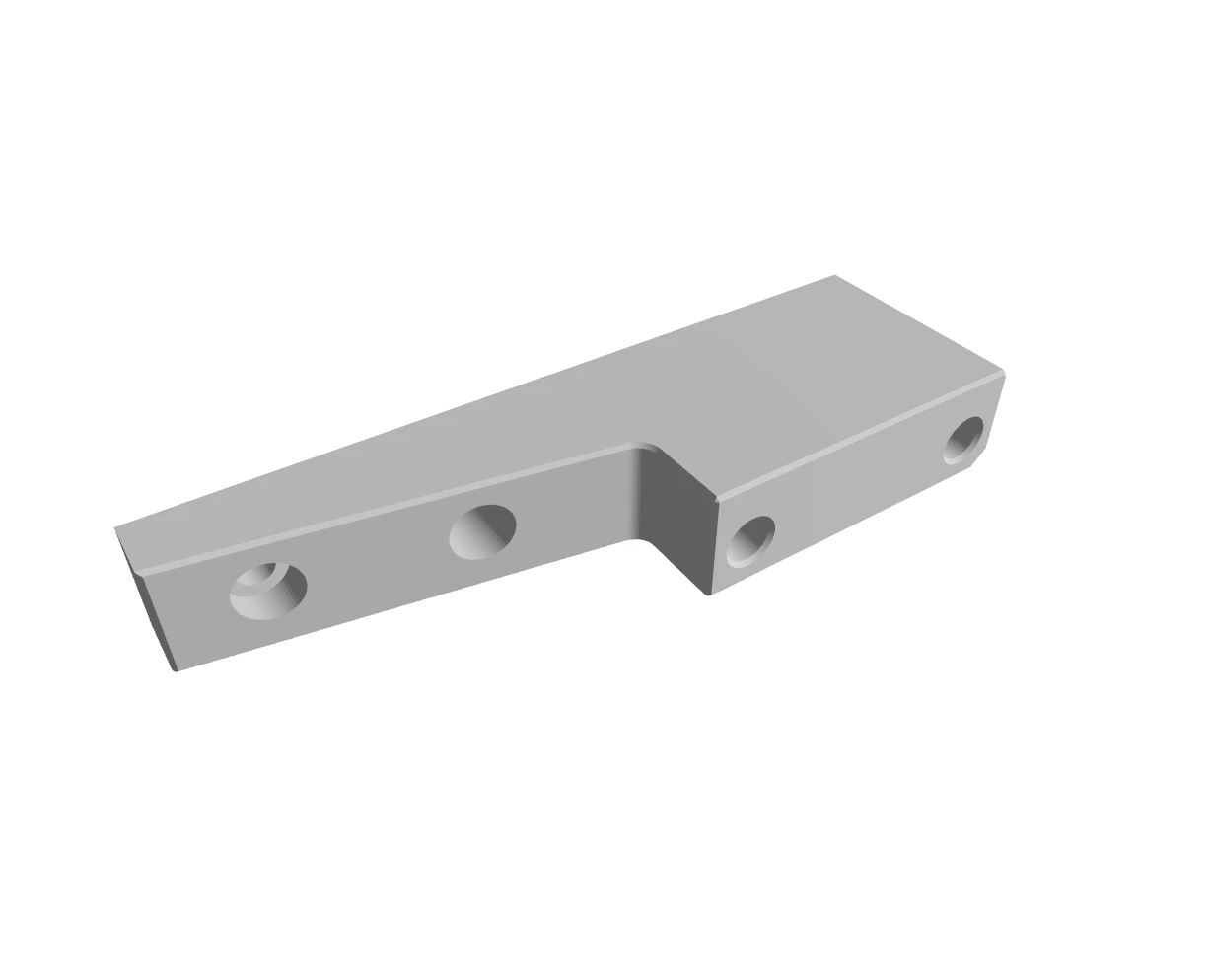

Open large \| Close	Klicky-Probe/Printers/Voron/v1.8_v2.4_Legacy_Trident/v1.8_v2.4_Legacy_Trident_STL/Dock_sidemount_right_v2.stl	1 ☐

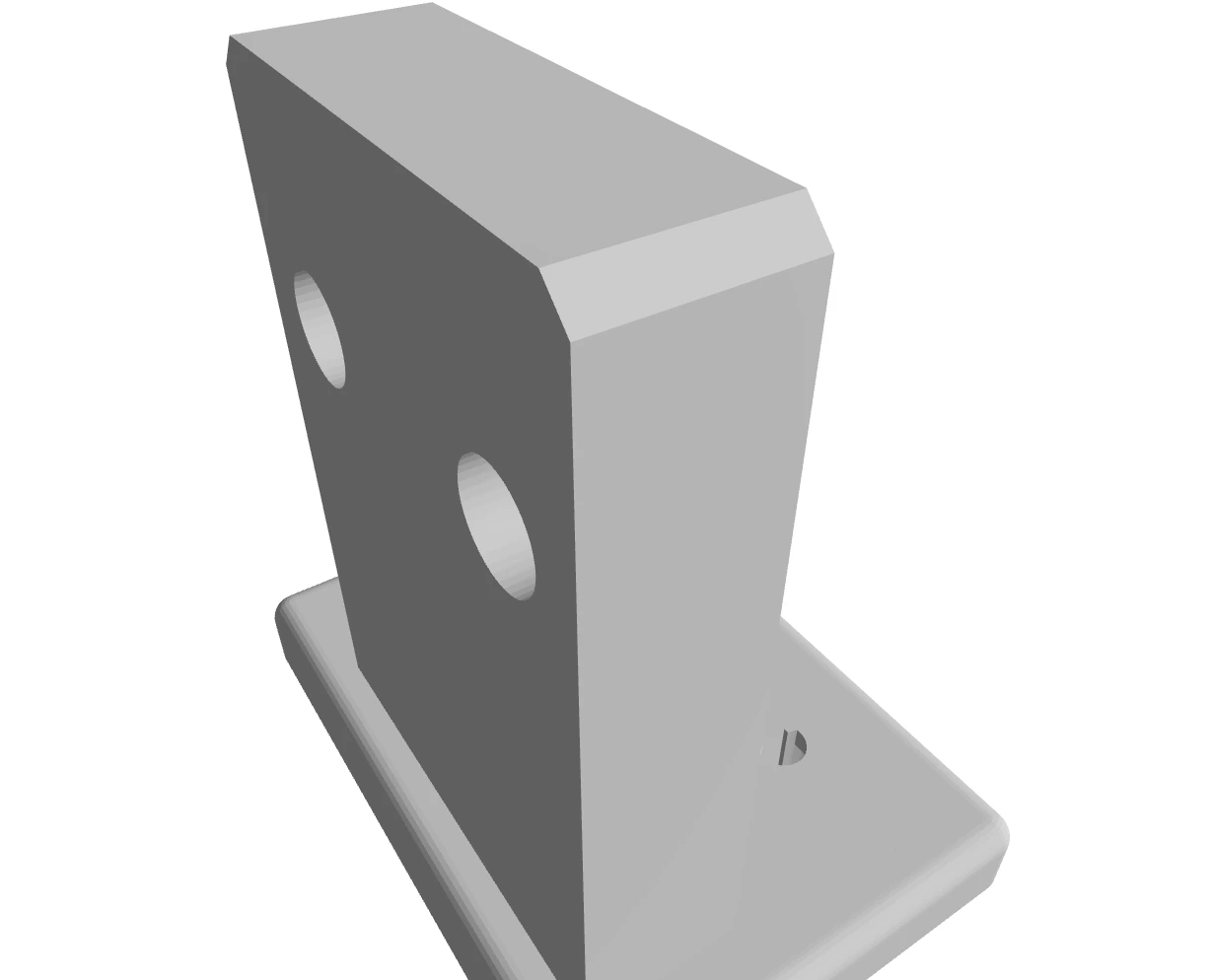

Open large \| Close	Klicky-Probe/Printers/Voron/v1.8_v2.4_Legacy_Trident/v1.8_v2.4_Legacy_Trident_STL/KlickyProbe_AB_mount_v2.stl	1 ☐

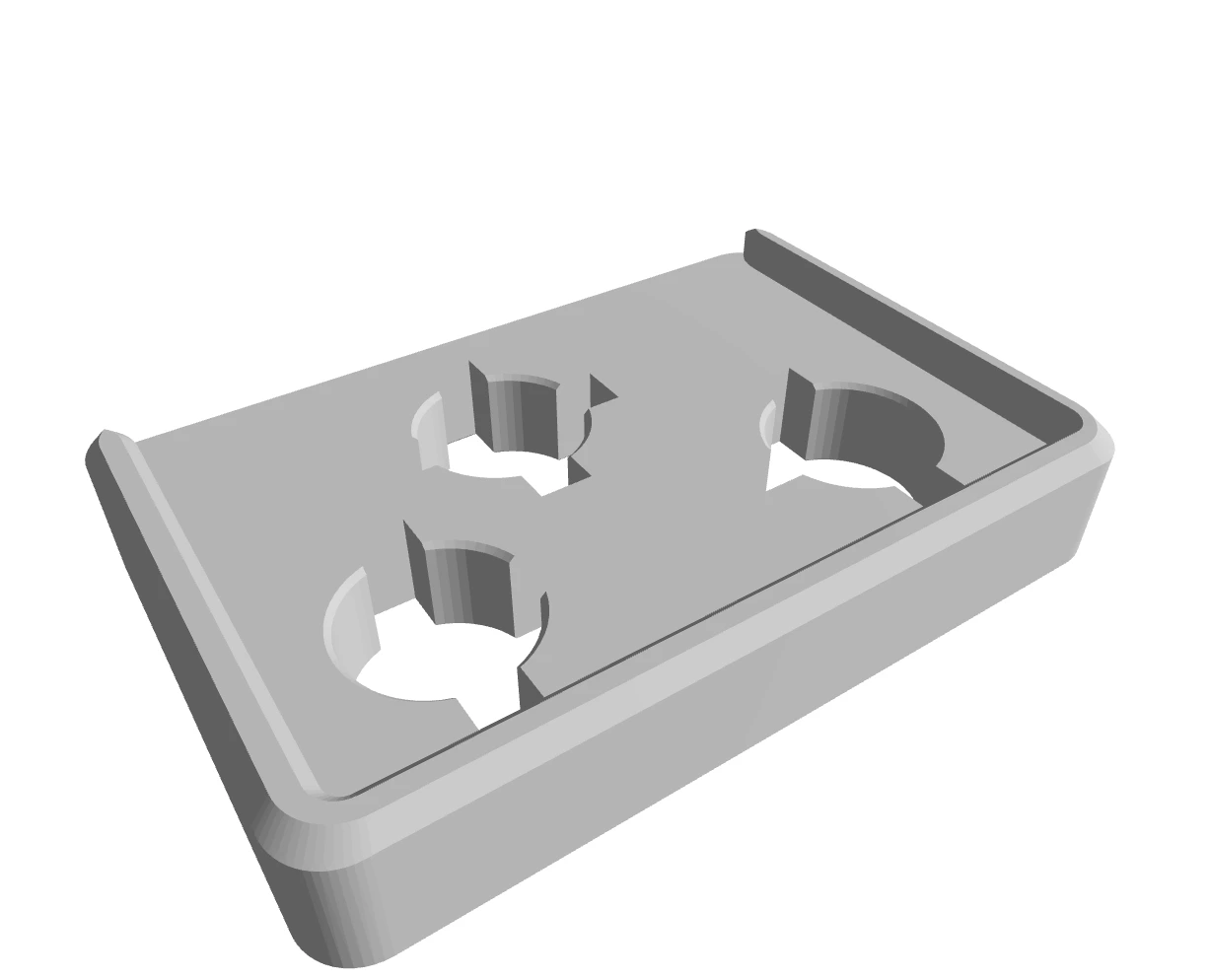

Open large \| Close	Klicky-Probe/Printers/Voron/v1.8_v2.4_Legacy_Trident/v1.8_v2.4_Legacy_Trident_STL/Mount_magnet_holder.stl	1 ☐

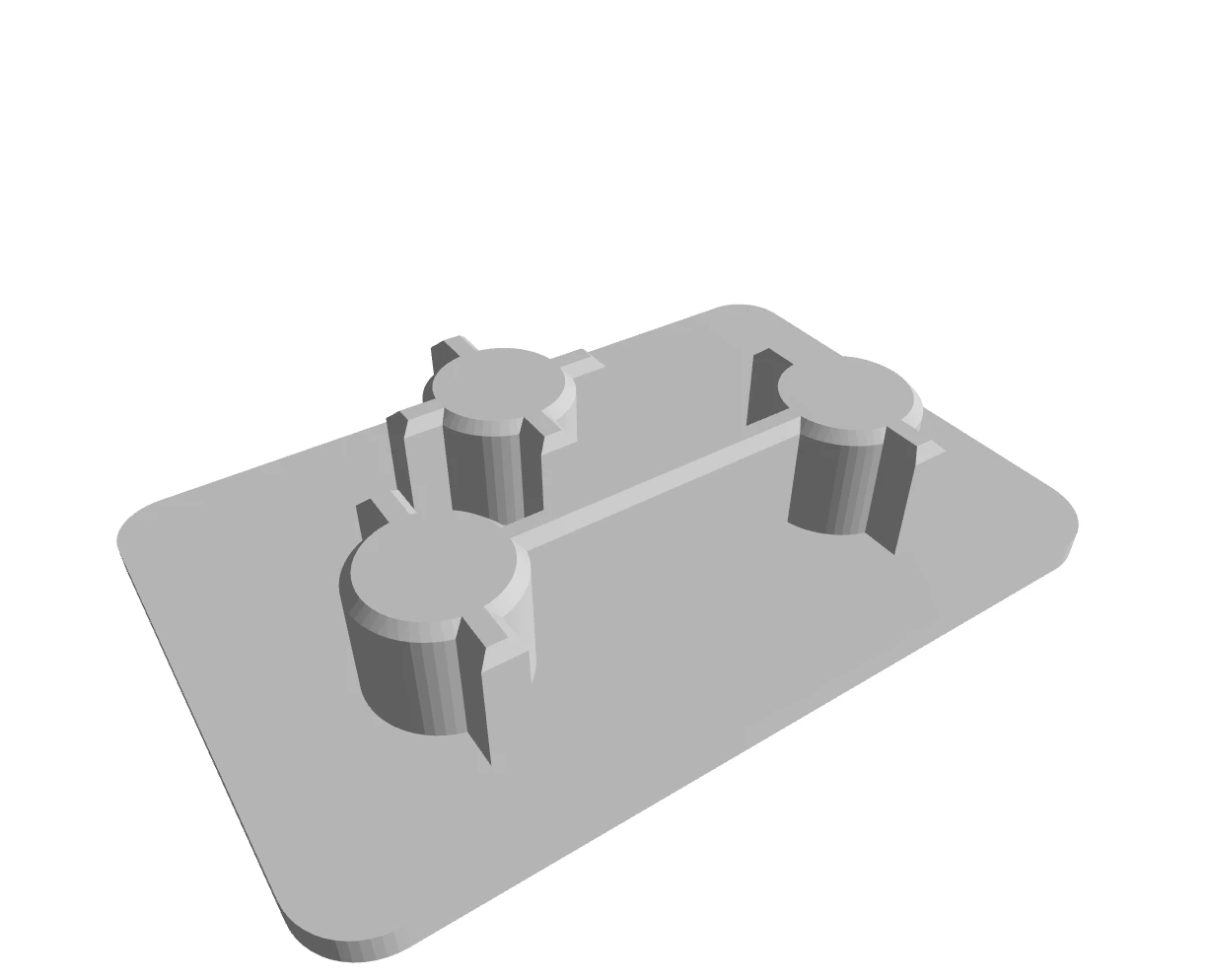

Open large \| Close	Klicky-Probe/Printers/Voron/v1.8_v2.4_Legacy_Trident/v1.8_v2.4_Legacy_Trident_STL/Mount_magnet_pressfit_helper.stl	1 ☐

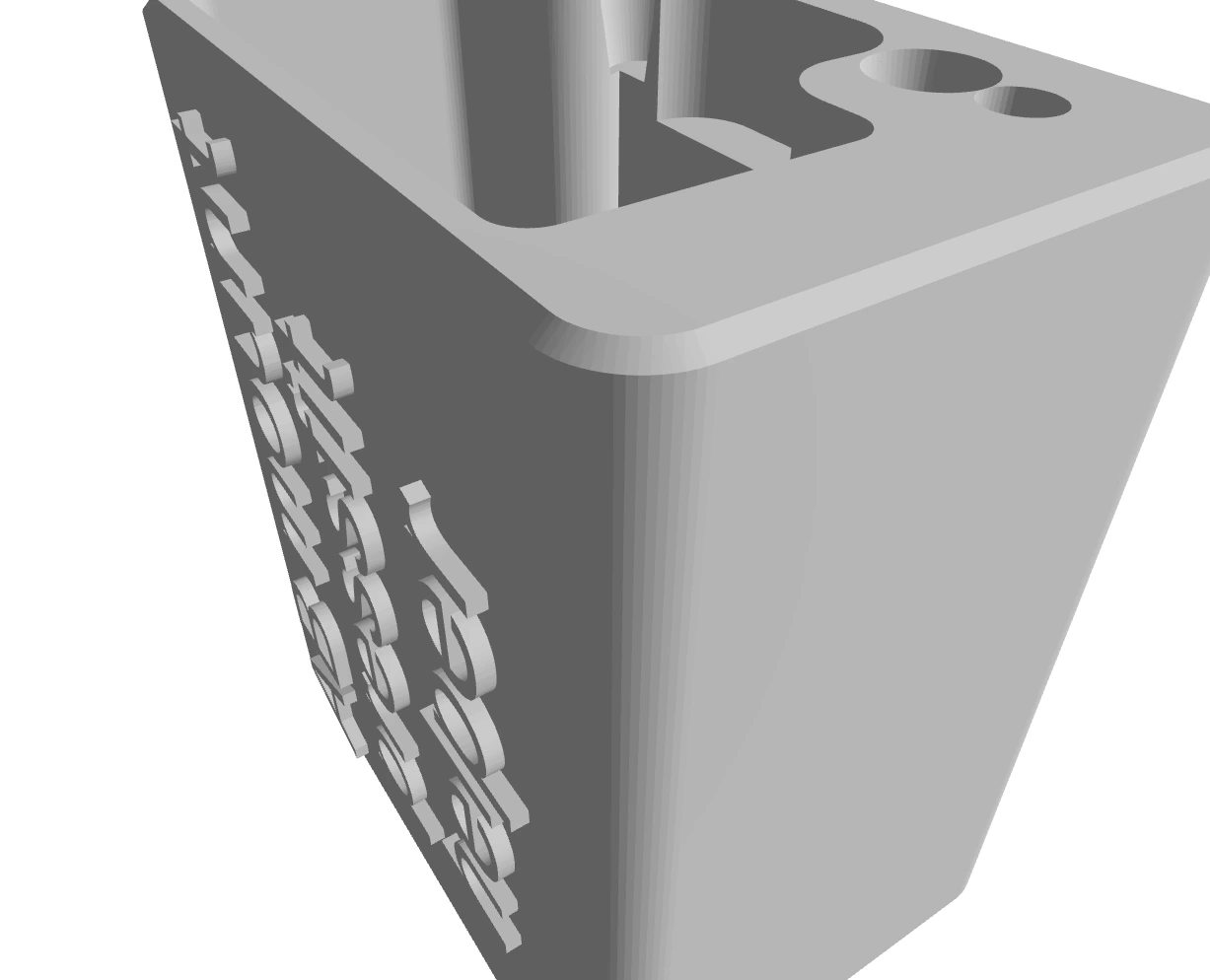

Open large \| Close	Klicky-Probe/Printers/Voron/v1.8_v2.4_Legacy_Trident/v1.8_v2.4_Legacy_Trident_STL/Mount_pressfit_holder_v2.stl	1 ☐
Open large \| Close	Klicky-Probe/Probes/KlickyProbe/STL/1mm_Spacer.stl	1 ☐
Open large \| Close	Klicky-Probe/Probes/KlickyProbe/STL/KlickyProbe_v2.stl	1 ☐
Open large \| Close	Klicky-Probe/Probes/KlickyProbe/STL/Probe_Dock_v2.1.stl	1 ☐
Open large \| Close	Klicky-Probe/Probes/KlickyProbe/STL/Probe_magnet_holder.stl	1 ☐
Open large \| Close	Klicky-Probe/Probes/KlickyProbe/STL/Probe_magnet_pressfit_helper.stl	1 ☐
Open large \| Close	Klicky-Probe/Probes/KlickyProbe/STL/Probe_pressfit_holder.stl	1 ☐

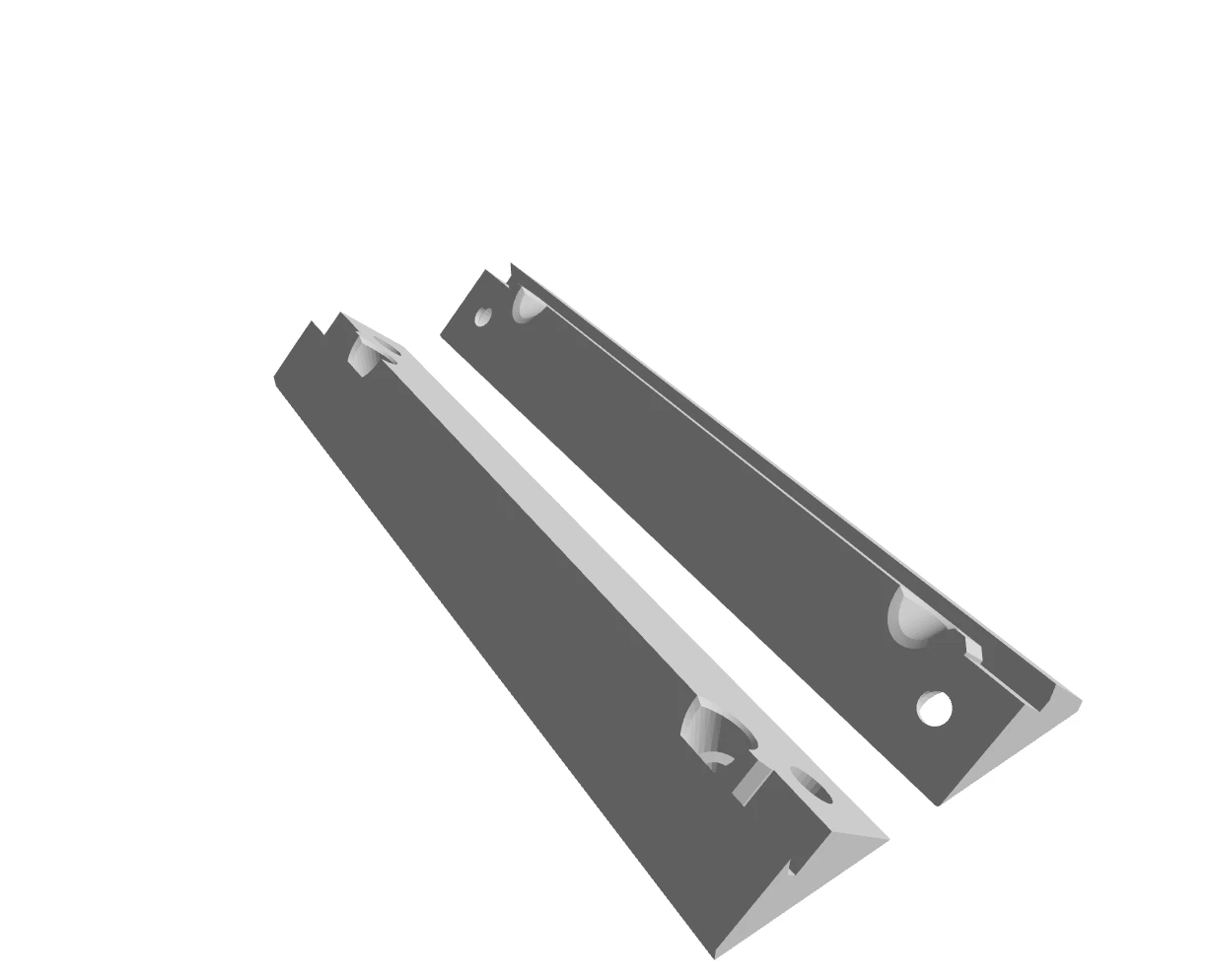

Open large \| Close	LDOVoron2/STLs/COB Light Strip/cob_light_strip_mount_100mm.stl	1 ☐

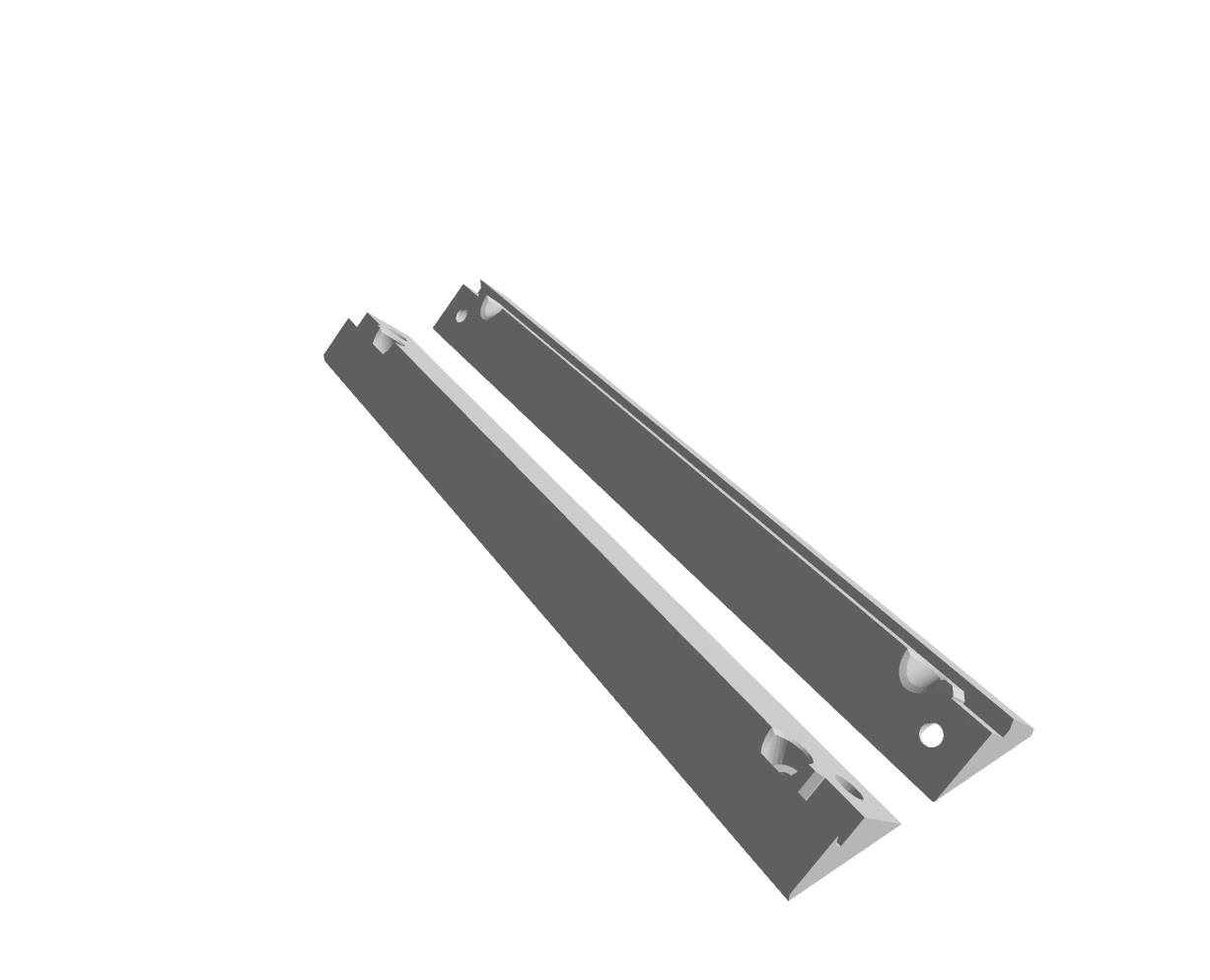

Open large \| Close	LDOVoron2/STLs/COB Light Strip/cob_light_strip_mount_150mm.stl	1 ☐

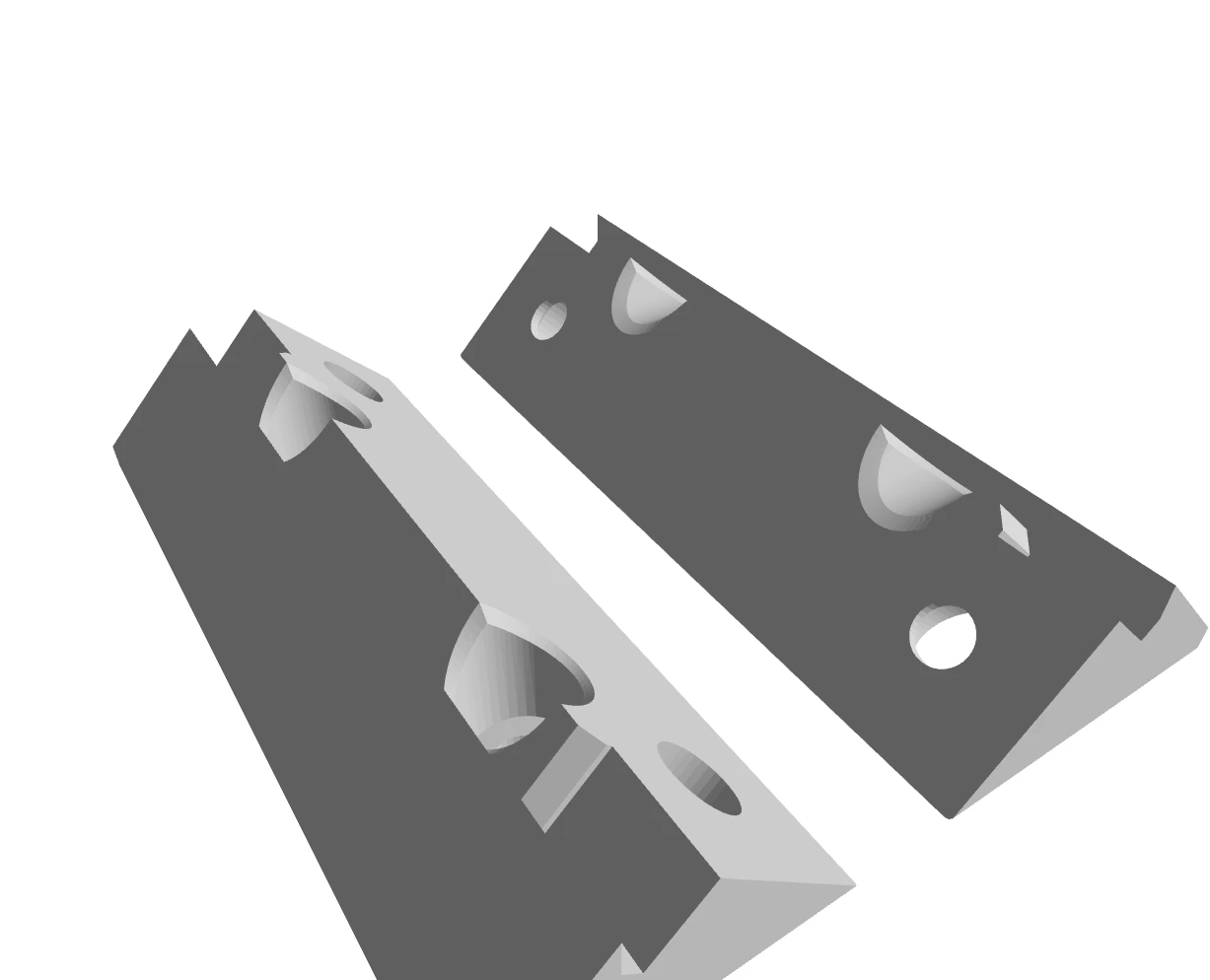

Open large \| Close	LDOVoron2/STLs/COB Light Strip/cob_light_strip_mount_50mm.stl	1 ☐

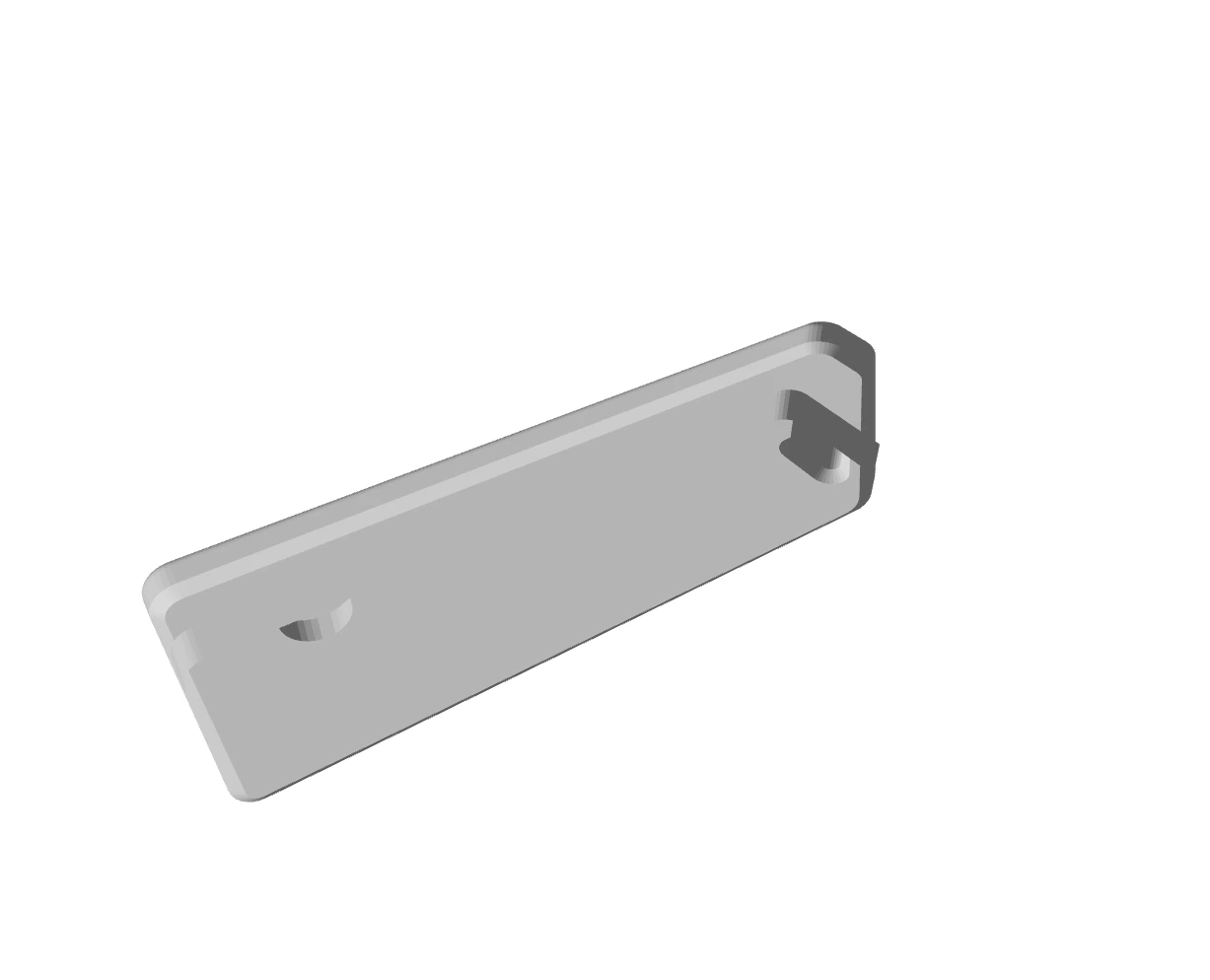

Open large \| Close	LDOVoron2/STLs/LDO Door/handle_a_x2.stl	2 ☐☐

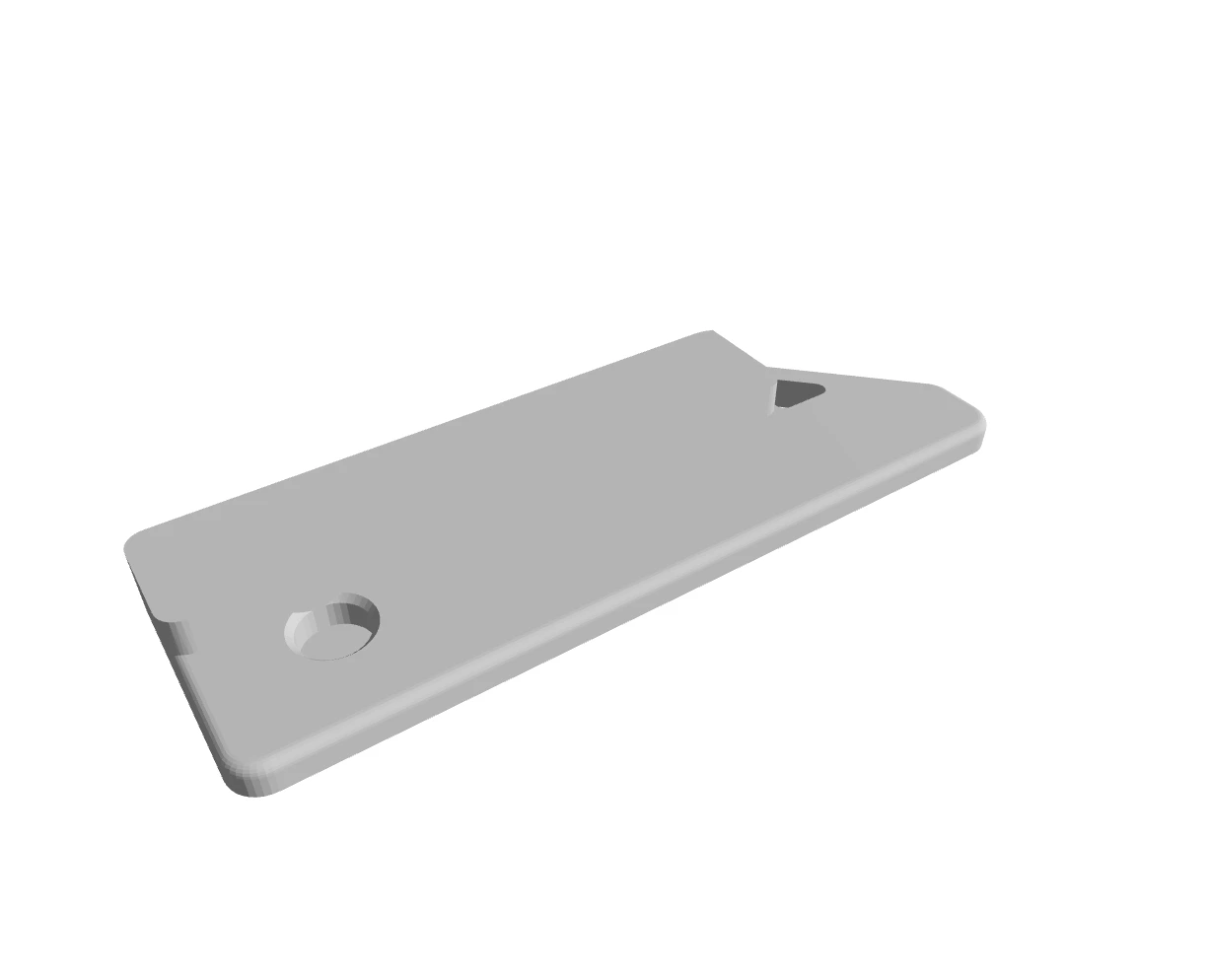

Open large \| Close	LDOVoron2/STLs/LDO Door/handle_b.stl	1 ☐

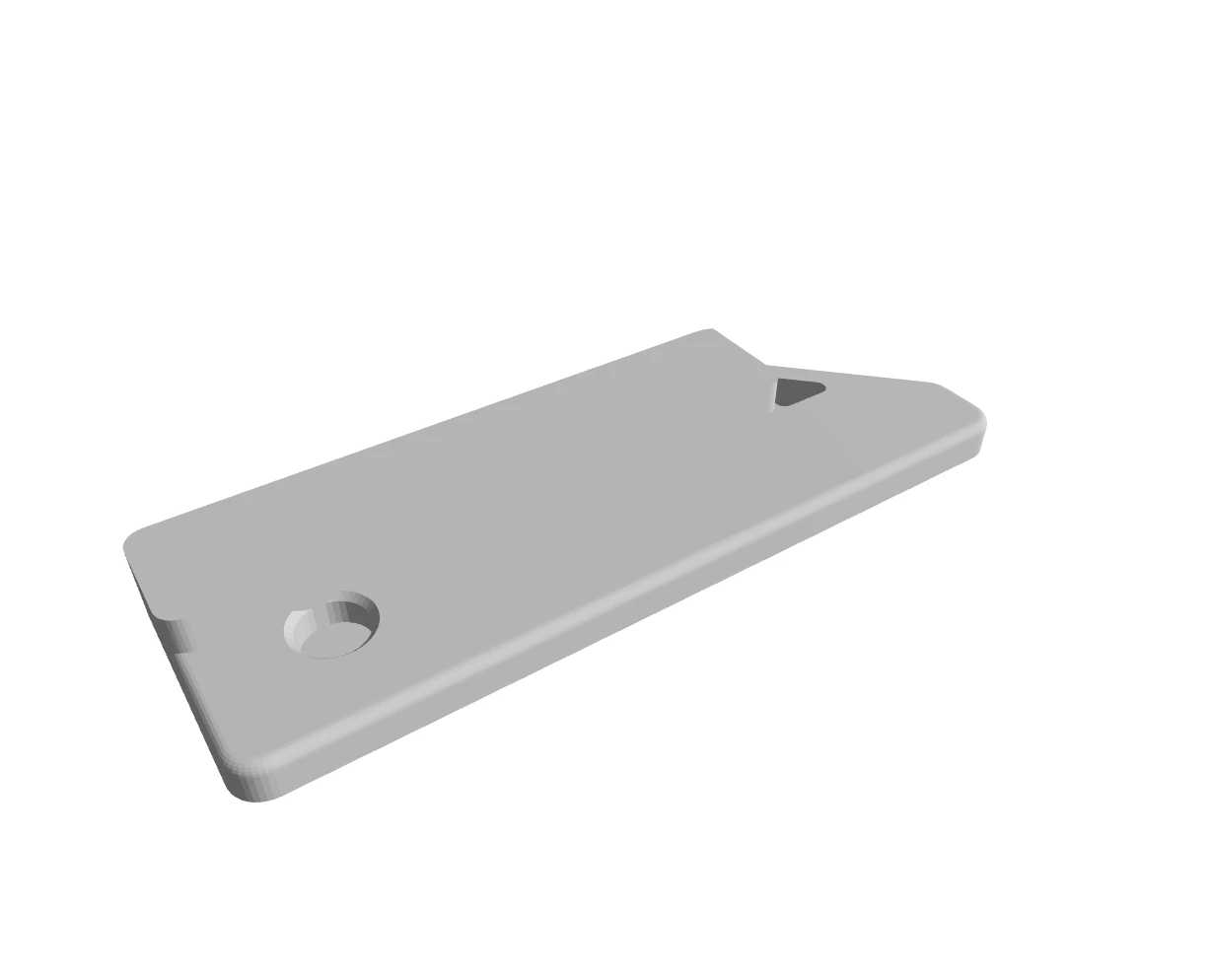

Open large \| Close	LDOVoron2/STLs/LDO Door/handle_b_nameplate.stl	1 ☐

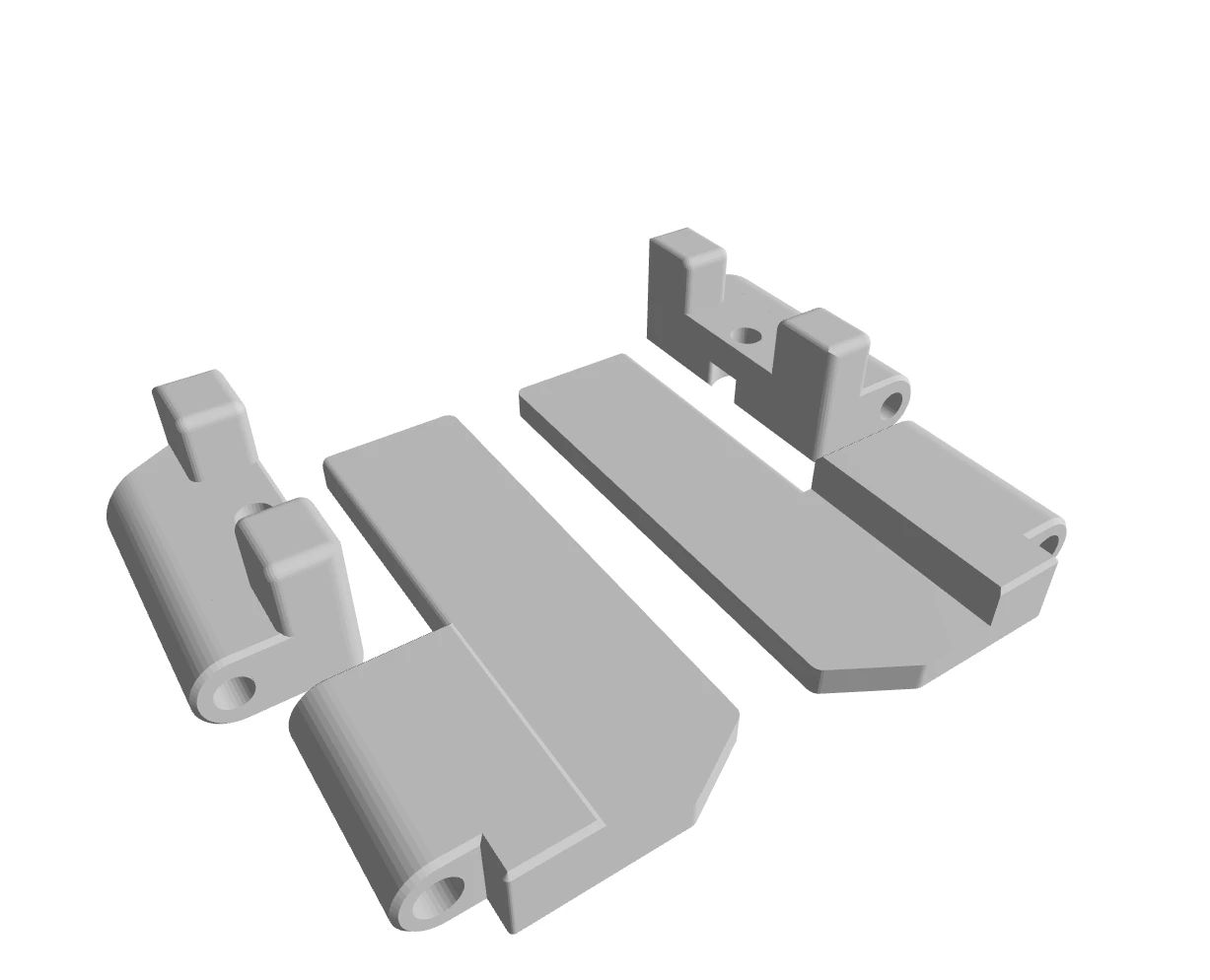

Open large \| Close	LDOVoron2/STLs/LDO Door/screw_hinge_x3.stl	3 ☐☐☐
Open large \| Close	LDOVoron2/STLs/exhaust_cover.stl	1 ☐
Open large \| Close	LDOVoron2/STLs/handlebar_spacer_x4.stl	4 ☐☐☐☐

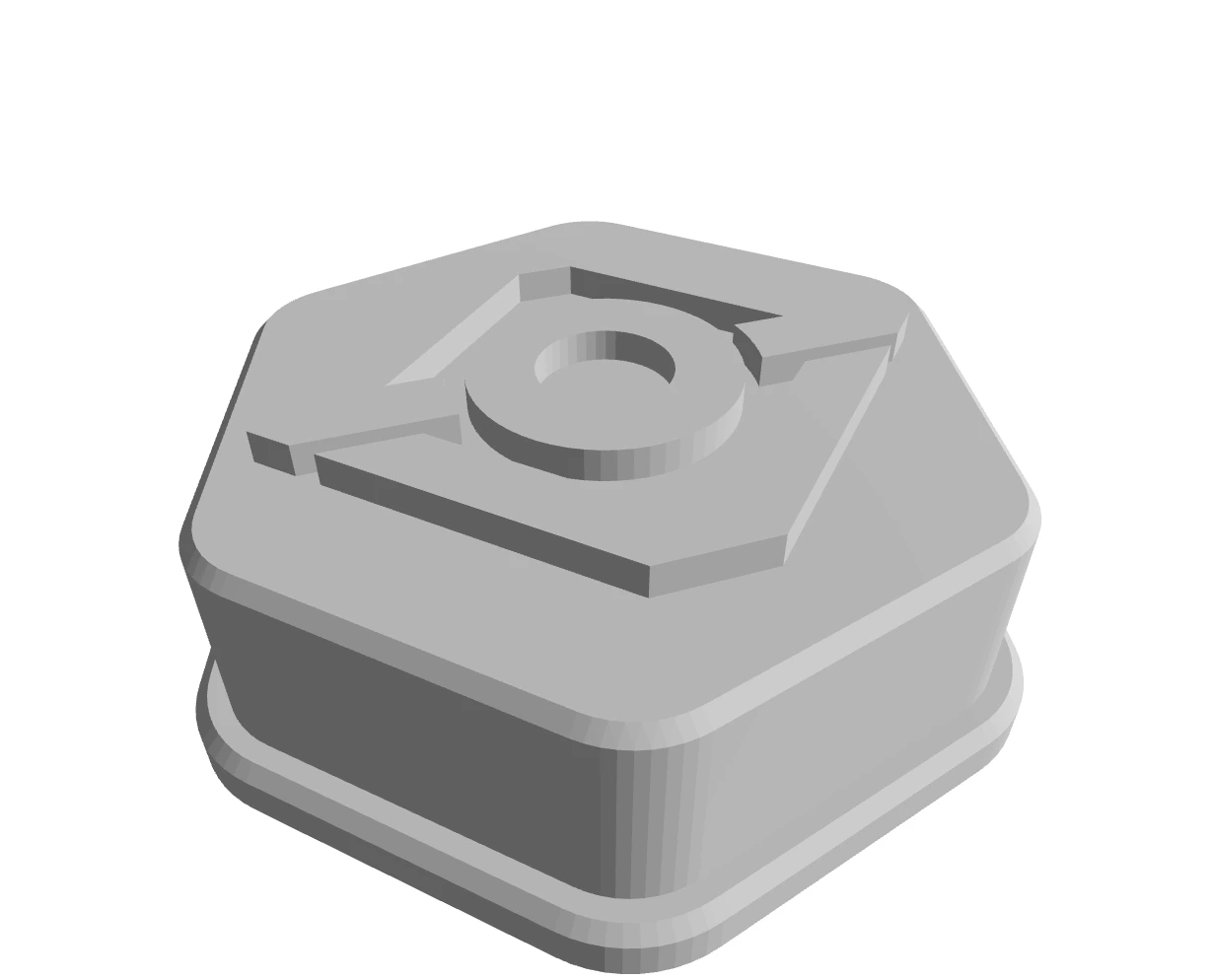

Open large \| Close	LDOVoron2/STLs/ldo_bestagon_insert.stl	1 ☐
Open large \| Close	LDOVoron2/STLs/led_fan_pcb_spacer_x2.stl	2 ☐☐
Open large \| Close	LDOVoron2/STLs/nozzle_probe_ldo.stl	1 ☐
Open large \| Close	LDOVoron2/STLs/z_belt_cover_a_led.stl	1 ☐
Open large \| Close	LDOVoron2/STLs/z_rail_stop_x4.stl	4 ☐☐☐☐

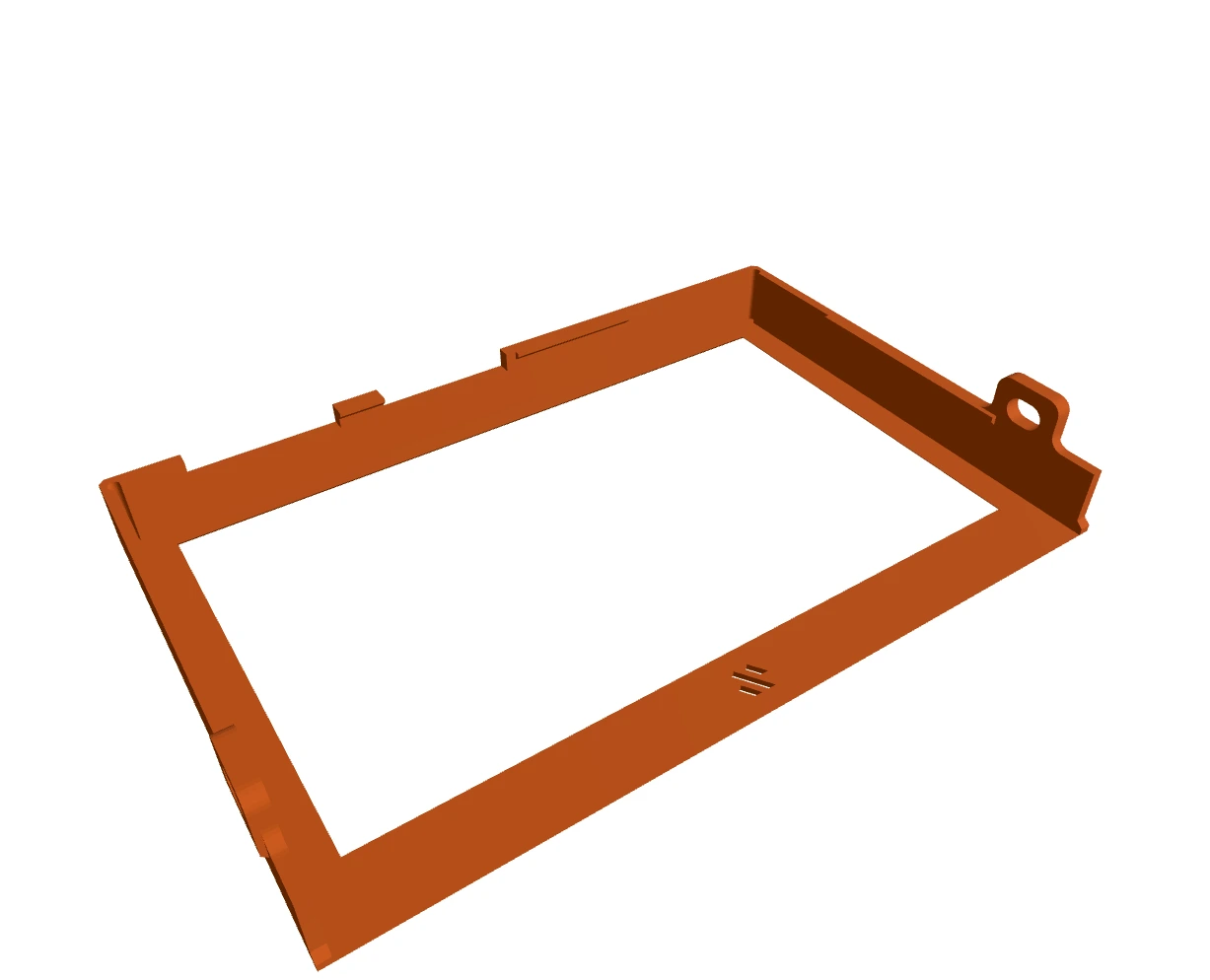

Open large \| Close	LDOVoronTrident/STLs/BTT Pi TFT4.3 Mount/[a]_faceplate.stl	1 ☐

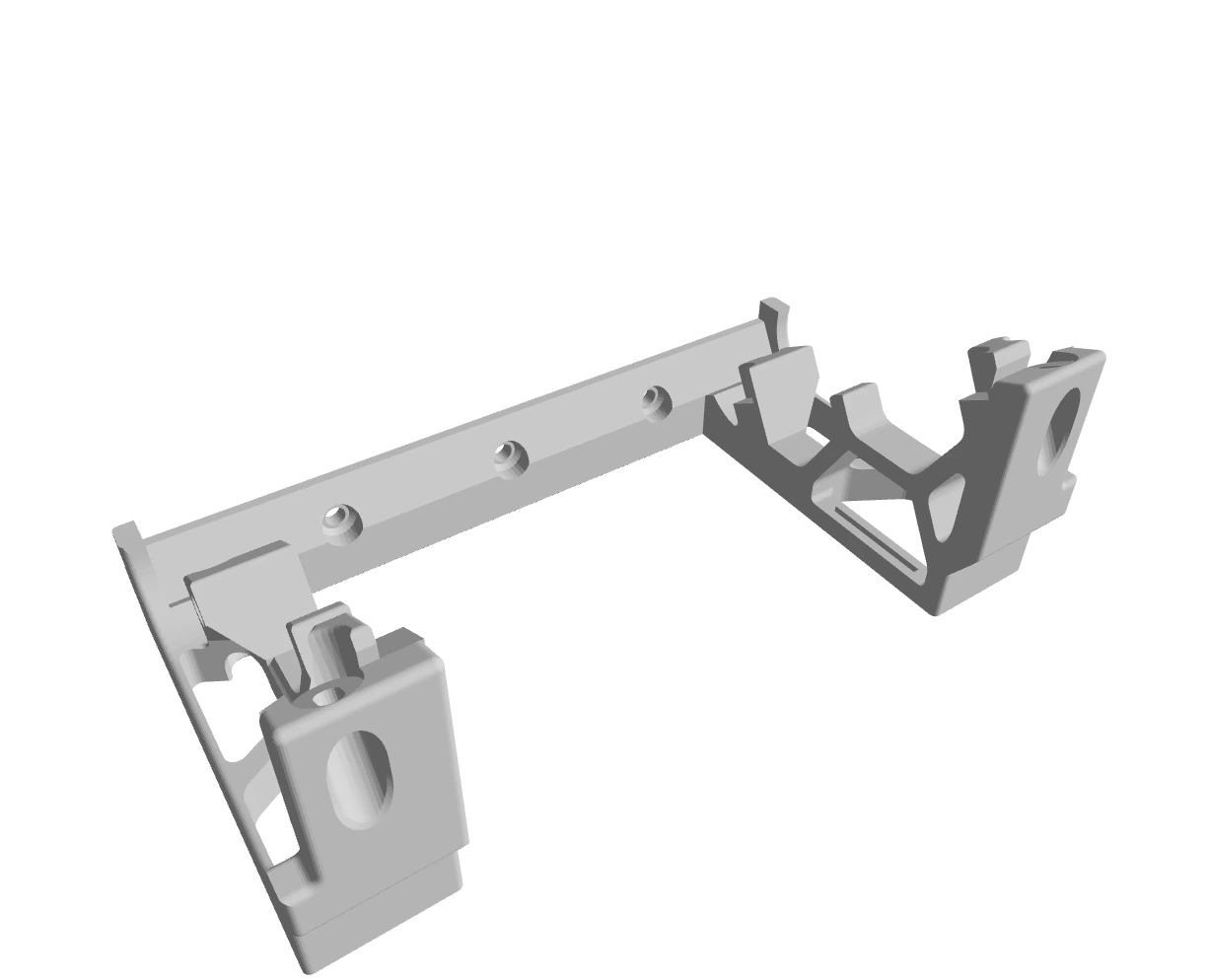

Open large \| Close	LDOVoronTrident/STLs/BTT Pi TFT4.3 Mount/mount.stl	1 ☐
Open large \| Close	LDOVoronTrident/STLs/bed_wago_mount.stl	1 ☐
Open large \| Close	Leviathan/STLs/Leviathan_bracket_set.stl	1 ☐
Open large \| Close	Nitehawk-SB/STLs/cw2_captive_pcb_cover.stl	1 ☐
Open large \| Close	Nitehawk-SB/STLs/usb_adapter_mount.stl	1 ☐

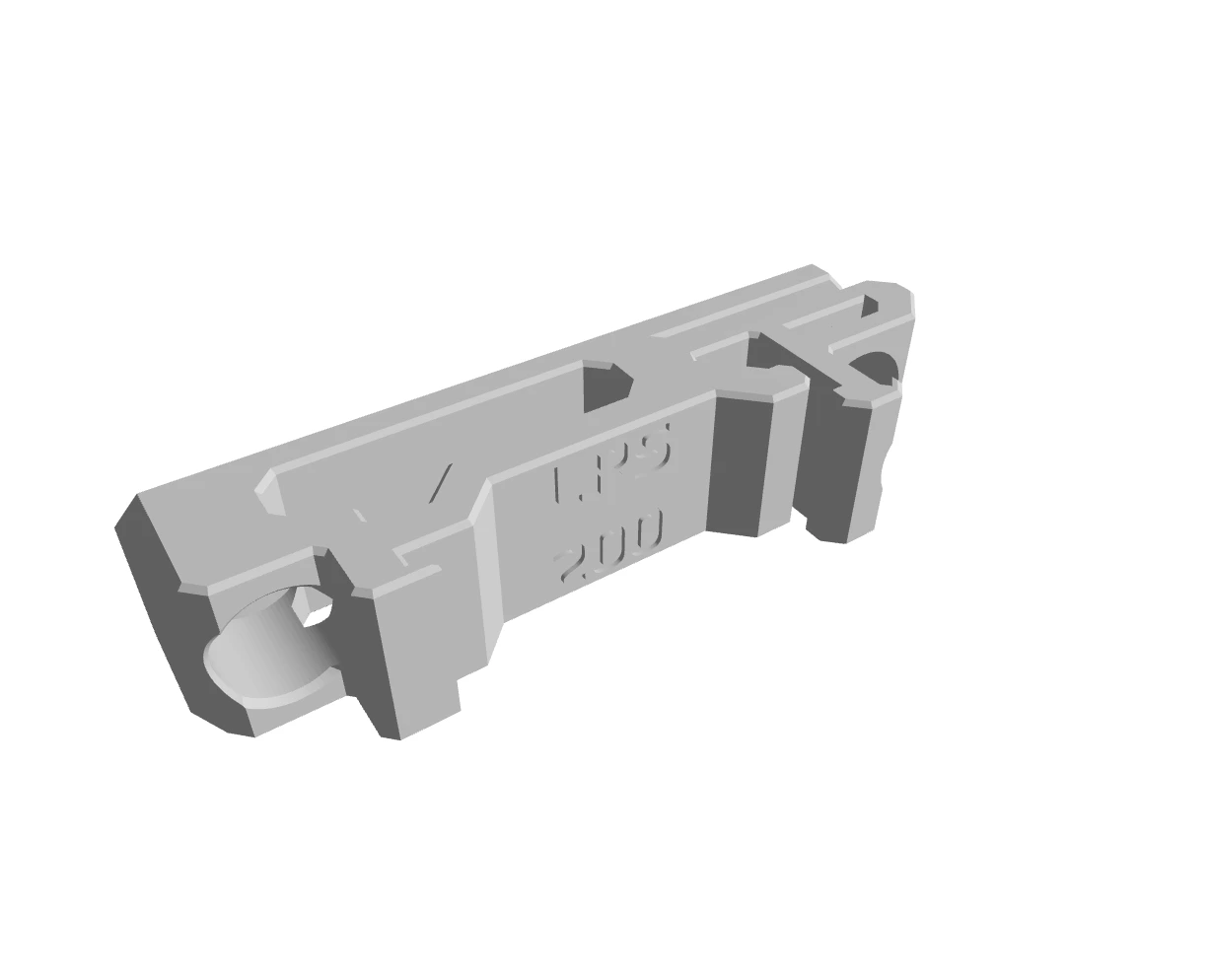

Open large \| Close	Voron-2/STLs/Electronics_Bay/lrs_200_psu_bracket_x2.stl	2 ☐☐
Open large \| Close	Voron-2/STLs/Electronics_Bay/pcb_din_clip_x3.stl	3 ☐☐☐
Open large \| Close	Voron-2/STLs/Electronics_Bay/wago_221-415_mount_3by5.stl	1 ☐

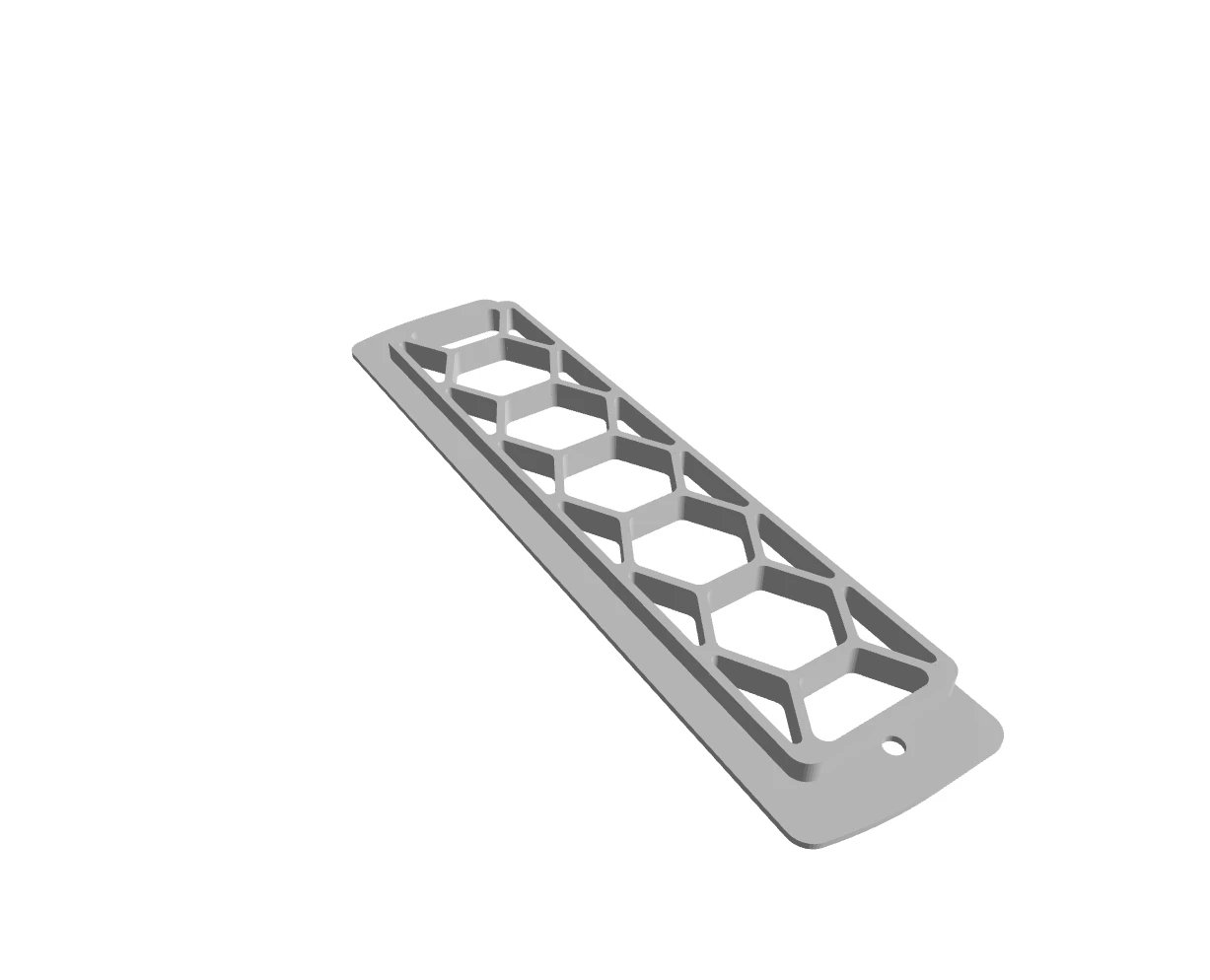

Open large \| Close	Voron-2/STLs/Exhaust_Filter/exhaust_filter_grill.stl	1 ☐

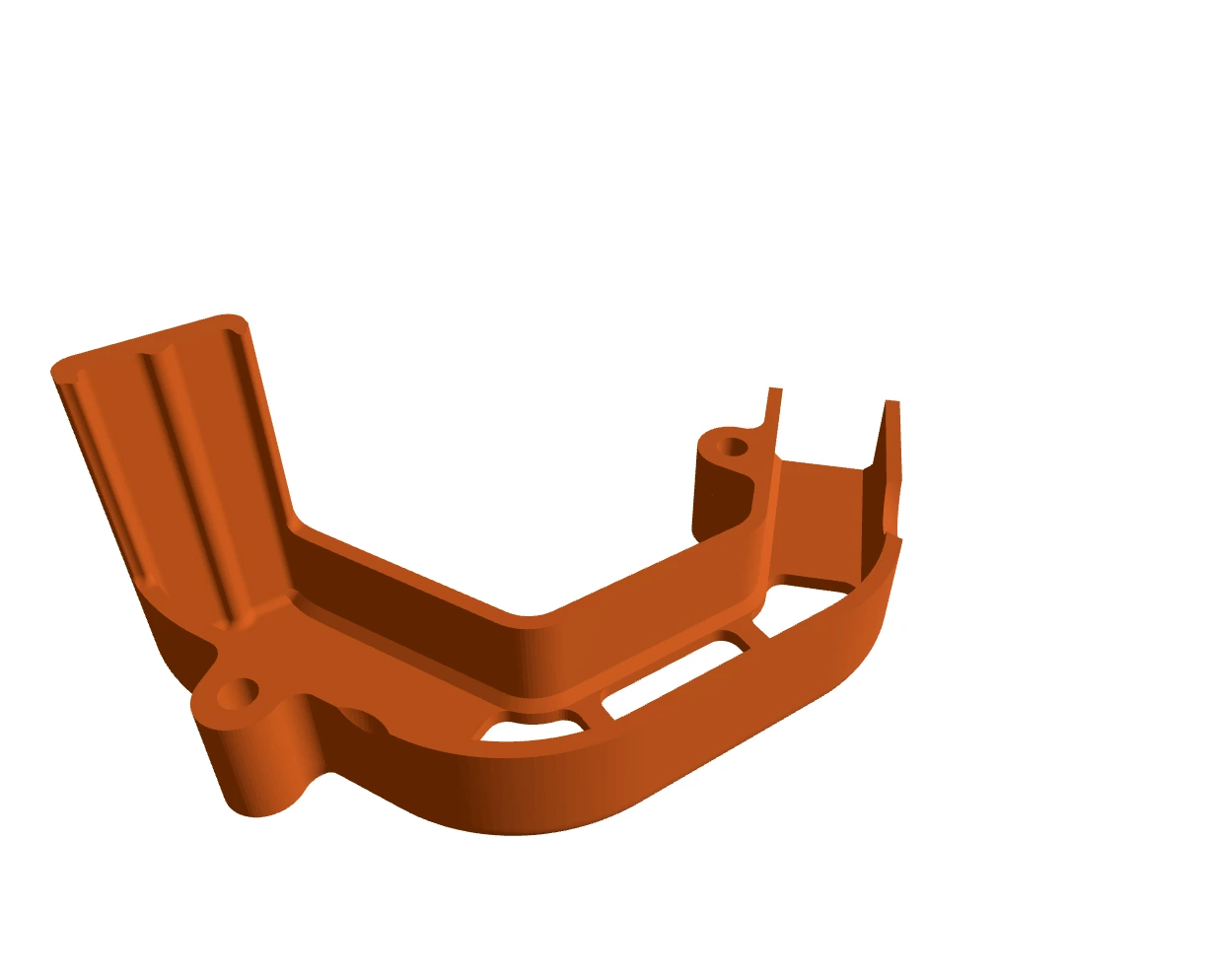

Open large \| Close	Voron-2/STLs/Gantry/AB_Drive_Units/[a]_cable_cover.stl	1 ☐

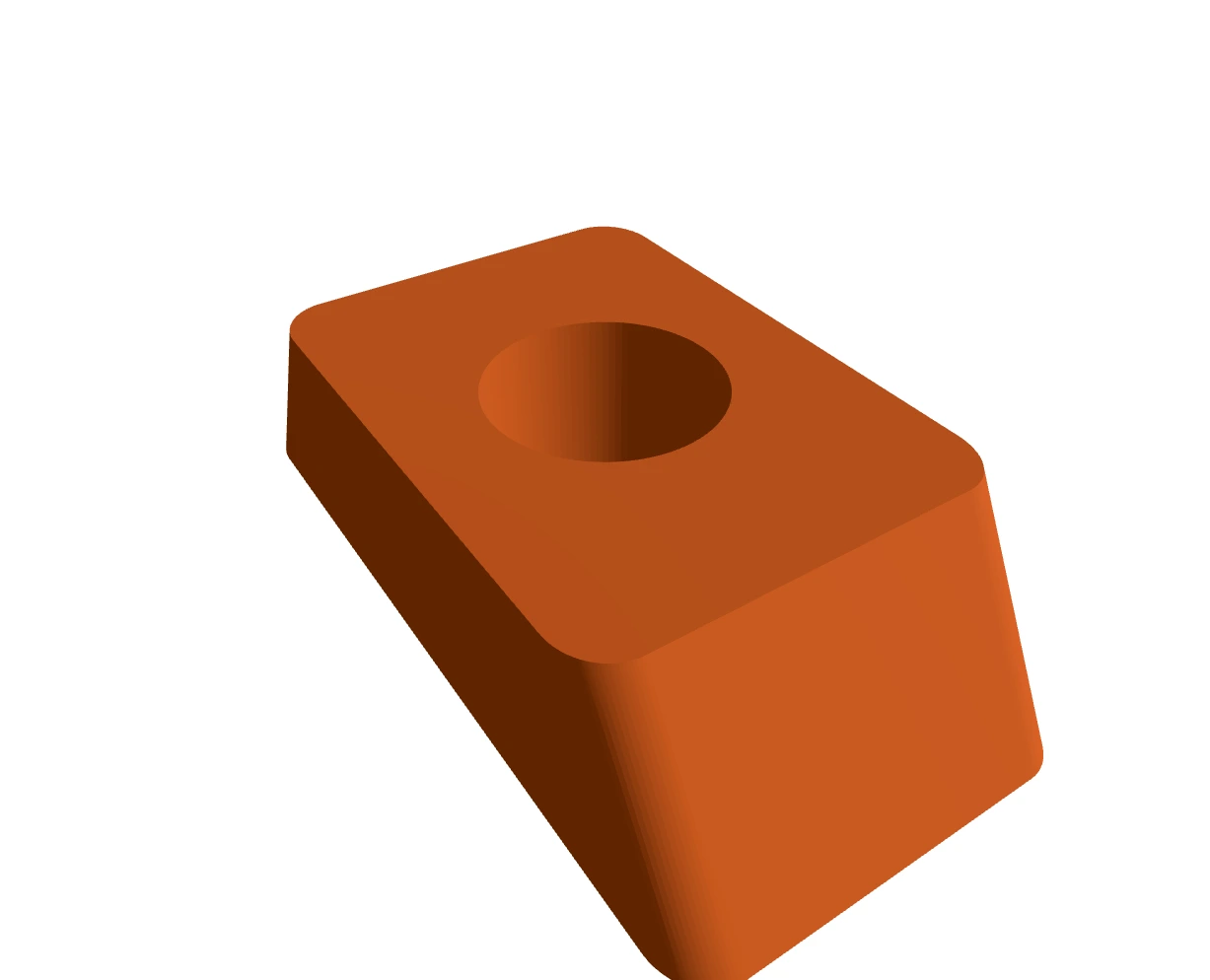

Open large \| Close	Voron-2/STLs/Gantry/AB_Drive_Units/[a]_z_chain_retainer_bracket_x2.stl	2 ☐☐

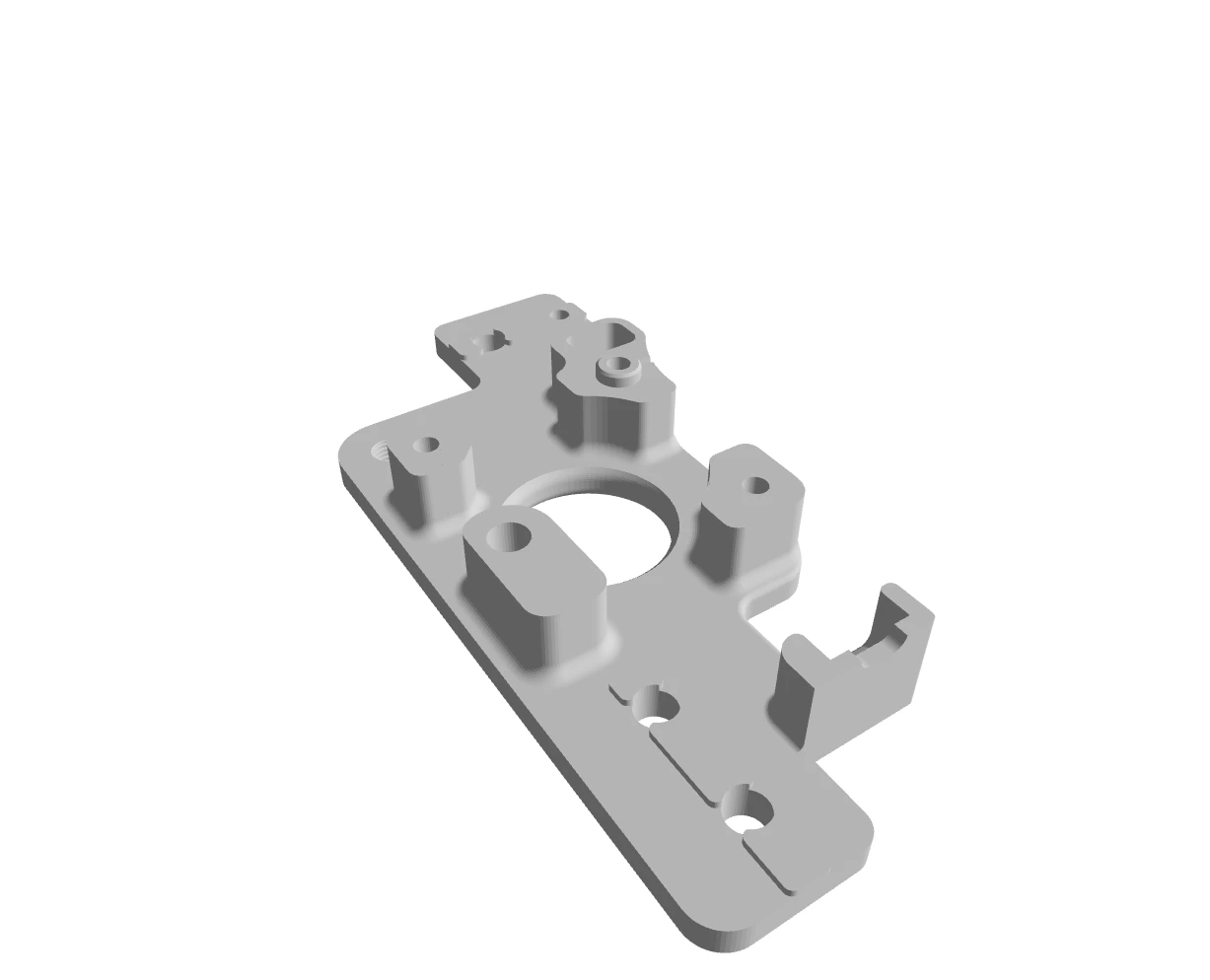

Open large \| Close	Voron-2/STLs/Gantry/AB_Drive_Units/a_drive_frame_lower.stl	1 ☐

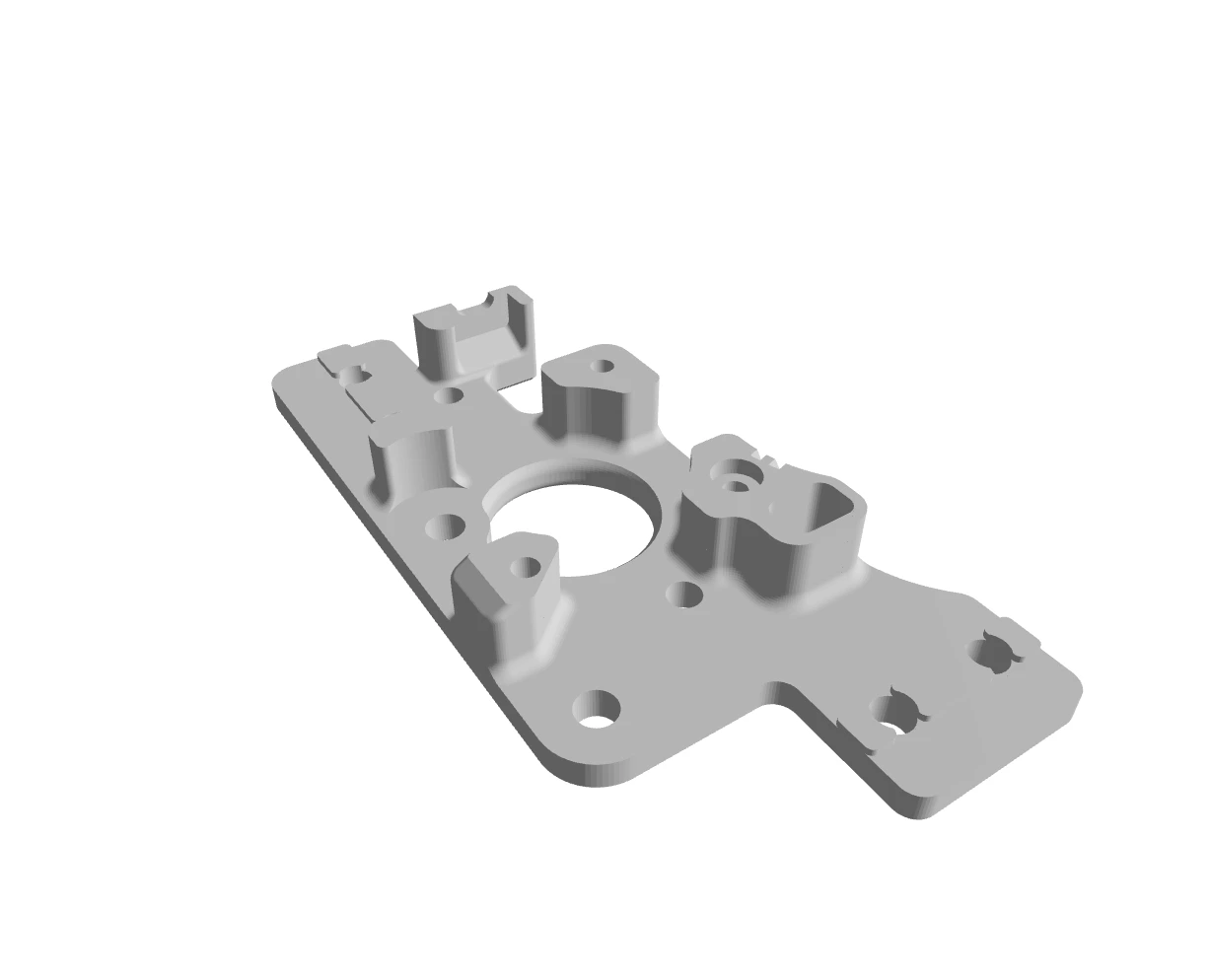

Open large \| Close	Voron-2/STLs/Gantry/AB_Drive_Units/a_drive_frame_upper.stl	1 ☐

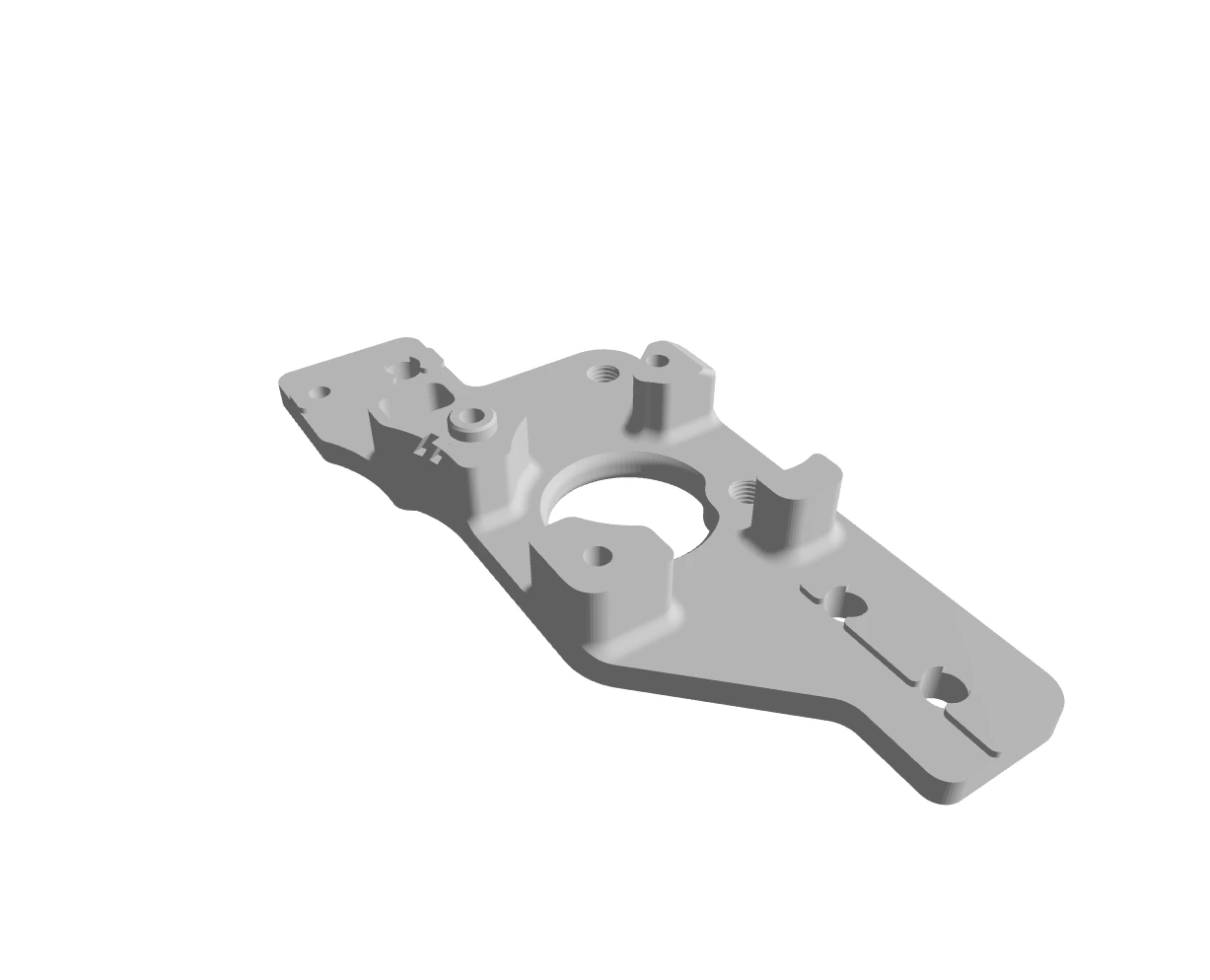

Open large \| Close	Voron-2/STLs/Gantry/AB_Drive_Units/b_drive_frame_lower.stl	1 ☐

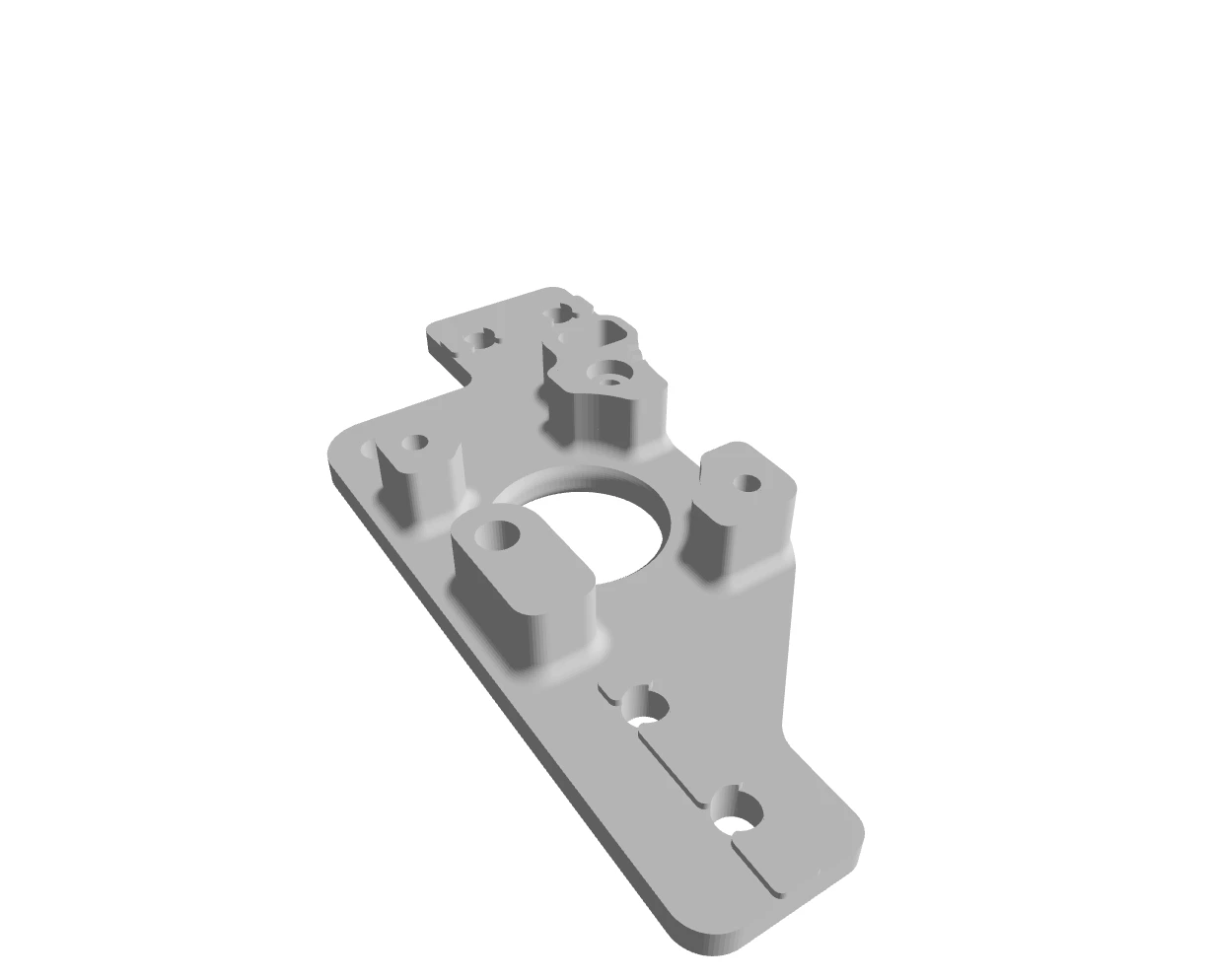

Open large \| Close	Voron-2/STLs/Gantry/AB_Drive_Units/b_drive_frame_upper.stl	1 ☐

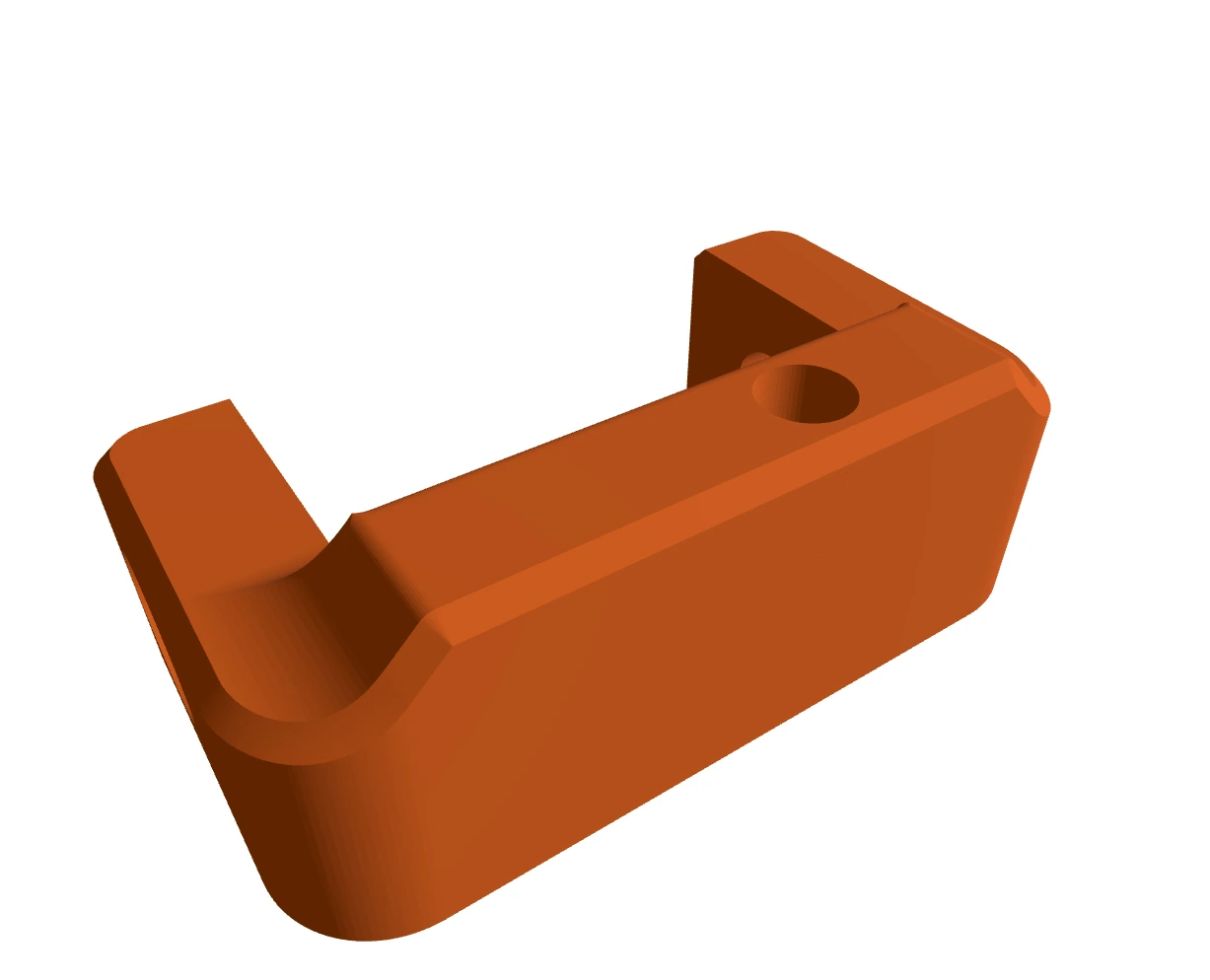

Open large \| Close	Voron-2/STLs/Gantry/Front_Idlers/[a]_tensioner_left.stl	1 ☐

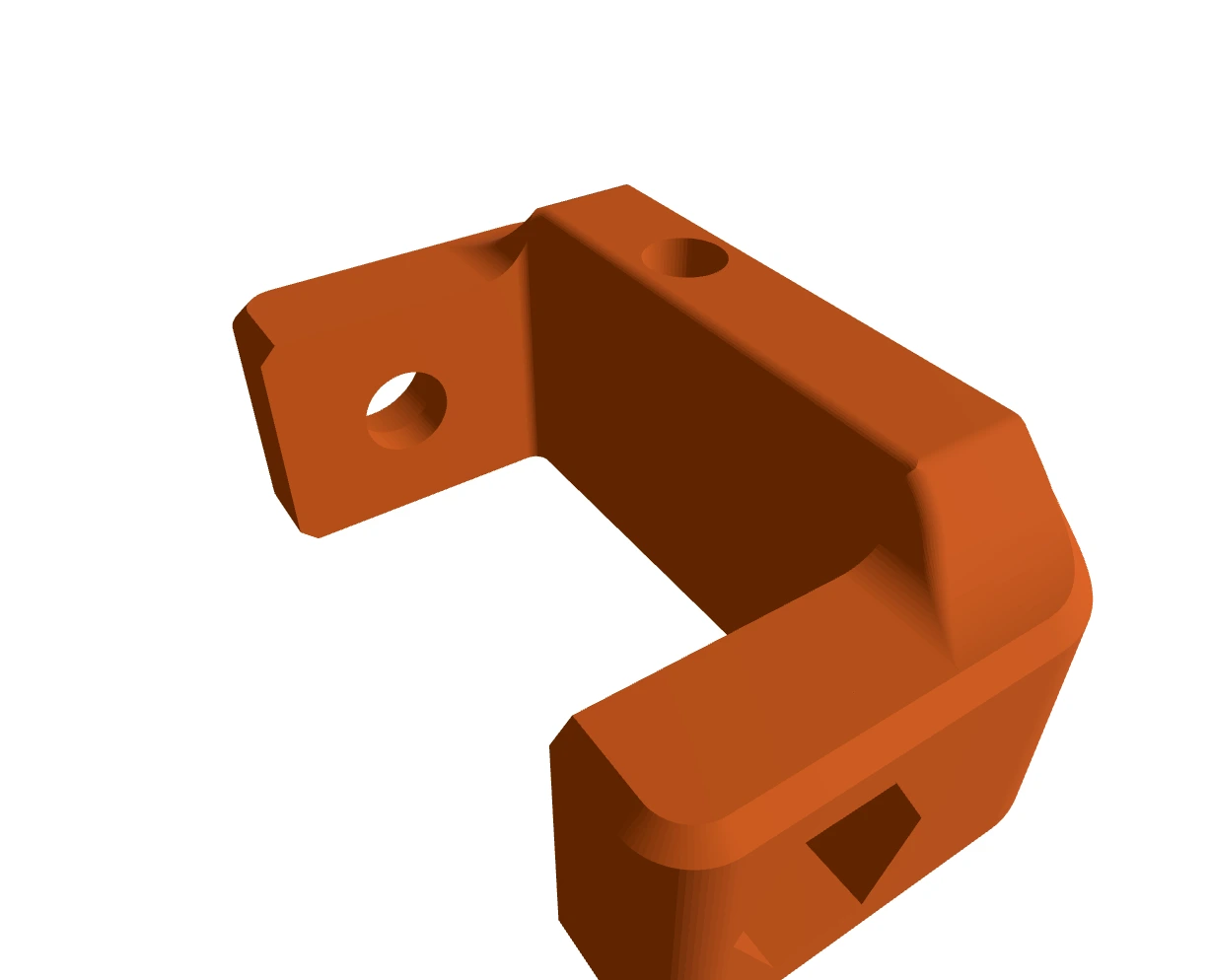

Open large \| Close	Voron-2/STLs/Gantry/Front_Idlers/[a]_tensioner_right.stl	1 ☐

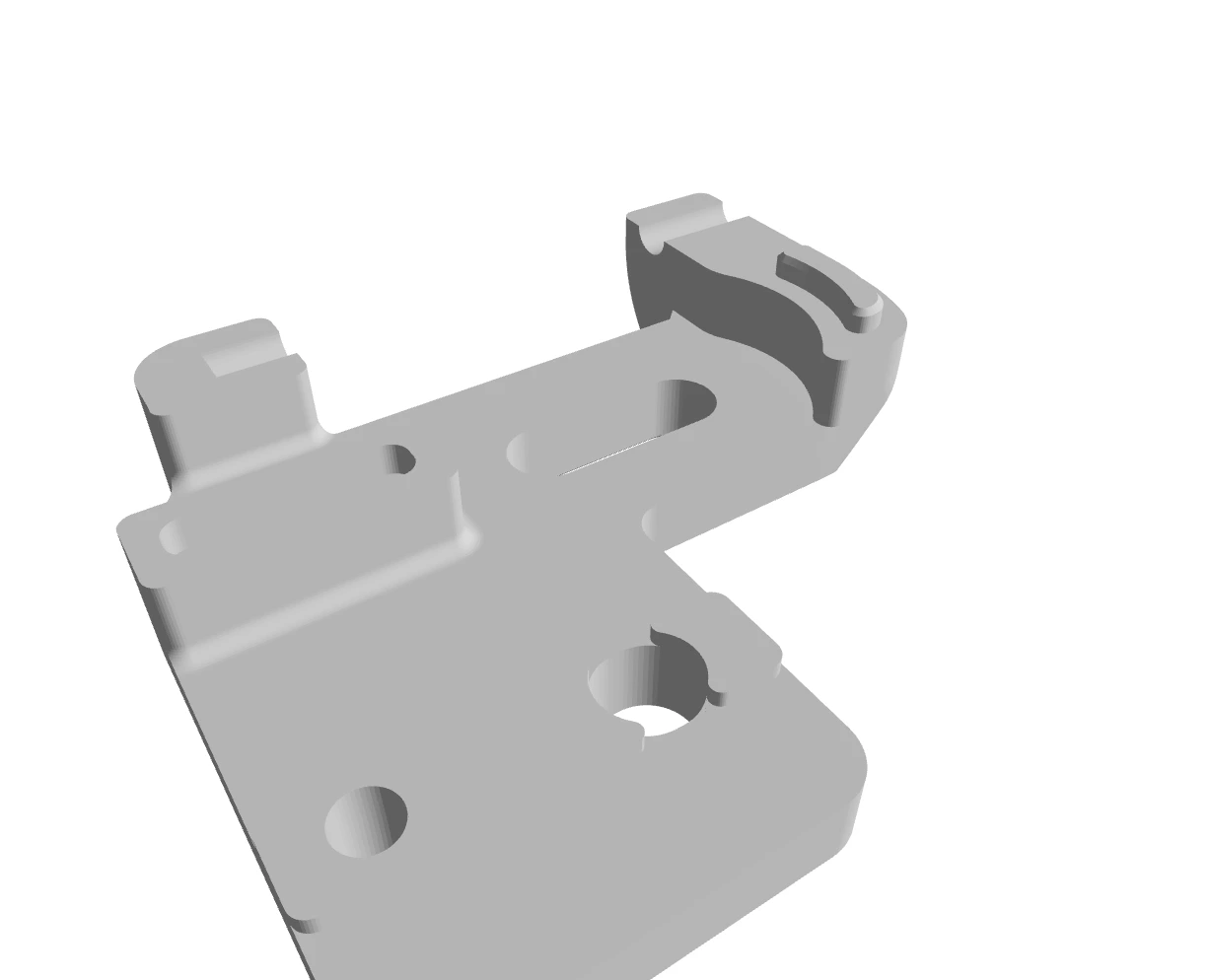

Open large \| Close	Voron-2/STLs/Gantry/Front_Idlers/front_idler_left_lower.stl	1 ☐

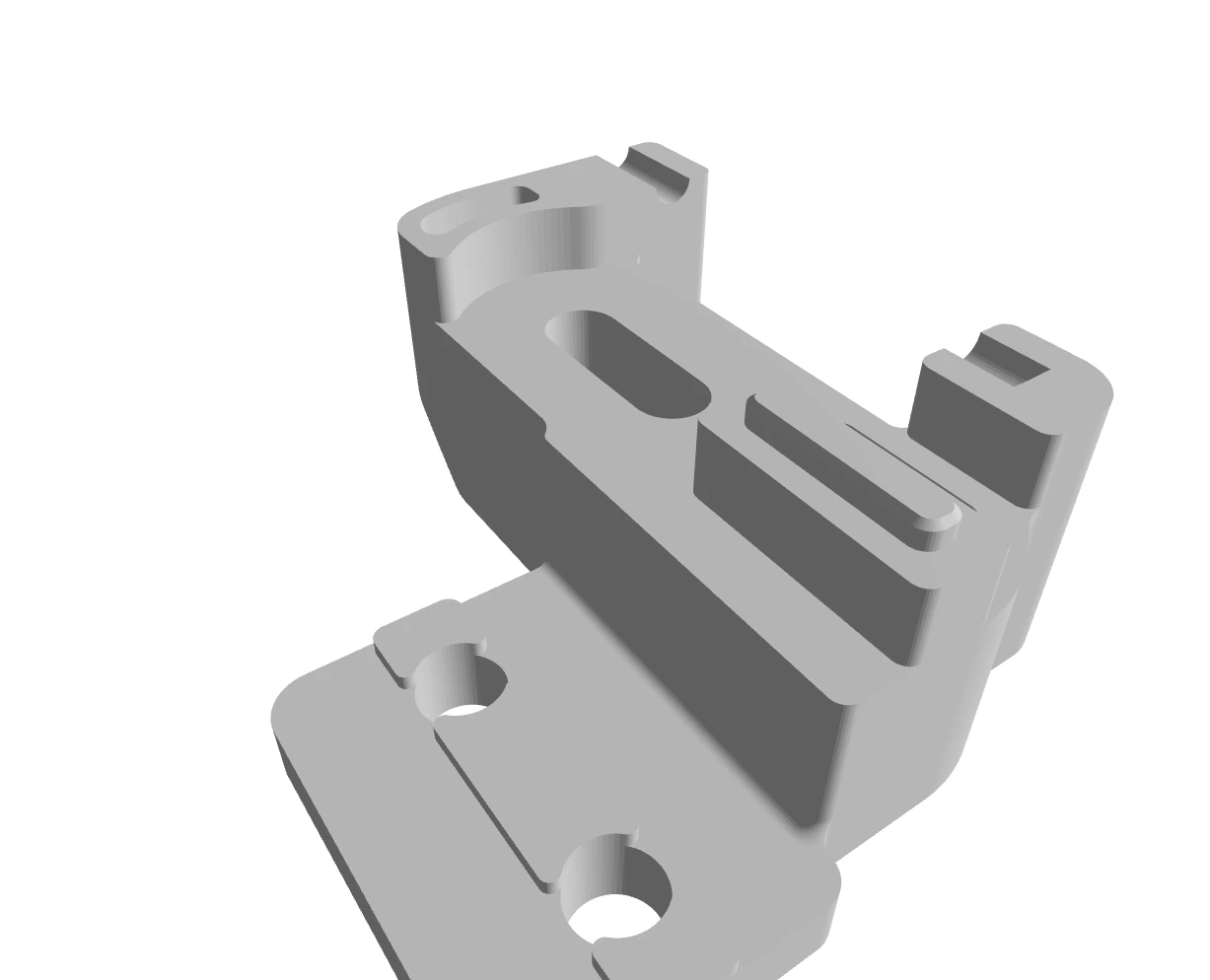

Open large \| Close	Voron-2/STLs/Gantry/Front_Idlers/front_idler_left_upper.stl	1 ☐

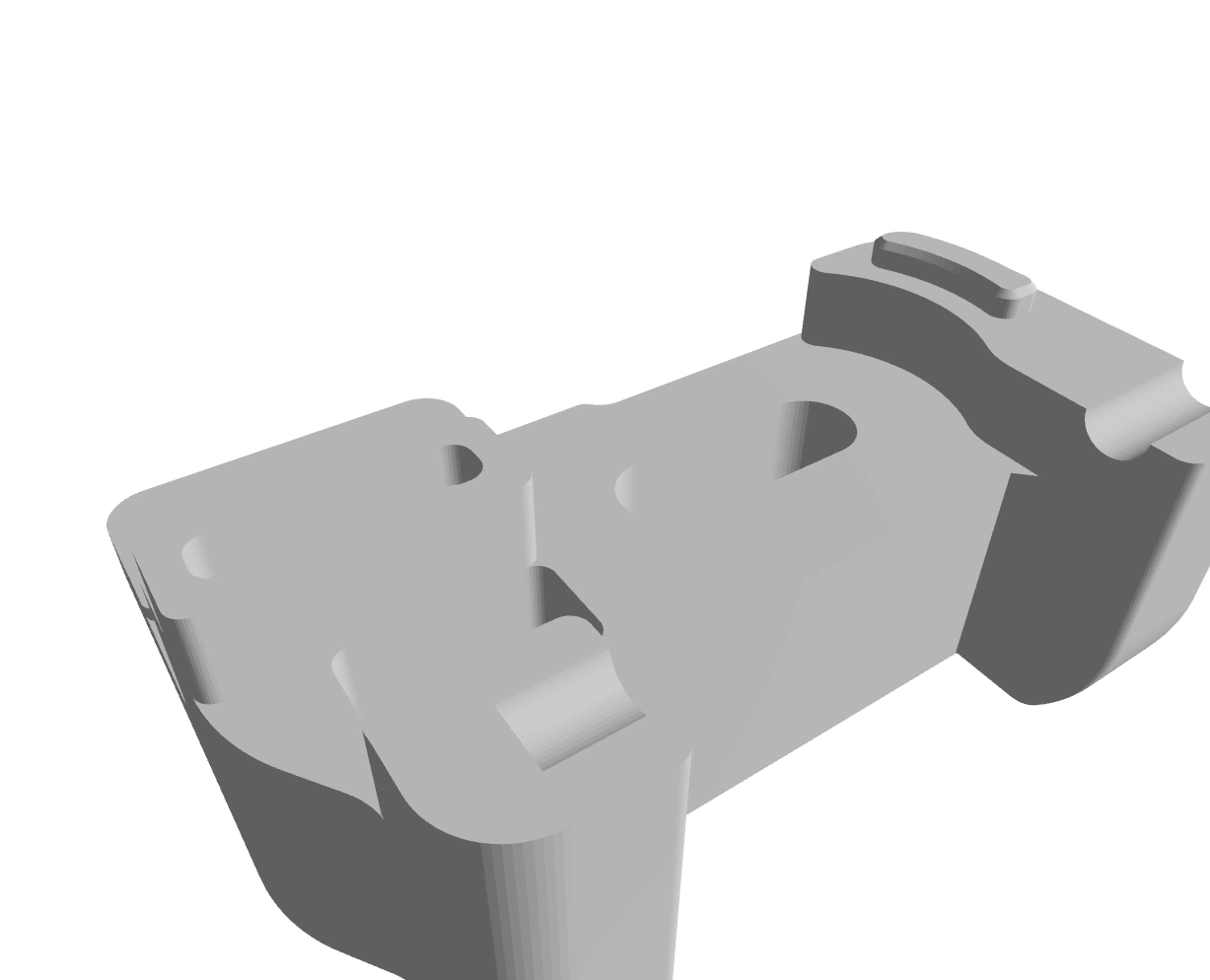

Open large \| Close	Voron-2/STLs/Gantry/Front_Idlers/front_idler_right_lower.stl	1 ☐

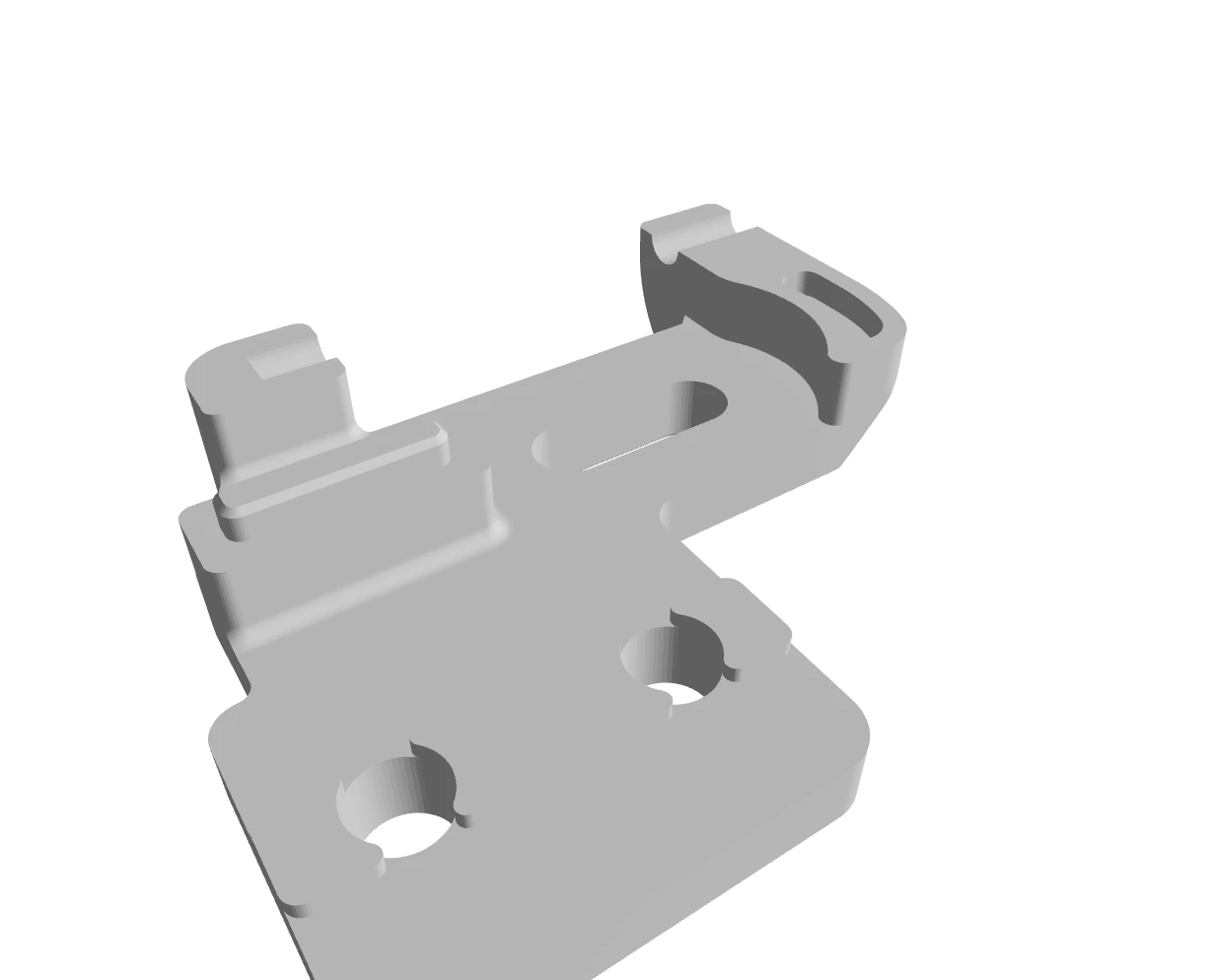

Open large \| Close	Voron-2/STLs/Gantry/Front_Idlers/front_idler_right_upper.stl	1 ☐

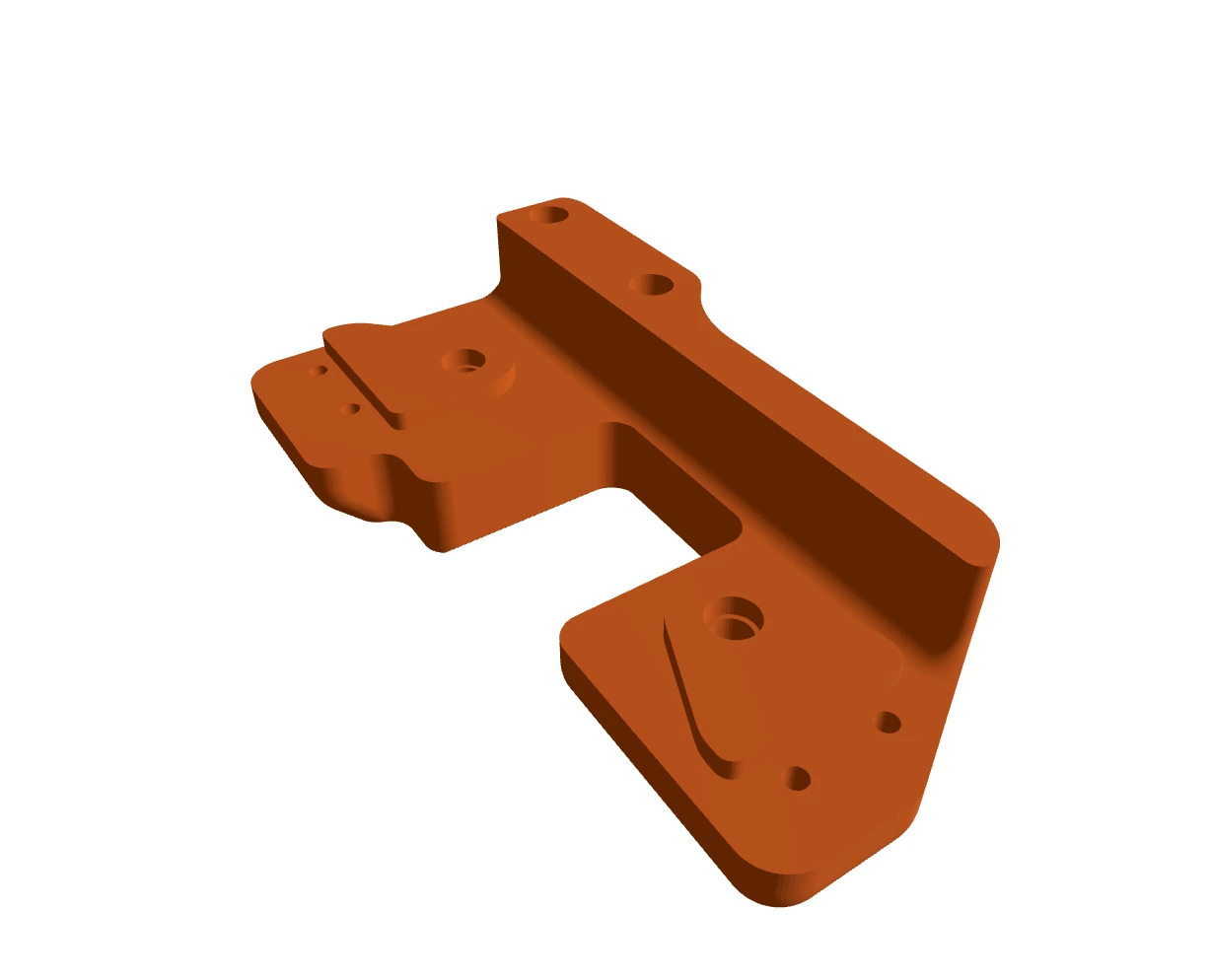

Open large \| Close	Voron-2/STLs/Gantry/X_Axis/XY_Joints/[a]_endstop_pod_D2F_switch.stl	1 ☐

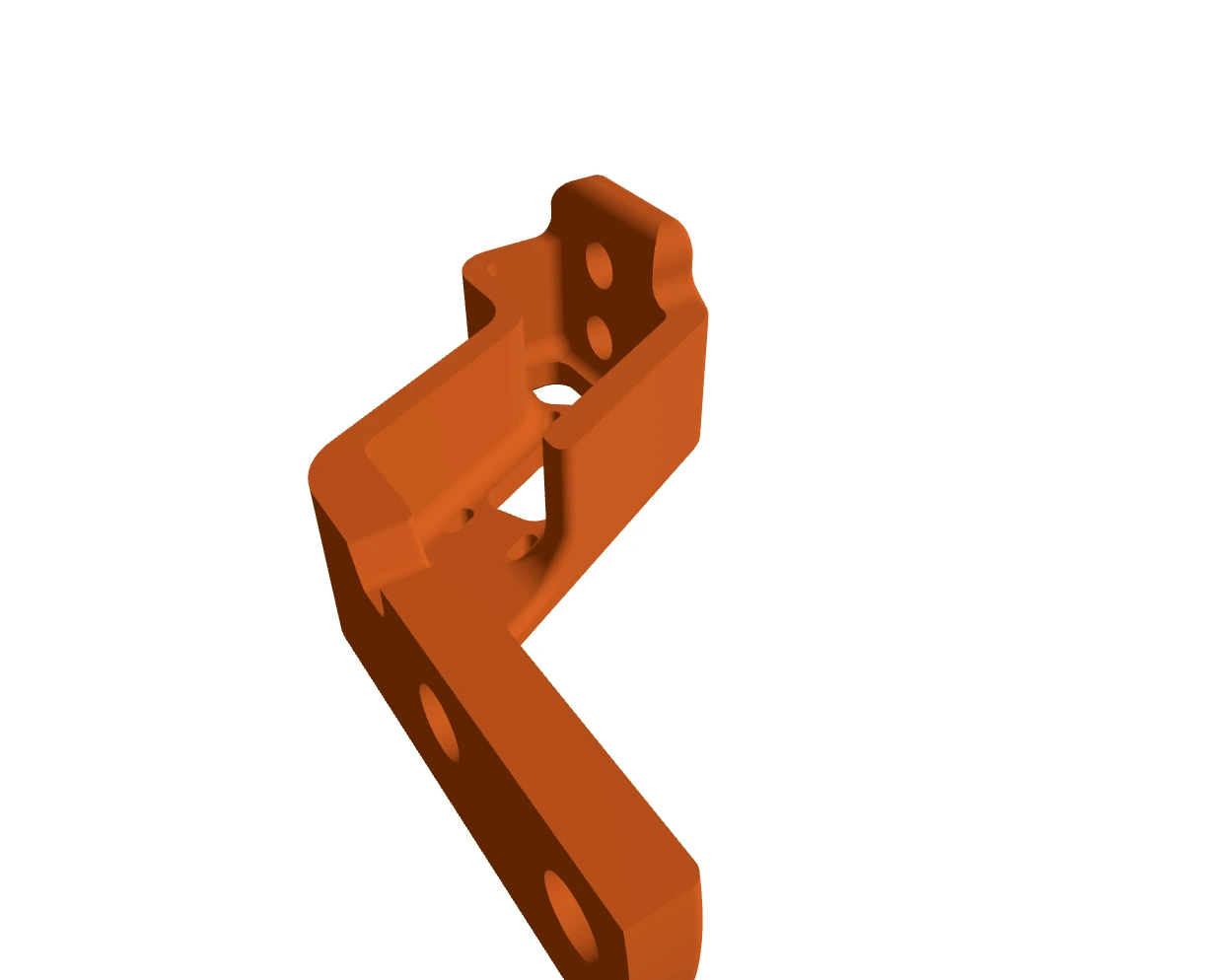

Open large \| Close	Voron-2/STLs/Gantry/X_Axis/XY_Joints/[a]_xy_joint_cable_bridge_2hole.stl	1 ☐

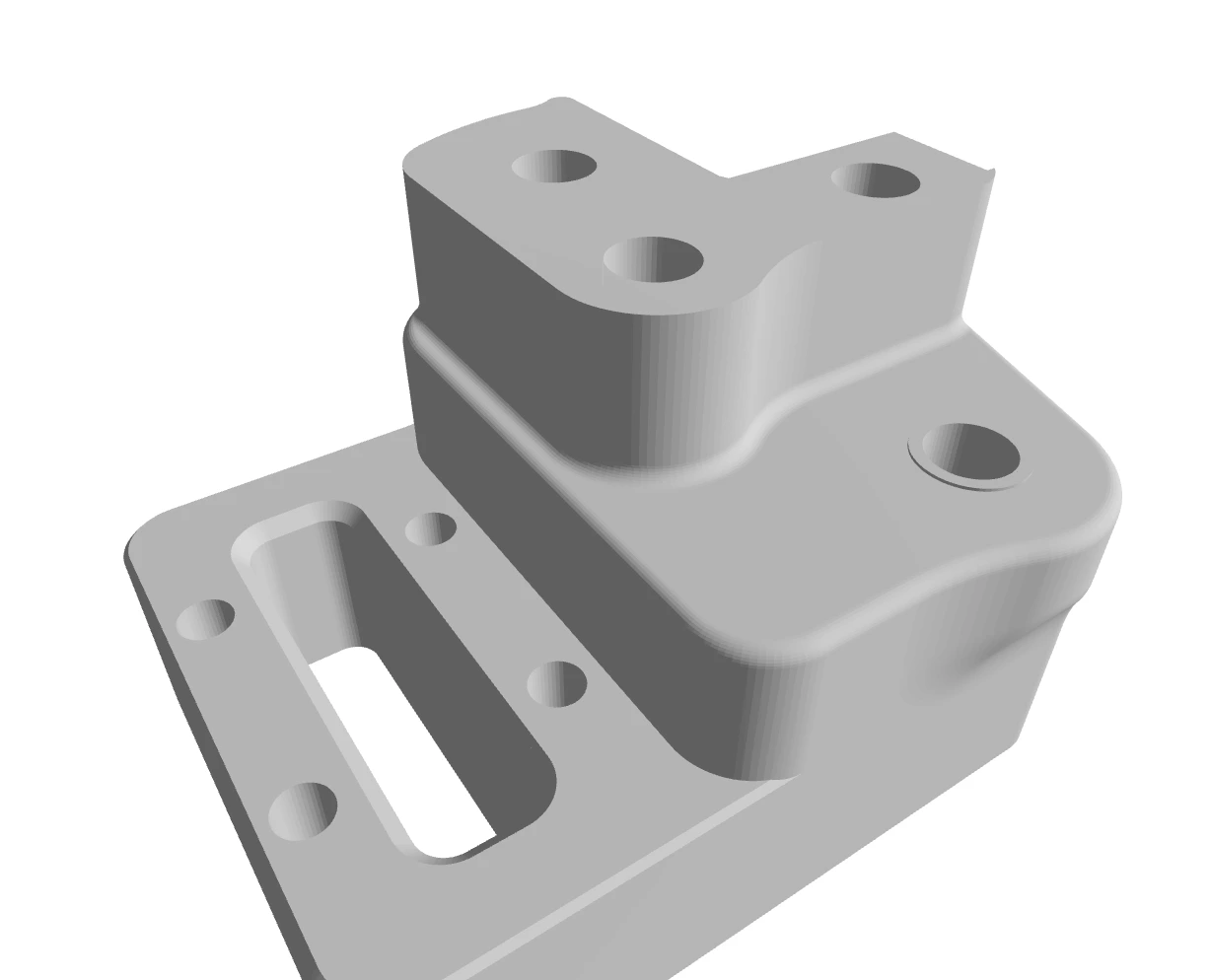

Open large \| Close	Voron-2/STLs/Gantry/X_Axis/XY_Joints/xy_joint_left_lower_MGN12.stl	1 ☐

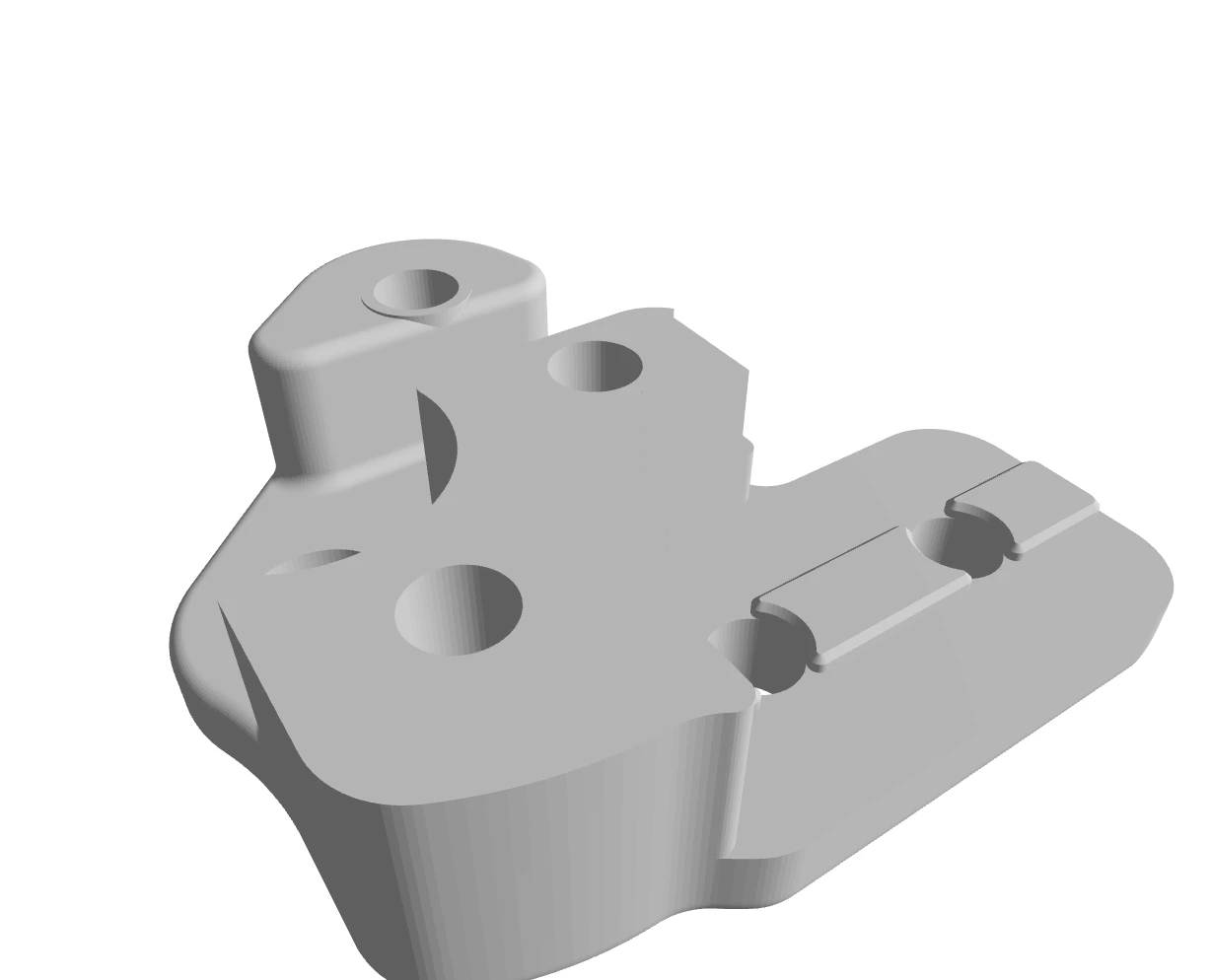

Open large \| Close	Voron-2/STLs/Gantry/X_Axis/XY_Joints/xy_joint_left_upper_MGN12.stl	1 ☐

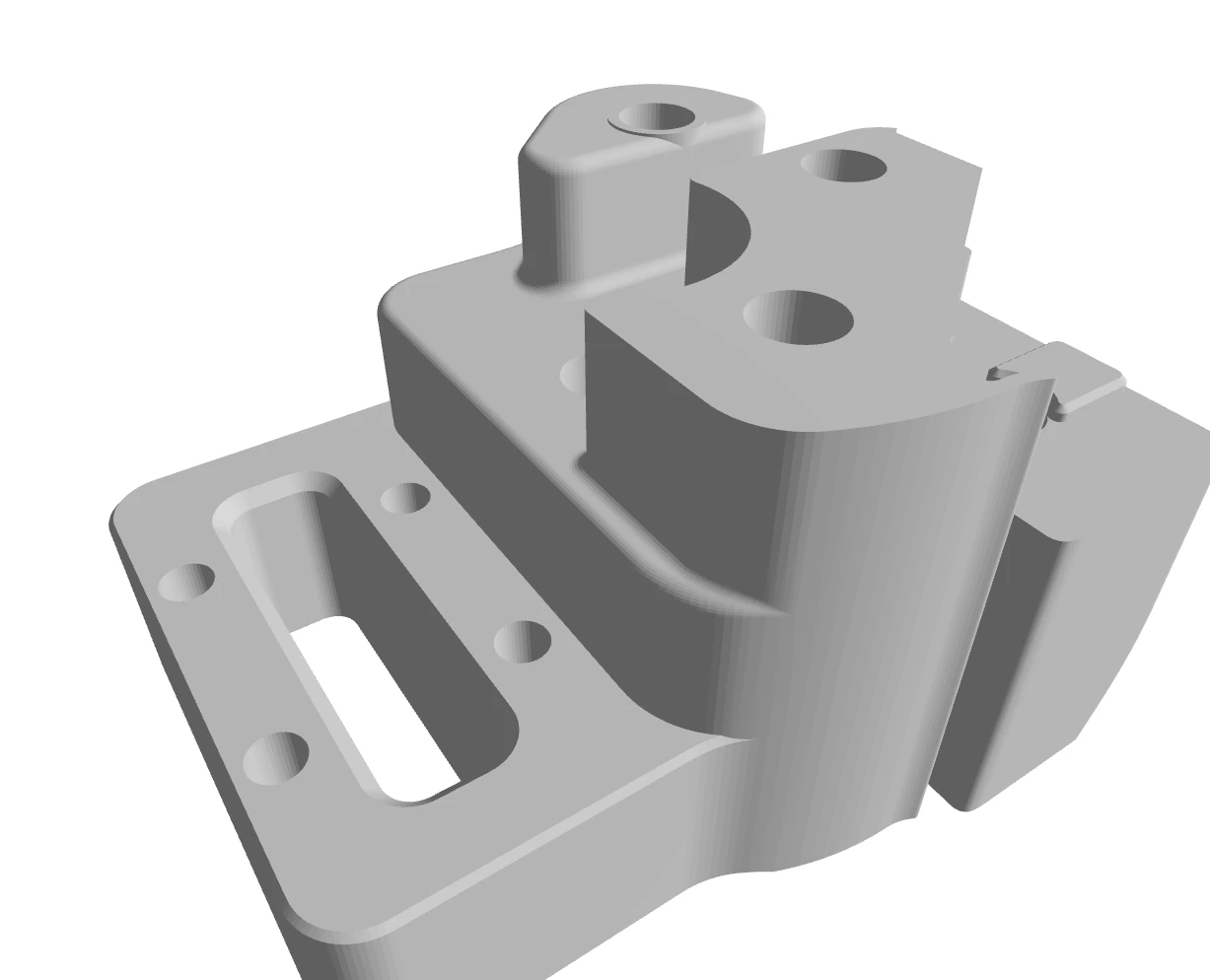

Open large \| Close	Voron-2/STLs/Gantry/X_Axis/XY_Joints/xy_joint_right_lower_MGN12.stl	1 ☐

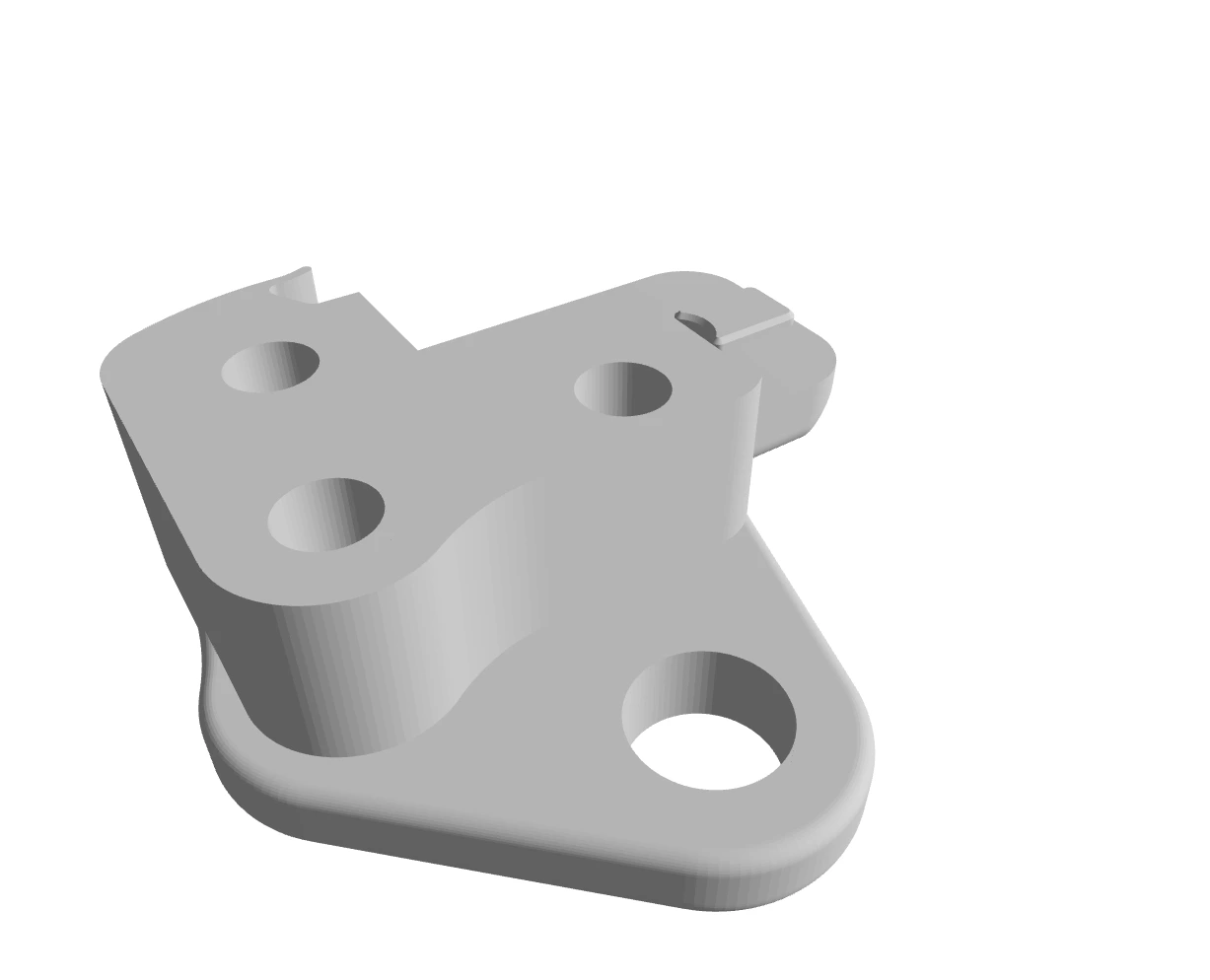

Open large \| Close	Voron-2/STLs/Gantry/X_Axis/XY_Joints/xy_joint_right_upper_MGN12.stl	1 ☐

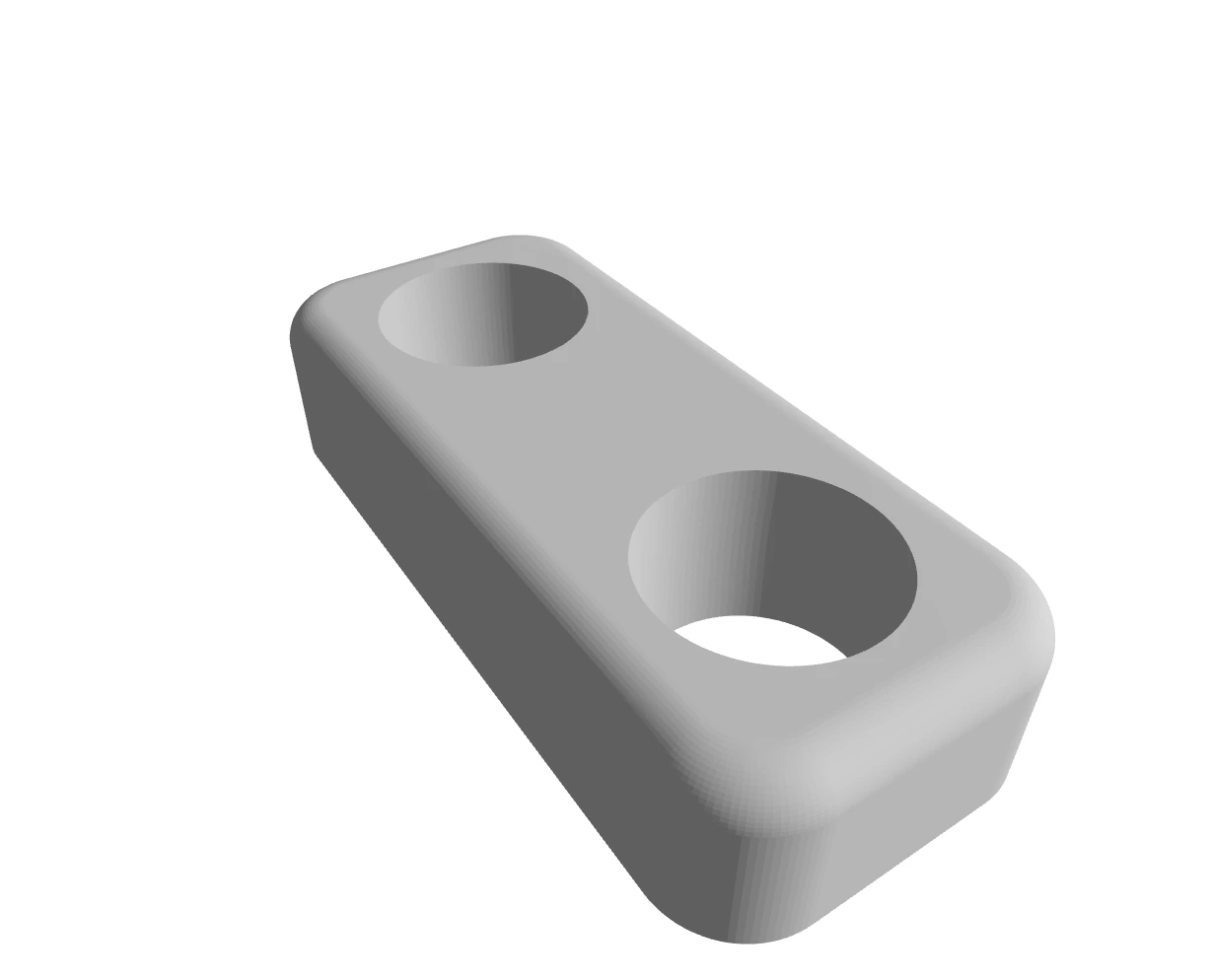

Open large \| Close	Voron-2/STLs/Gantry/X_Axis/X_Carriage/probe_retainer_bracket.stl	1 ☐

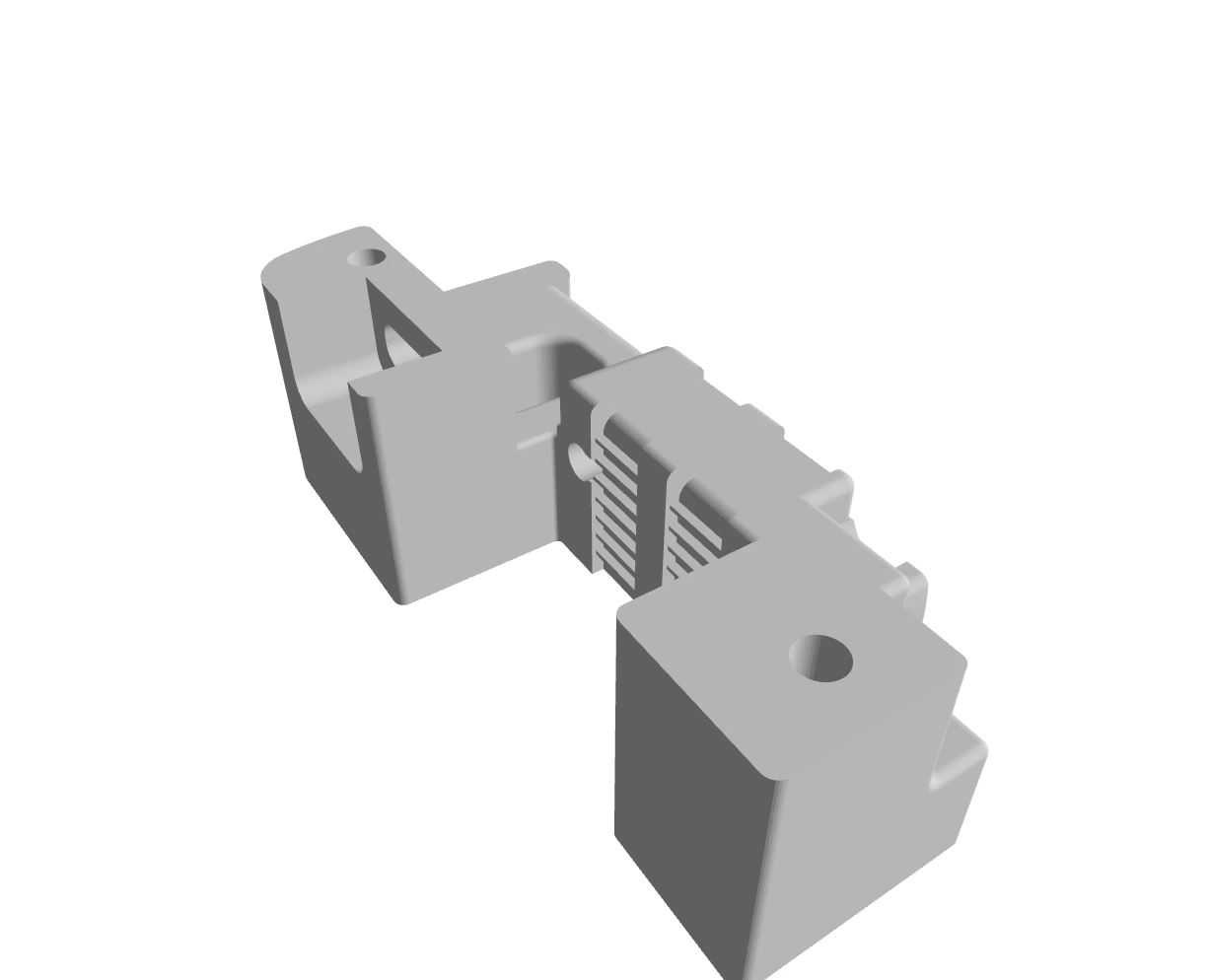

Open large \| Close	Voron-2/STLs/Gantry/X_Axis/X_Carriage/x_frame_V2TR_MGN12_left.stl	1 ☐

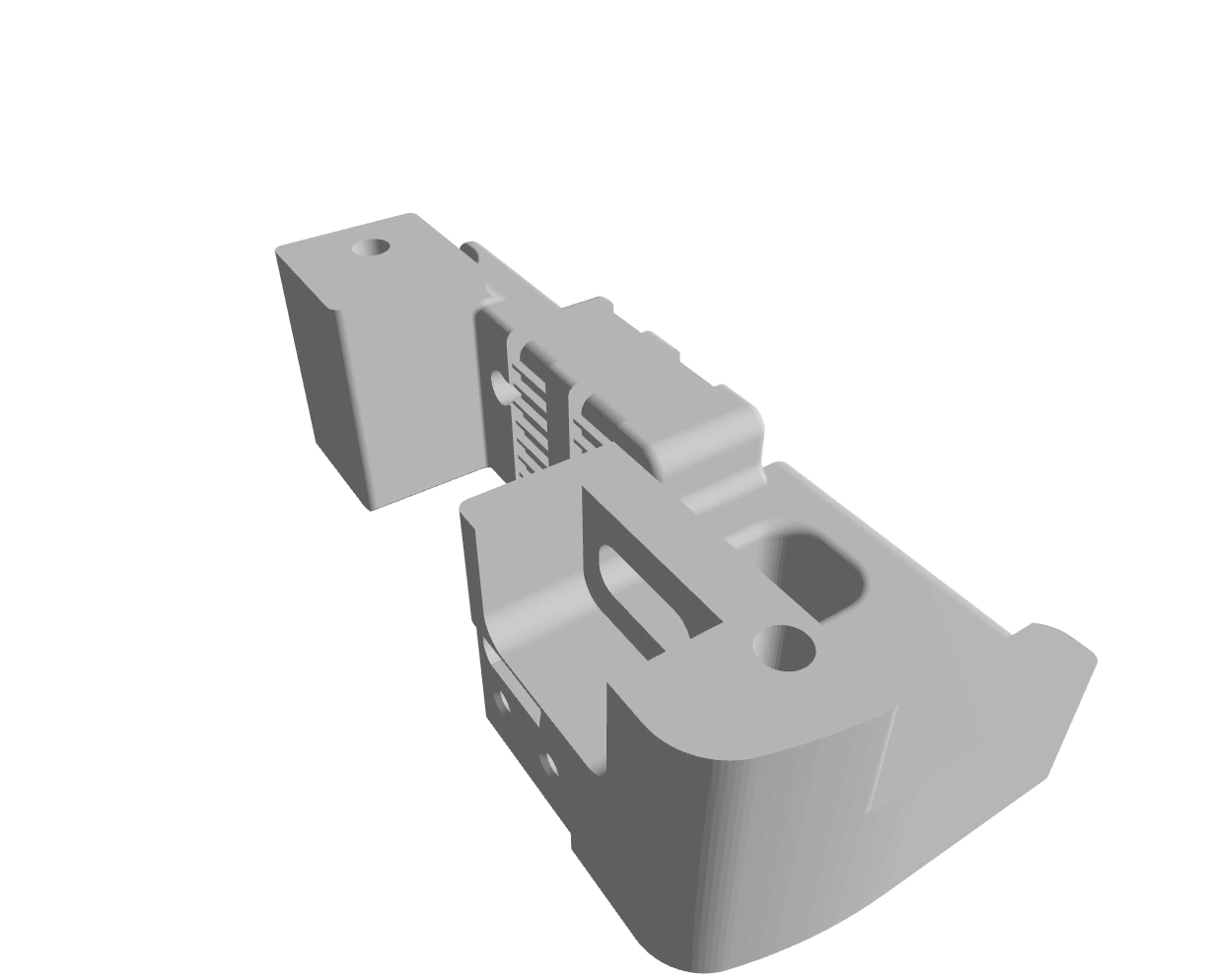

Open large \| Close	Voron-2/STLs/Gantry/X_Axis/X_Carriage/x_frame_V2TR_MGN12_right.stl	1 ☐

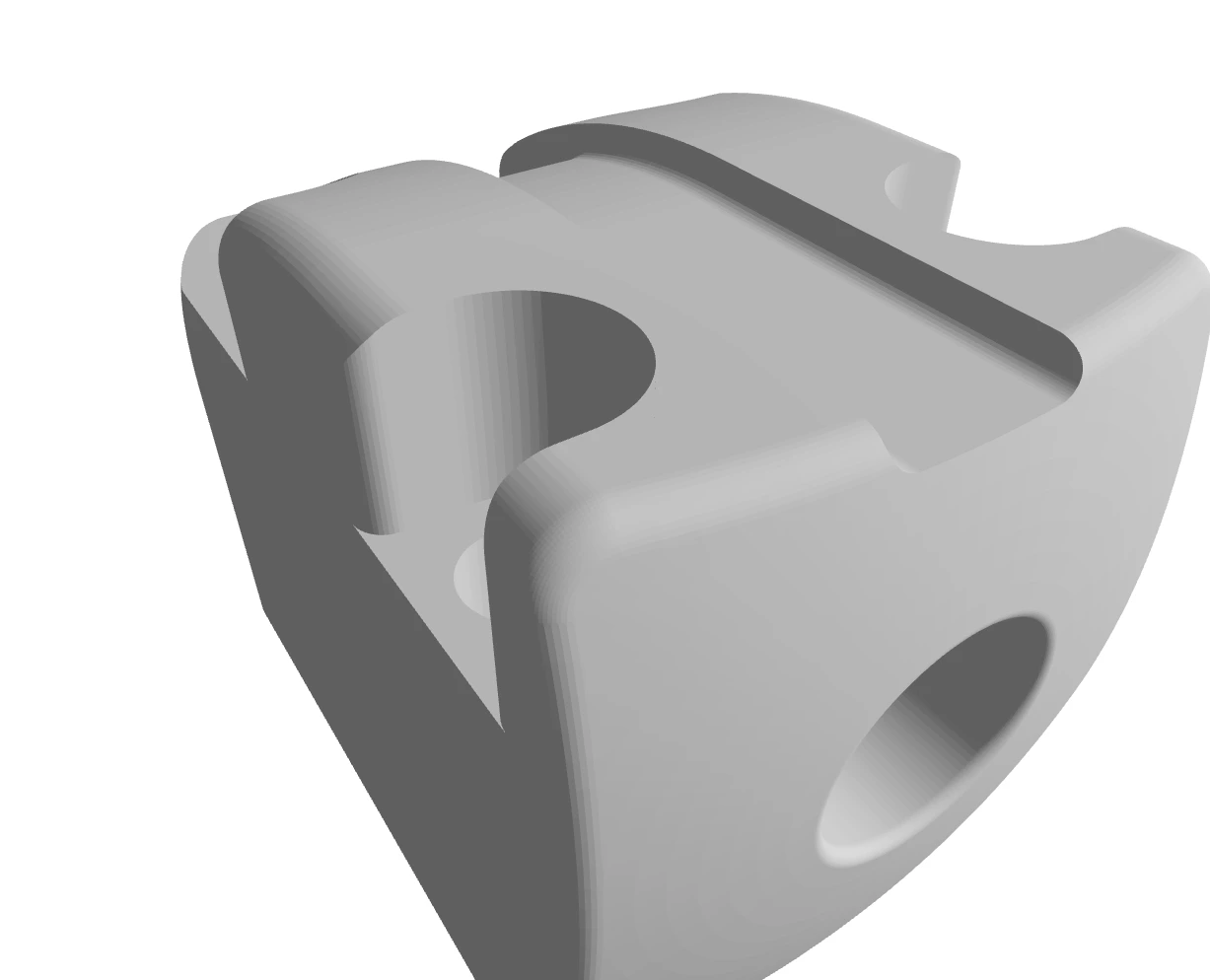

Open large \| Close	Voron-2/STLs/Gantry/Z_Joints/z_joint_lower_x4.stl	4 ☐☐☐☐

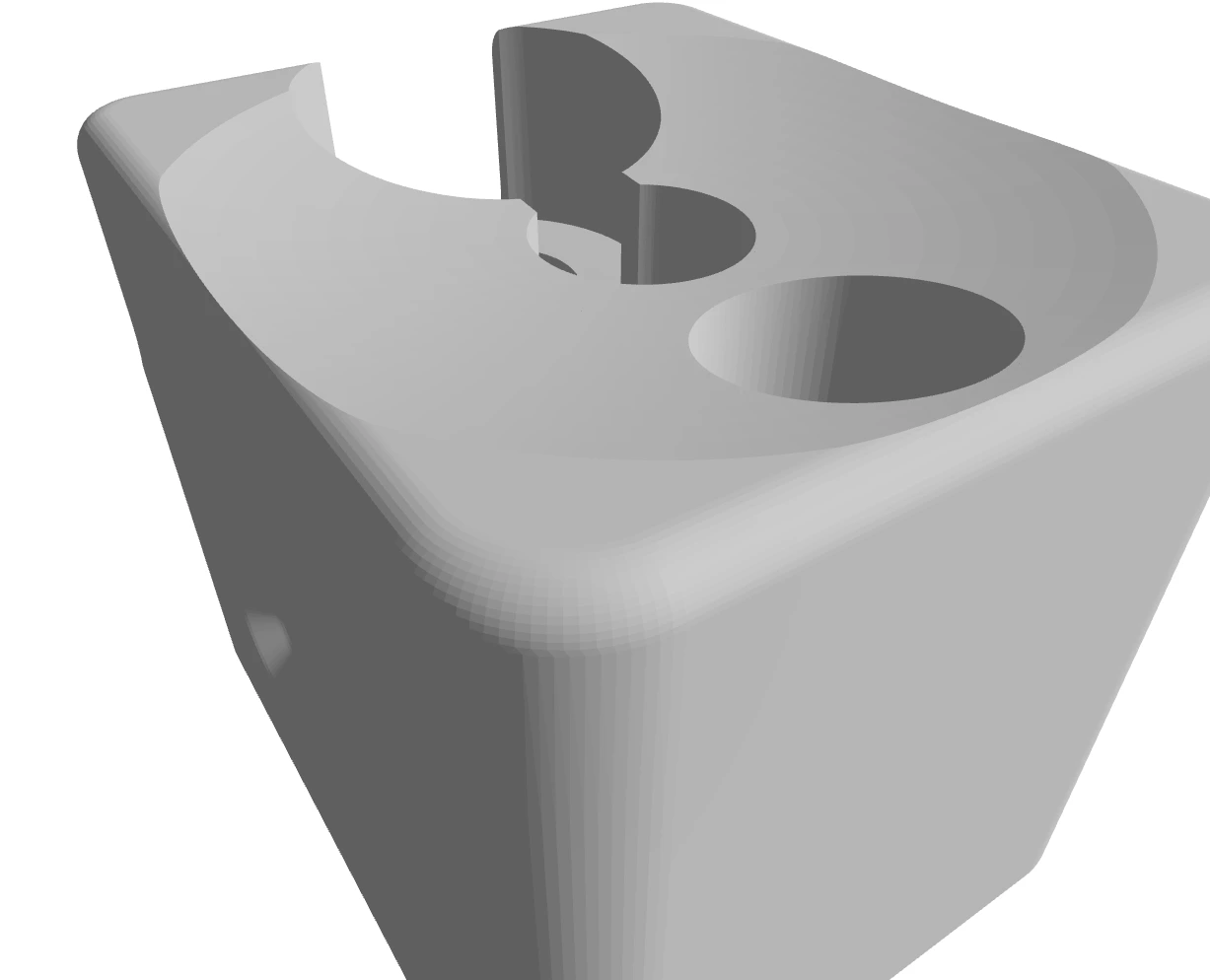

Open large \| Close	Voron-2/STLs/Gantry/Z_Joints/z_joint_upper_x4.stl	4 ☐☐☐☐

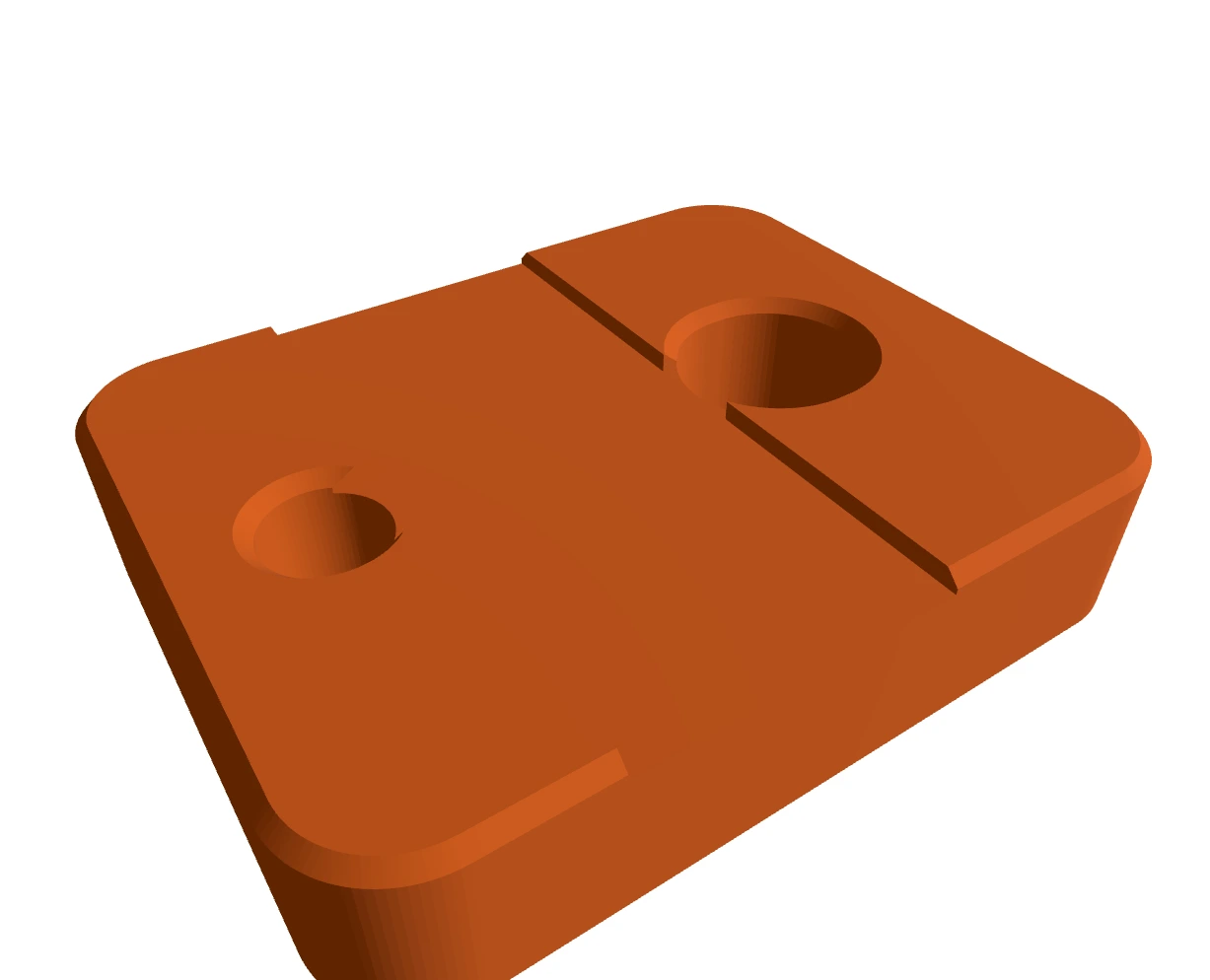

Open large \| Close	Voron-2/STLs/Gantry/[a]_z_belt_clip_lower_x4.stl	4 ☐☐☐☐

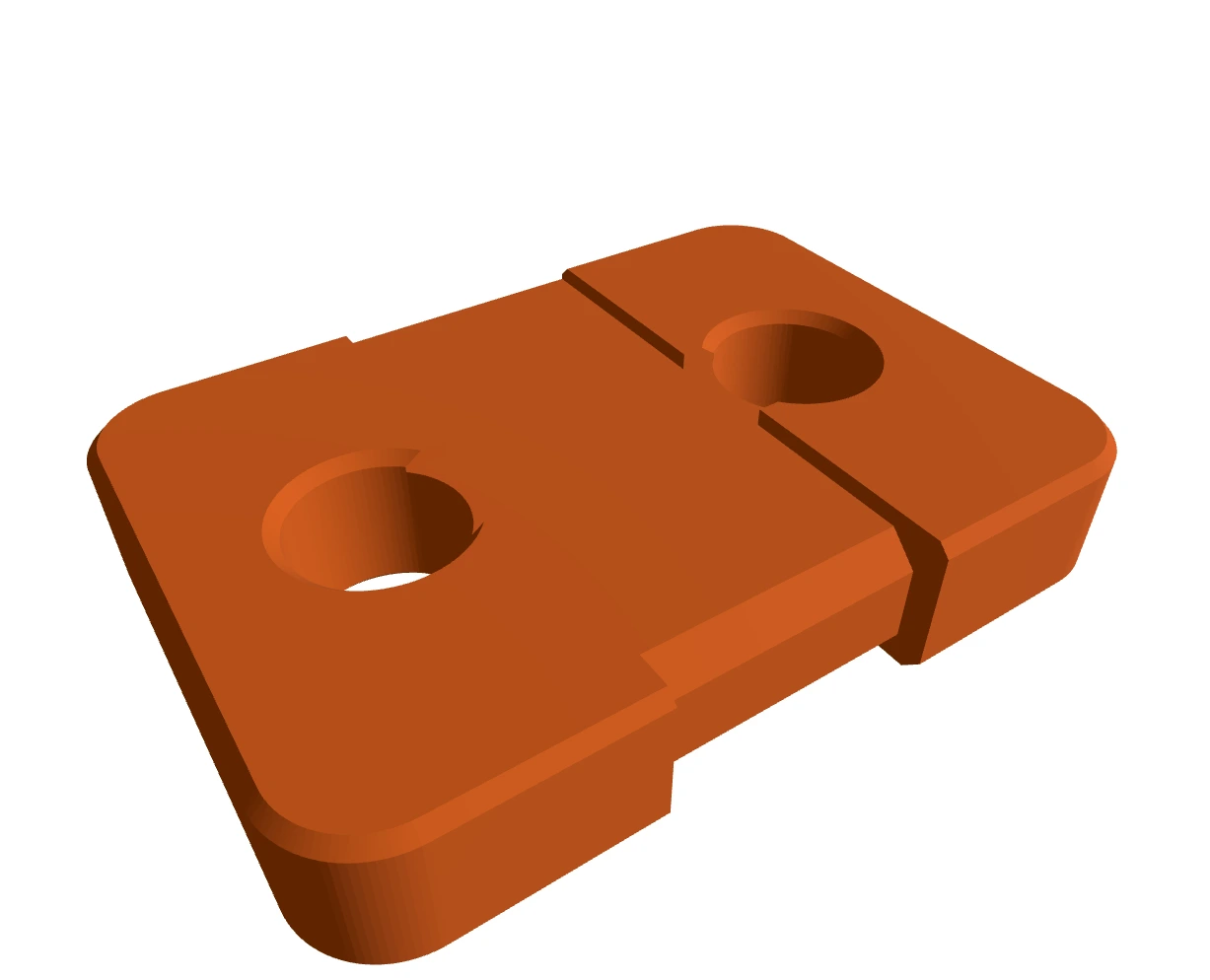

Open large \| Close	Voron-2/STLs/Gantry/[a]_z_belt_clip_upper_x4.stl	4 ☐☐☐☐
Open large \| Close	Voron-2/STLs/Gantry/z_chain_bottom_anchor.stl	1 ☐
Open large \| Close	Voron-2/STLs/Gantry/z_chain_guide.stl	1 ☐

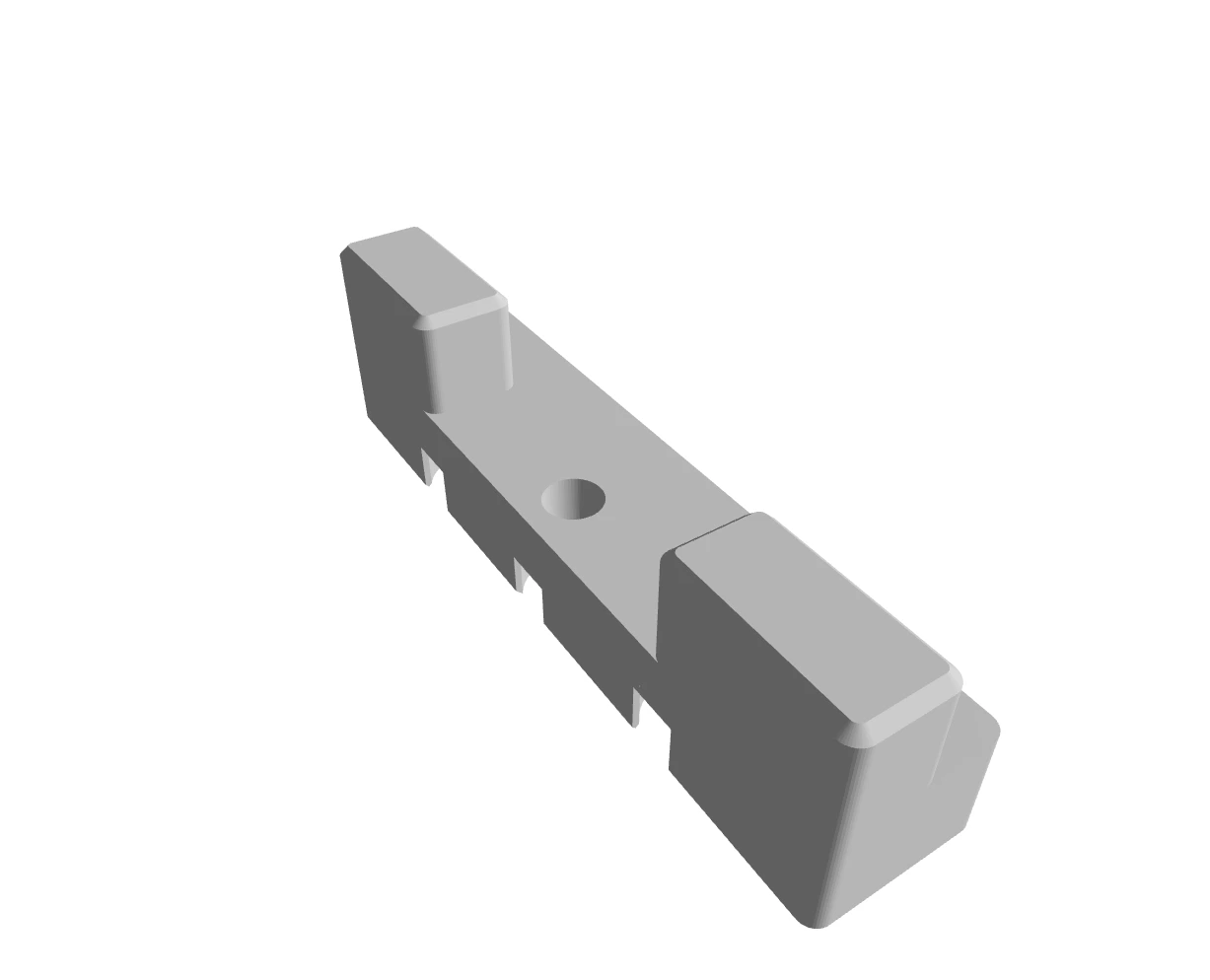

Open large \| Close	Voron-2/STLs/Panel_Mounting/Front_Doors/latch_x2.stl	2 ☐☐
Open large \| Close	Voron-2/STLs/Panel_Mounting/bottom_panel_clip_x4.stl	4 ☐☐☐☐
Open large \| Close	Voron-2/STLs/Panel_Mounting/bottom_panel_hinge_x2.stl	2 ☐☐

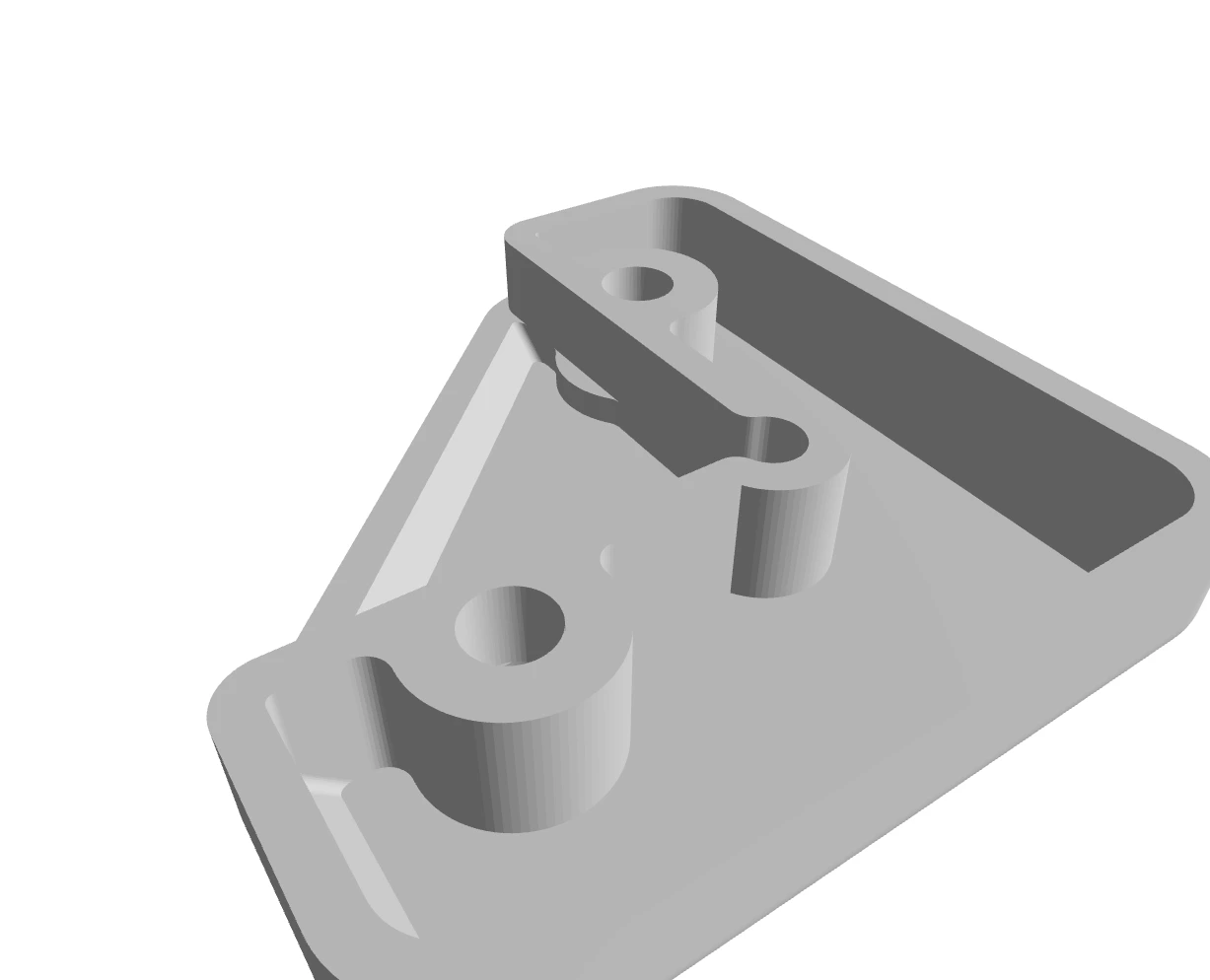

Open large \| Close	Voron-2/STLs/Panel_Mounting/corner_panel_clip_4mm_x8.stl	8 ☐☐☐☐☐☐☐☐
Open large \| Close	Voron-2/STLs/Panel_Mounting/corner_panel_clip_6mm_x8.stl	8 ☐☐☐☐☐☐☐☐

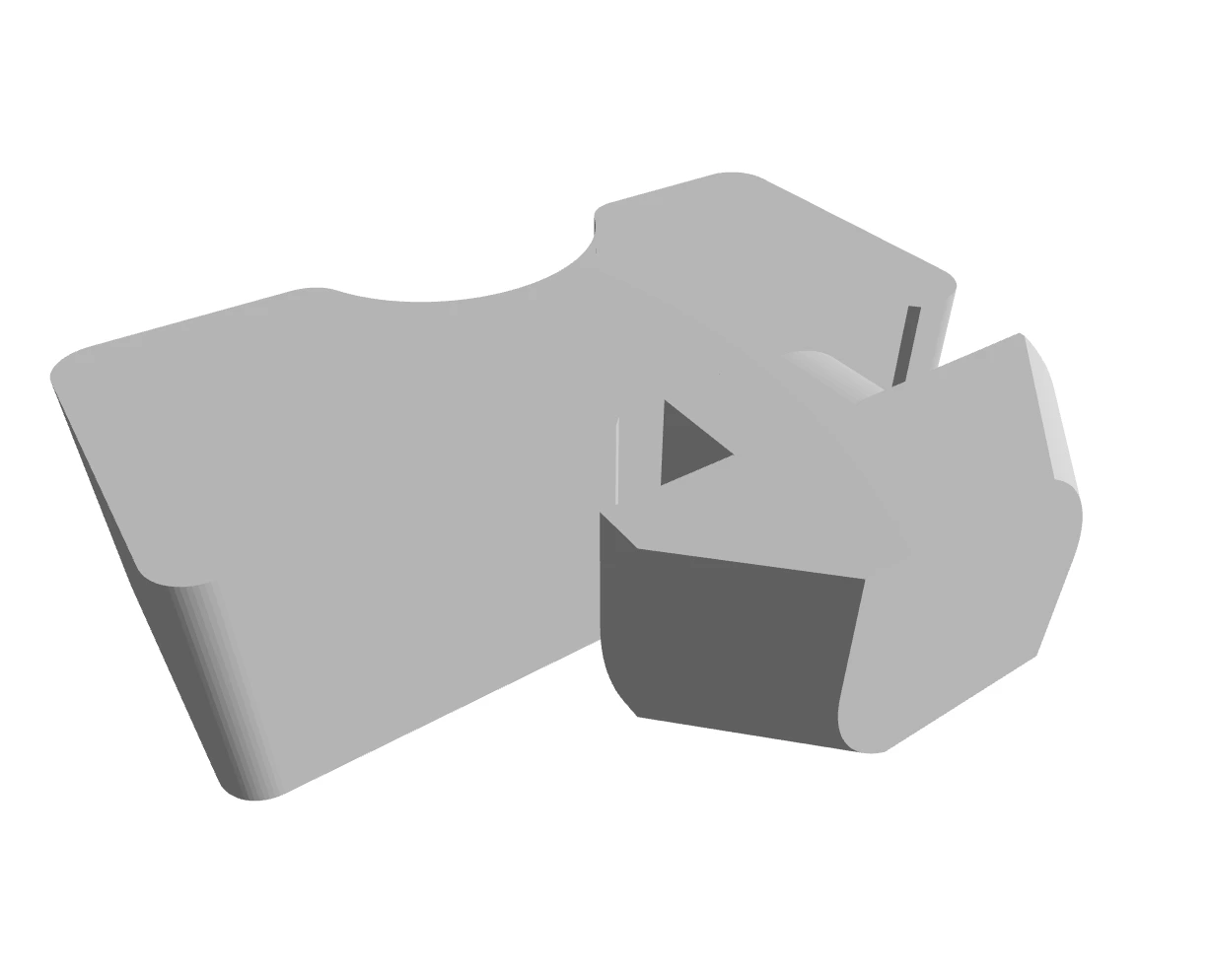

Open large \| Close	Voron-2/STLs/Panel_Mounting/deck_support_4mm_x8.stl	8 ☐☐☐☐☐☐☐☐

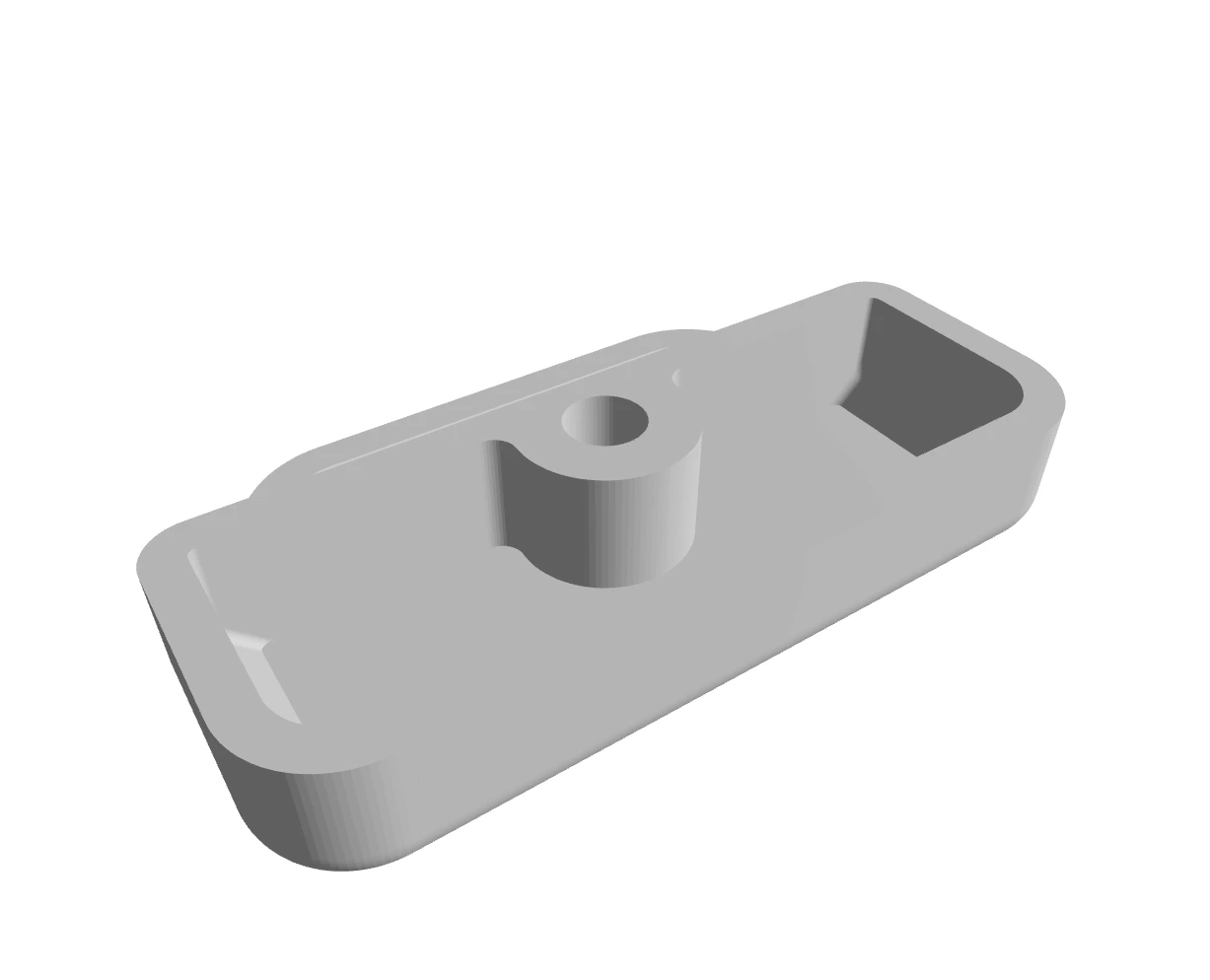

Open large \| Close	Voron-2/STLs/Panel_Mounting/midspan_panel_clip_4mm_x7.stl	7 ☐☐☐☐☐☐☐

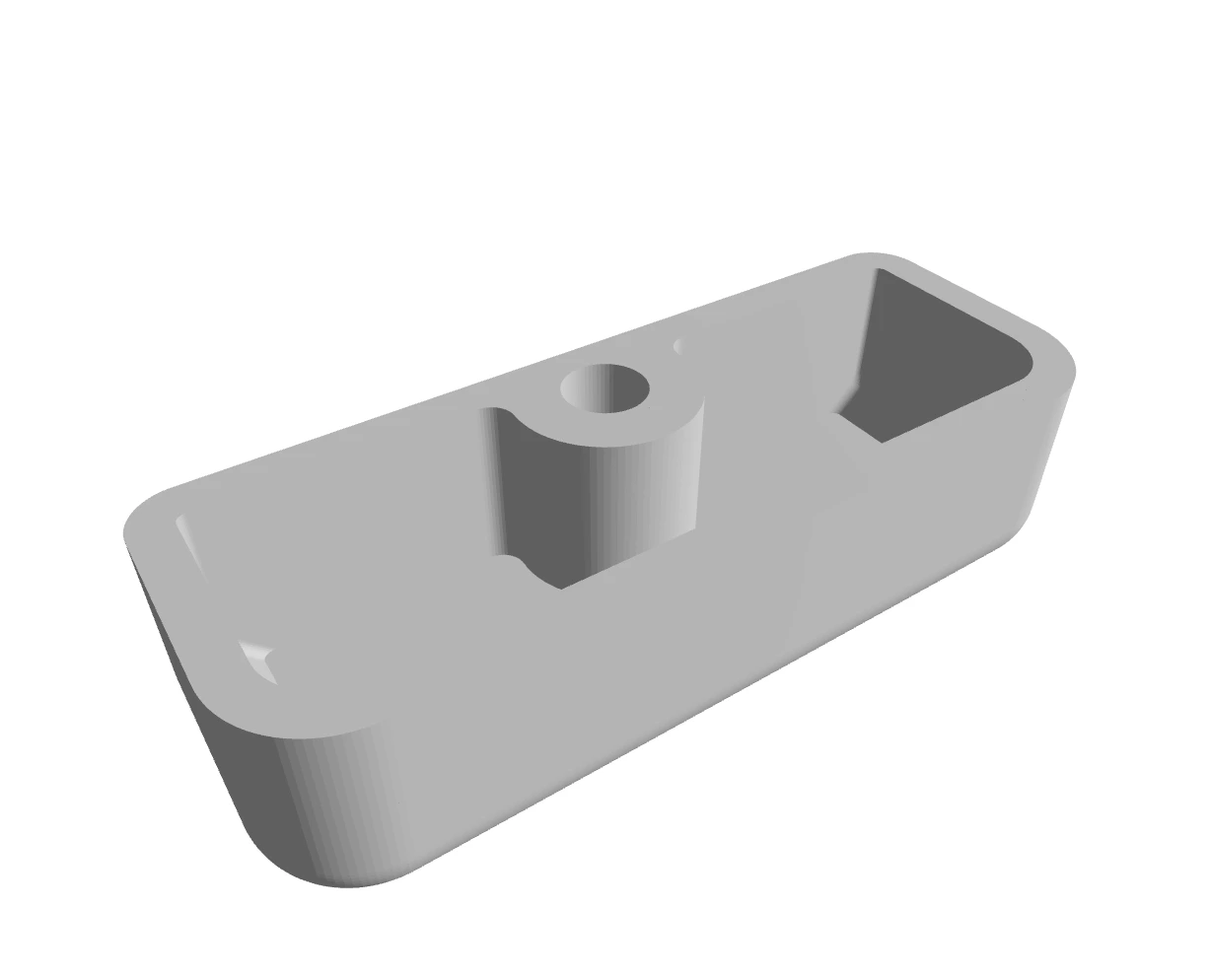

Open large \| Close	Voron-2/STLs/Panel_Mounting/midspan_panel_clip_6mm_x8.stl	8 ☐☐☐☐☐☐☐☐

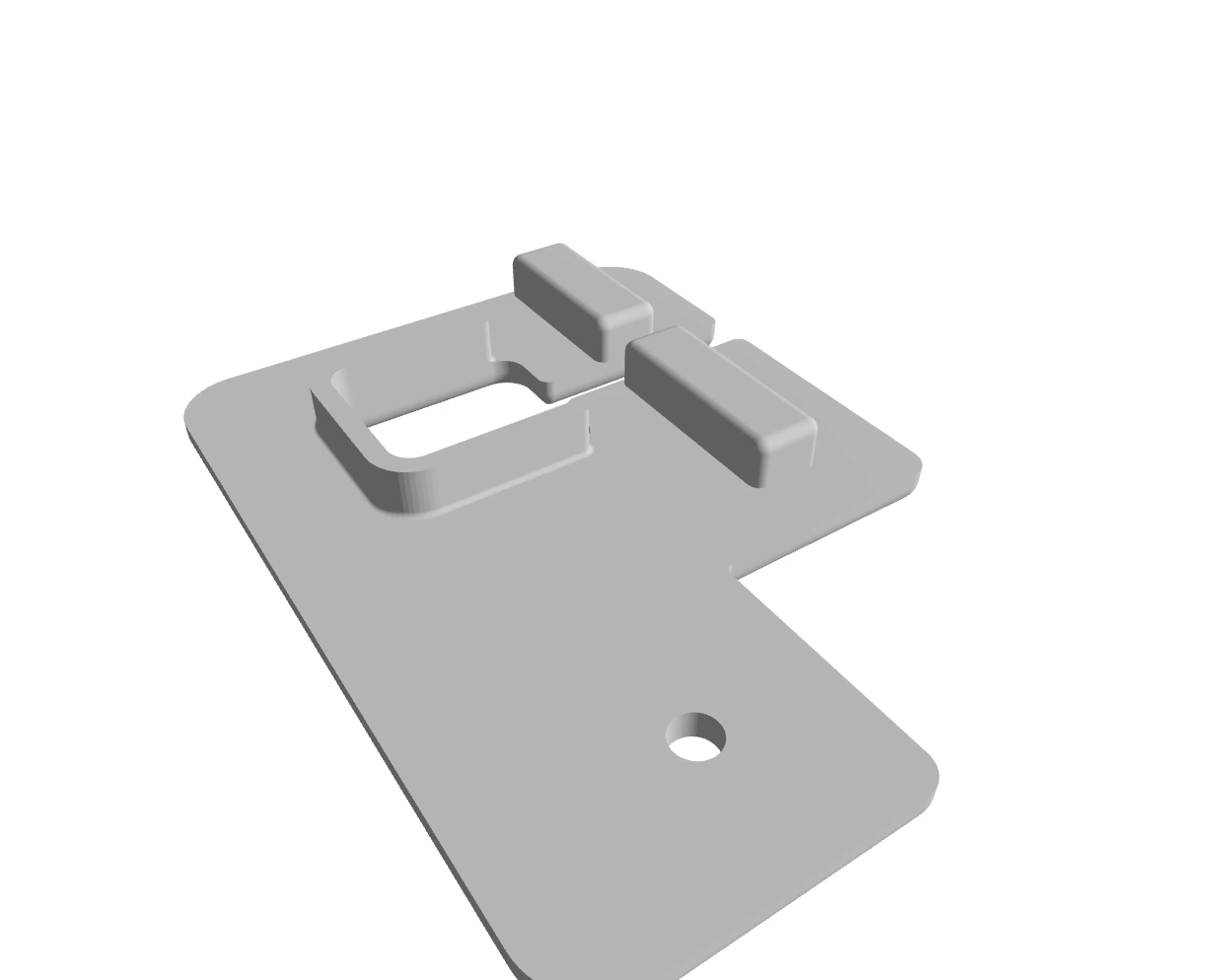

Open large \| Close	Voron-2/STLs/Panel_Mounting/z_belt_cover_a_x2.stl	2 ☐☐

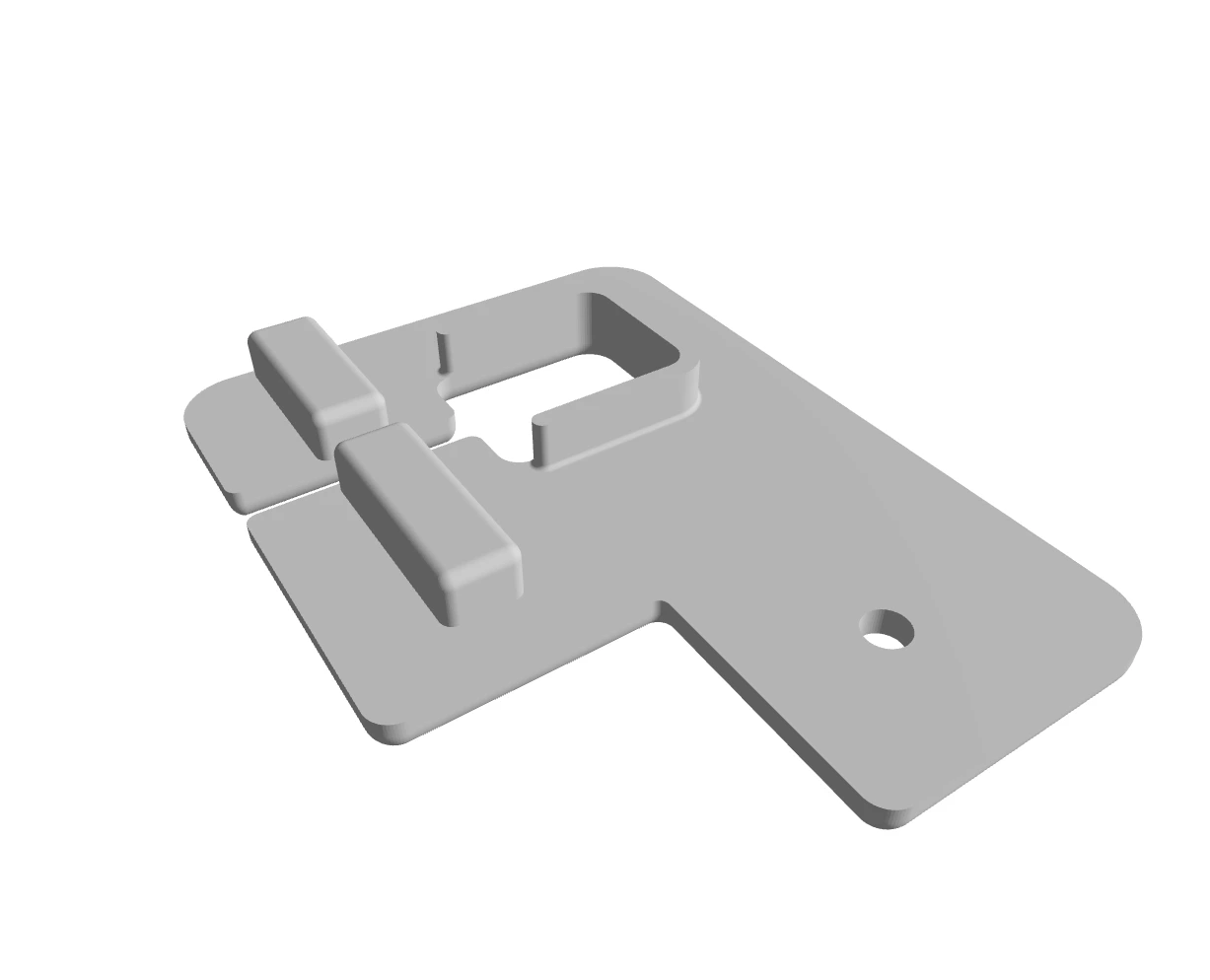

Open large \| Close	Voron-2/STLs/Panel_Mounting/z_belt_cover_b_x2.stl	2 ☐☐
Open large \| Close	Voron-2/STLs/Skirts/300/front_skirt_a_300.stl	1 ☐
Open large \| Close	Voron-2/STLs/Skirts/300/front_skirt_b_300.stl	1 ☐
Open large \| Close	Voron-2/STLs/Skirts/300/rear_center_skirt_300.stl	1 ☐

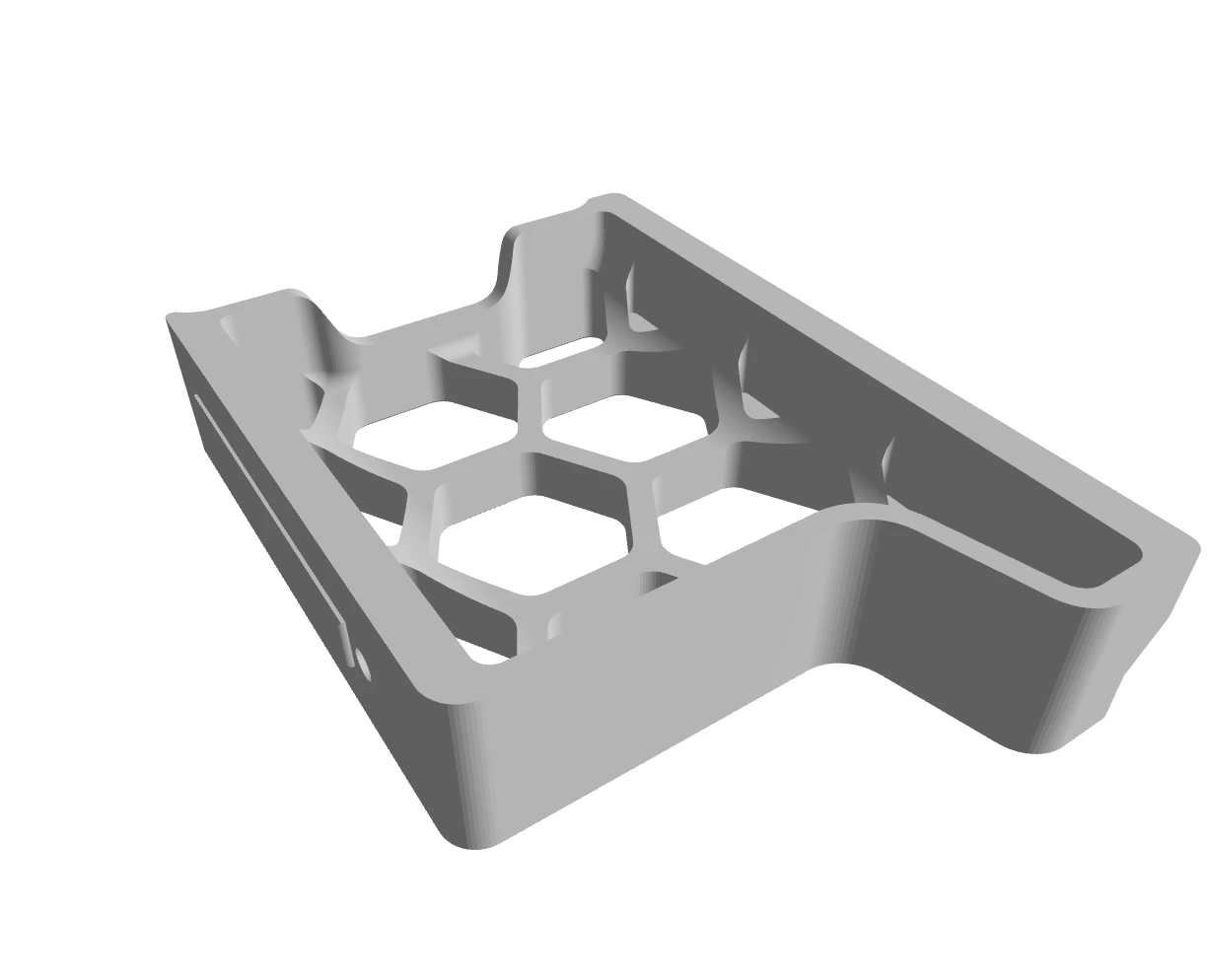

Open large \| Close	Voron-2/STLs/Skirts/300/side_skirt_a_300_x2.stl	2 ☐☐

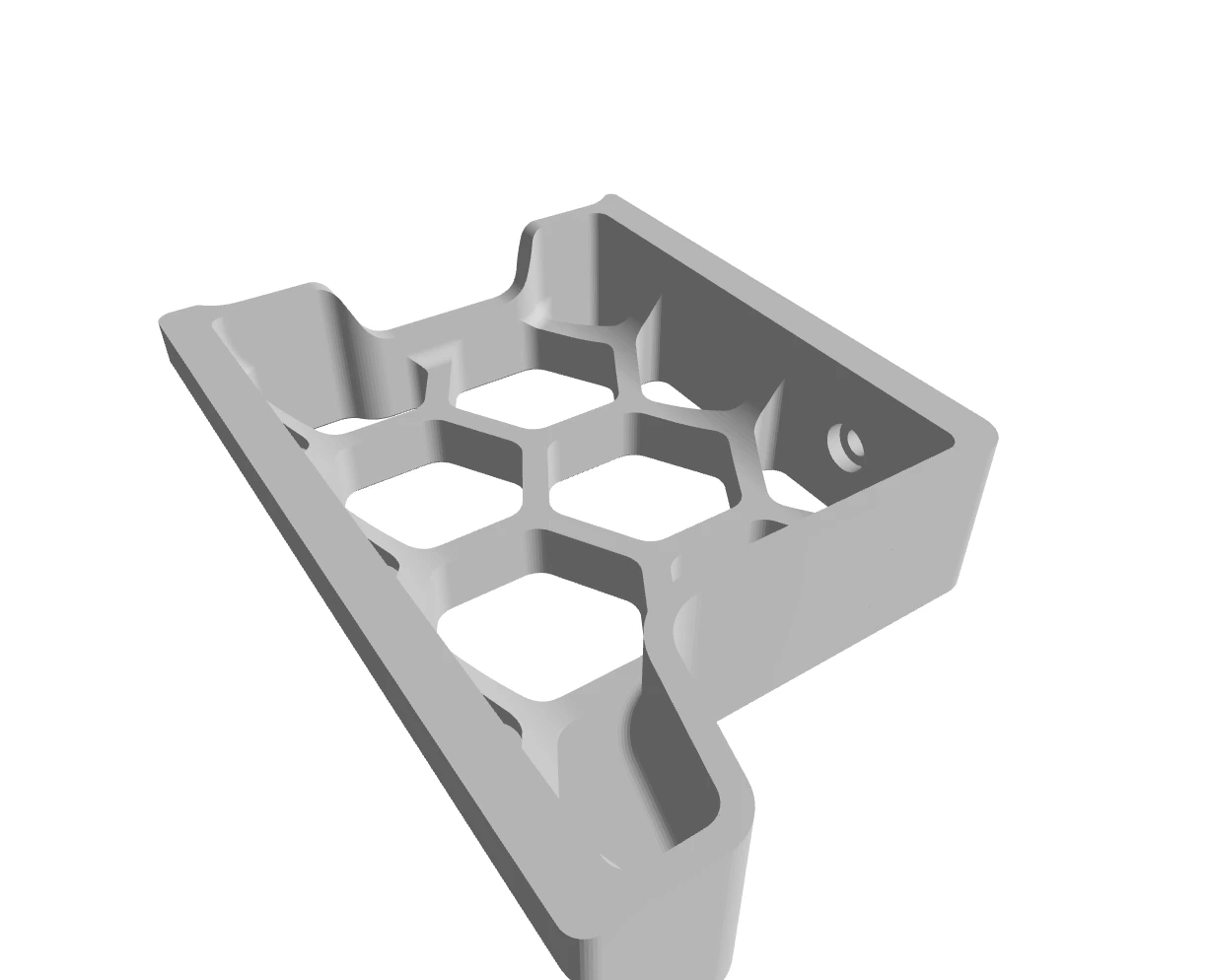

Open large \| Close	Voron-2/STLs/Skirts/300/side_skirt_b_300_x2.stl	2 ☐☐
Open large \| Close	Voron-2/STLs/Skirts/350/front_skirt_a_350.stl	1 ☐
Open large \| Close	Voron-2/STLs/Skirts/350/front_skirt_b_350.stl	1 ☐
Open large \| Close	Voron-2/STLs/Skirts/350/rear_center_skirt_350.stl	1 ☐

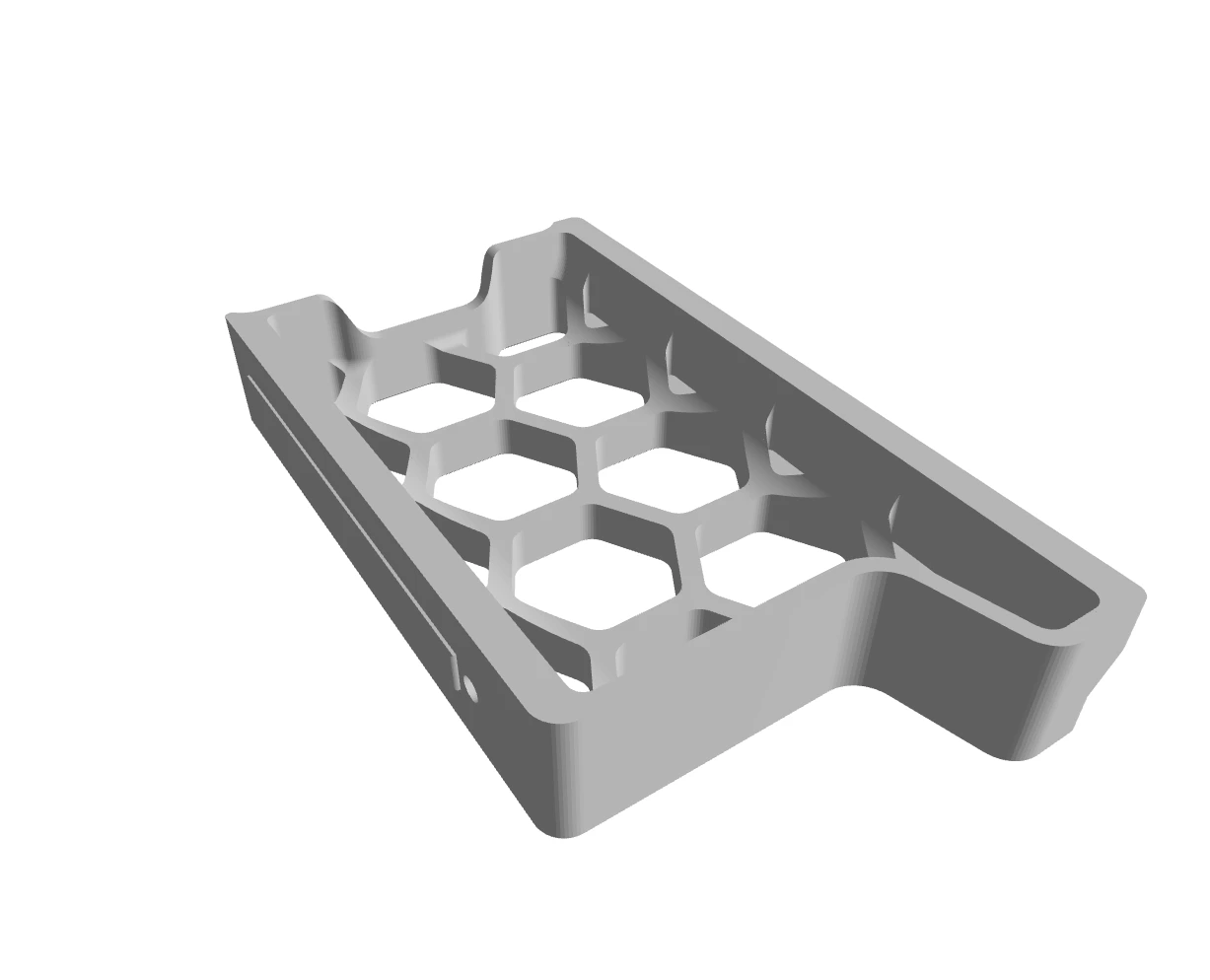

Open large \| Close	Voron-2/STLs/Skirts/350/side_skirt_a_350_x2.stl	2 ☐☐

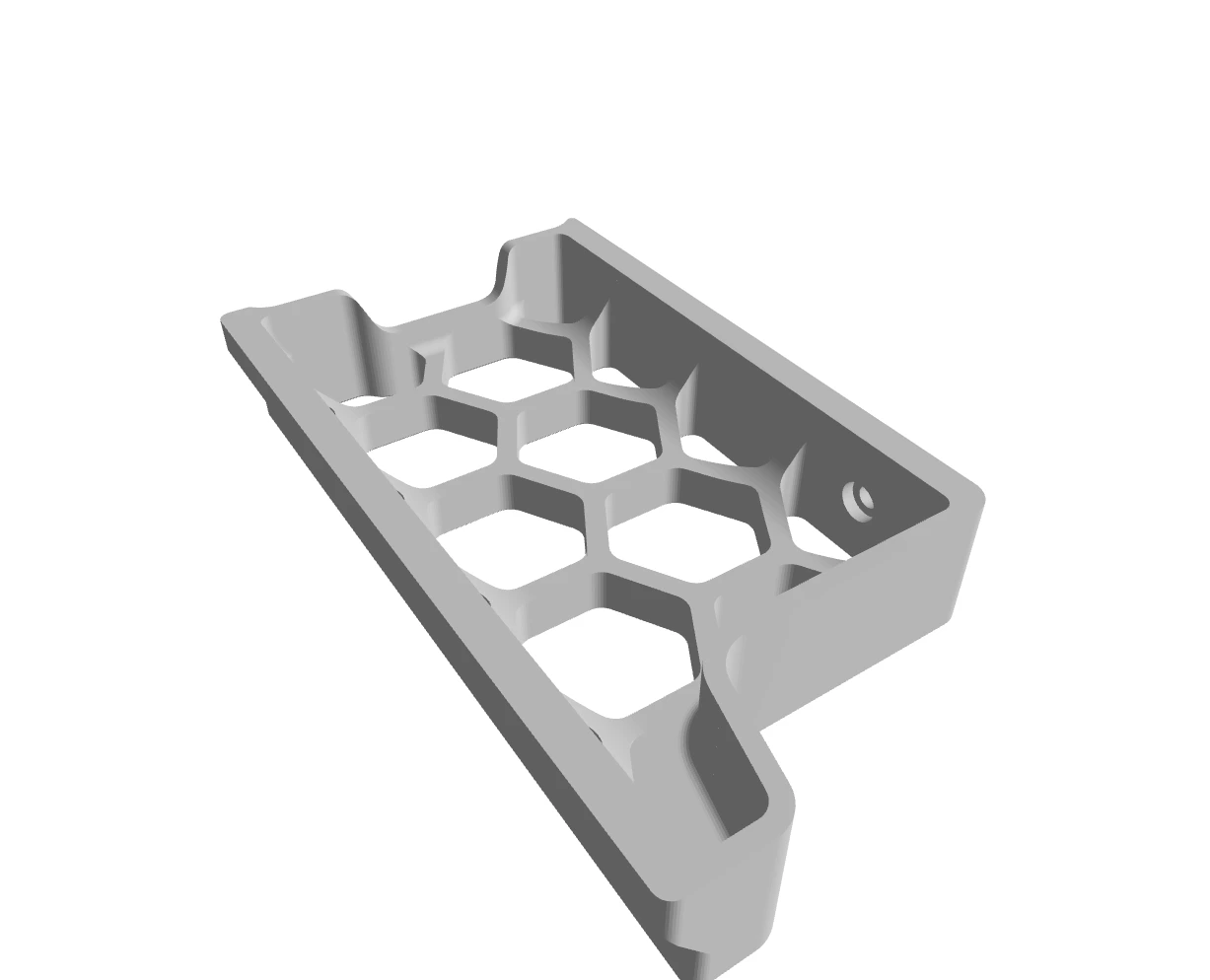

Open large \| Close	Voron-2/STLs/Skirts/350/side_skirt_b_350_x2.stl	2 ☐☐

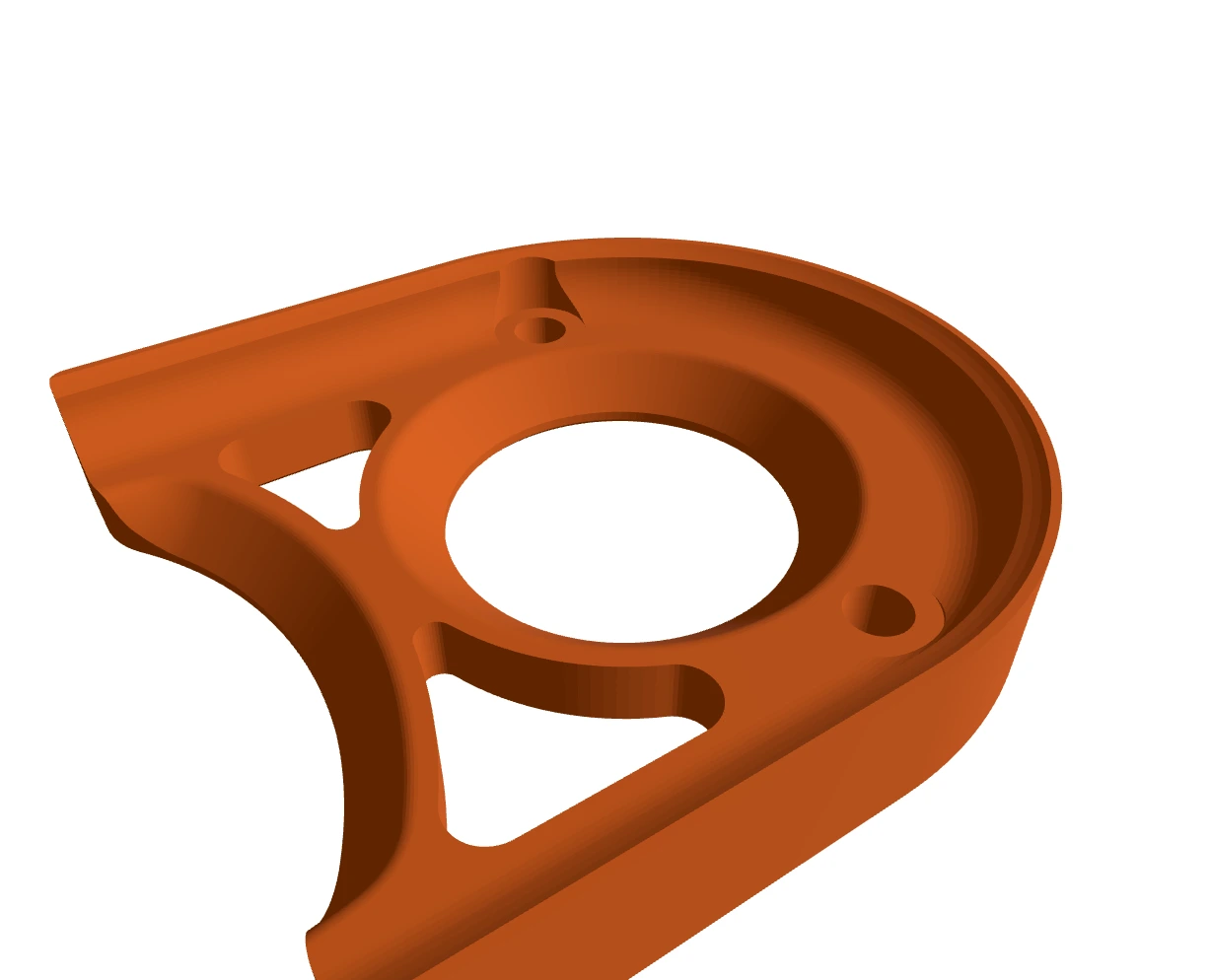

Open large \| Close	Voron-2/STLs/Skirts/[a]_belt_guard_a_x2.stl	2 ☐☐

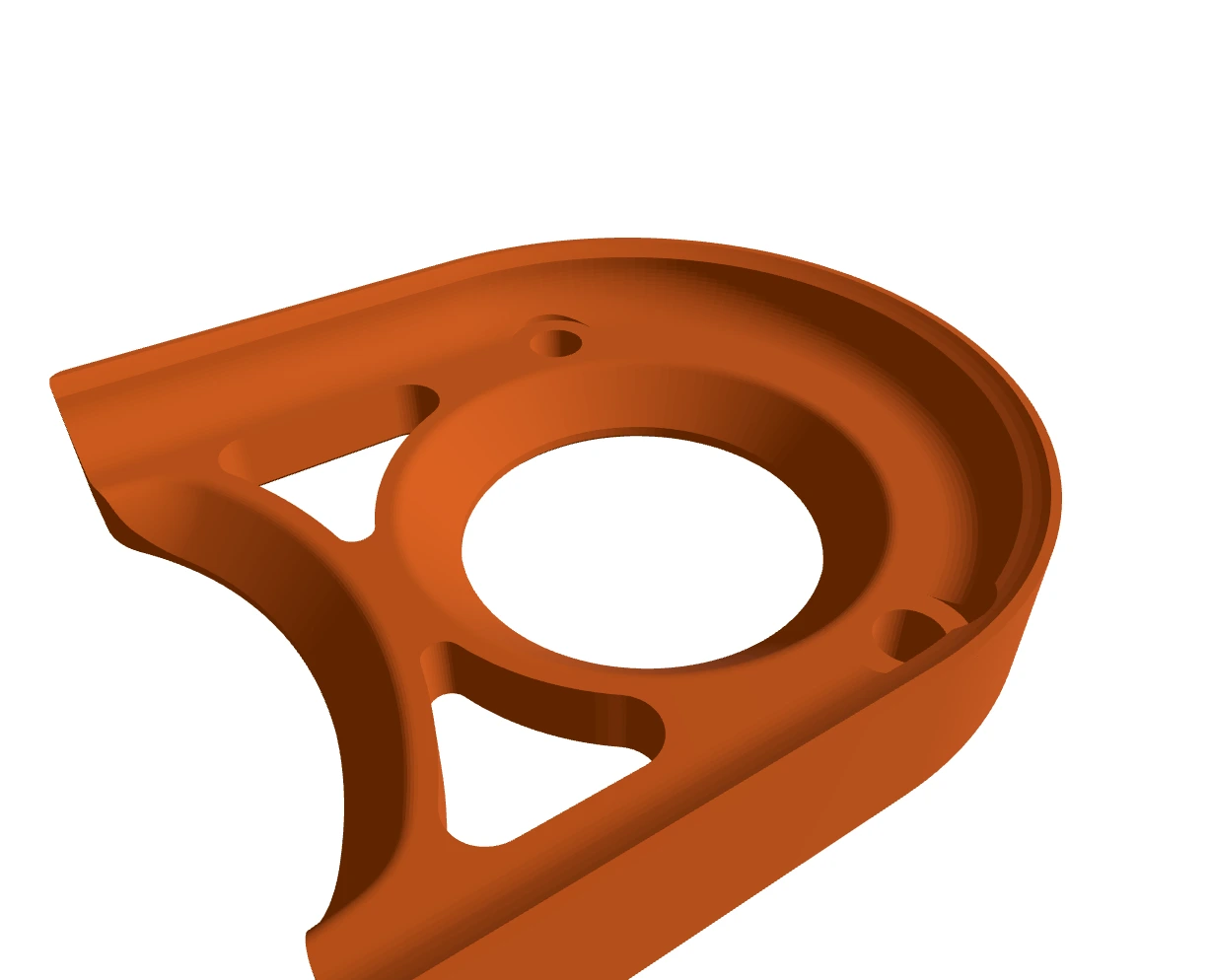

Open large \| Close	Voron-2/STLs/Skirts/[a]_belt_guard_b_x2.stl	2 ☐☐

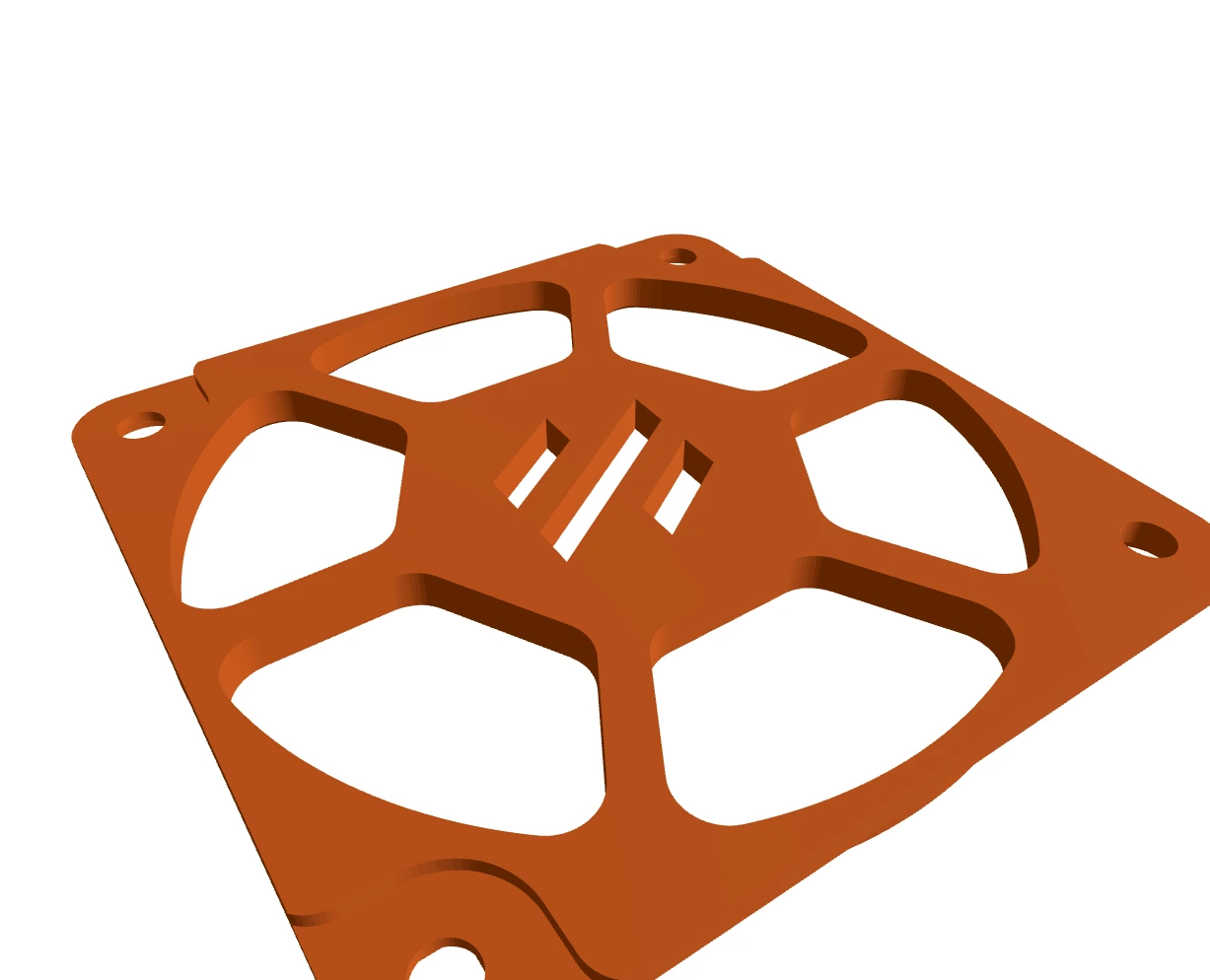

Open large \| Close	Voron-2/STLs/Skirts/[a]_fan_grill_a_x2.stl	2 ☐☐

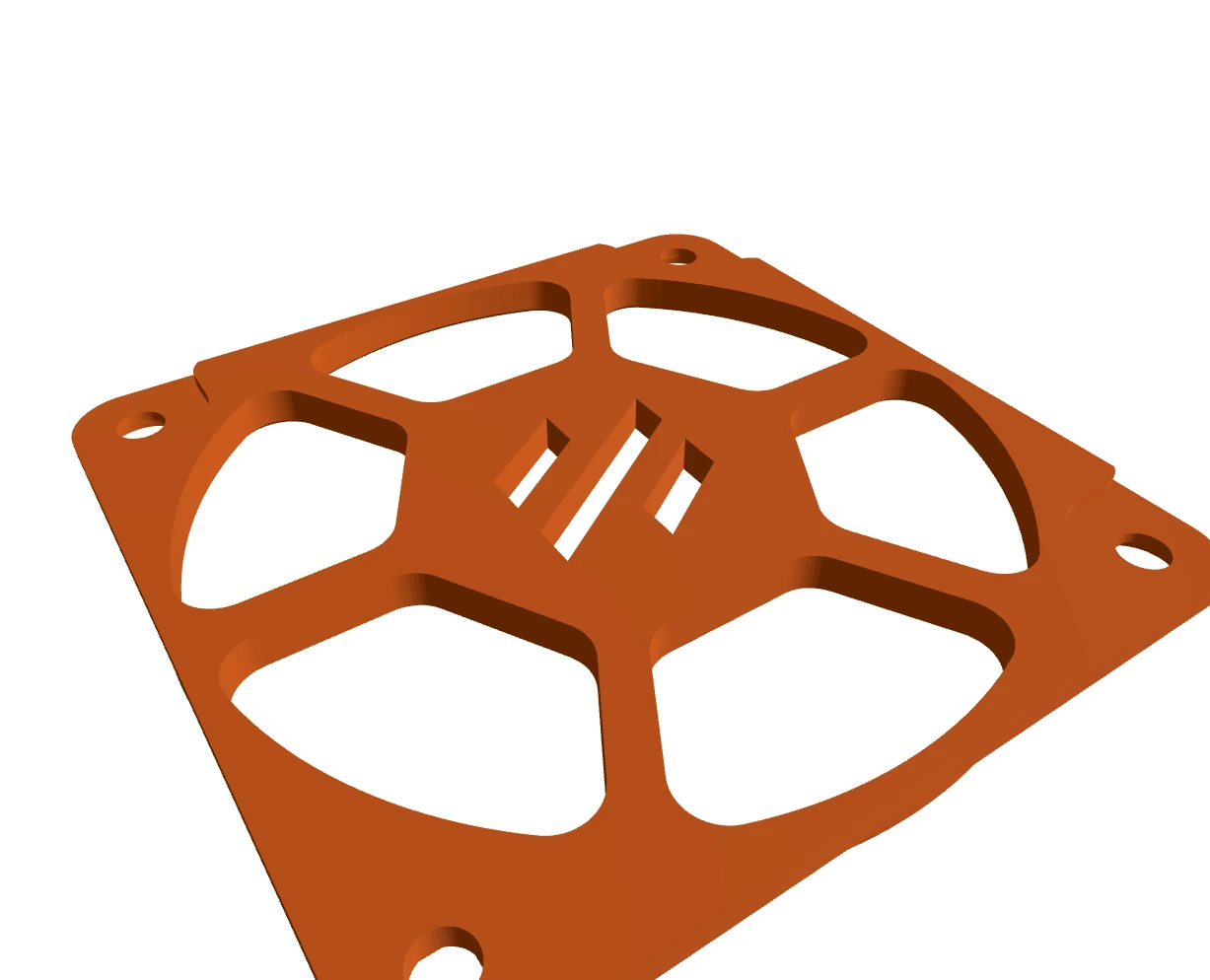

Open large \| Close	Voron-2/STLs/Skirts/[a]_fan_grill_b_x2.stl	2 ☐☐

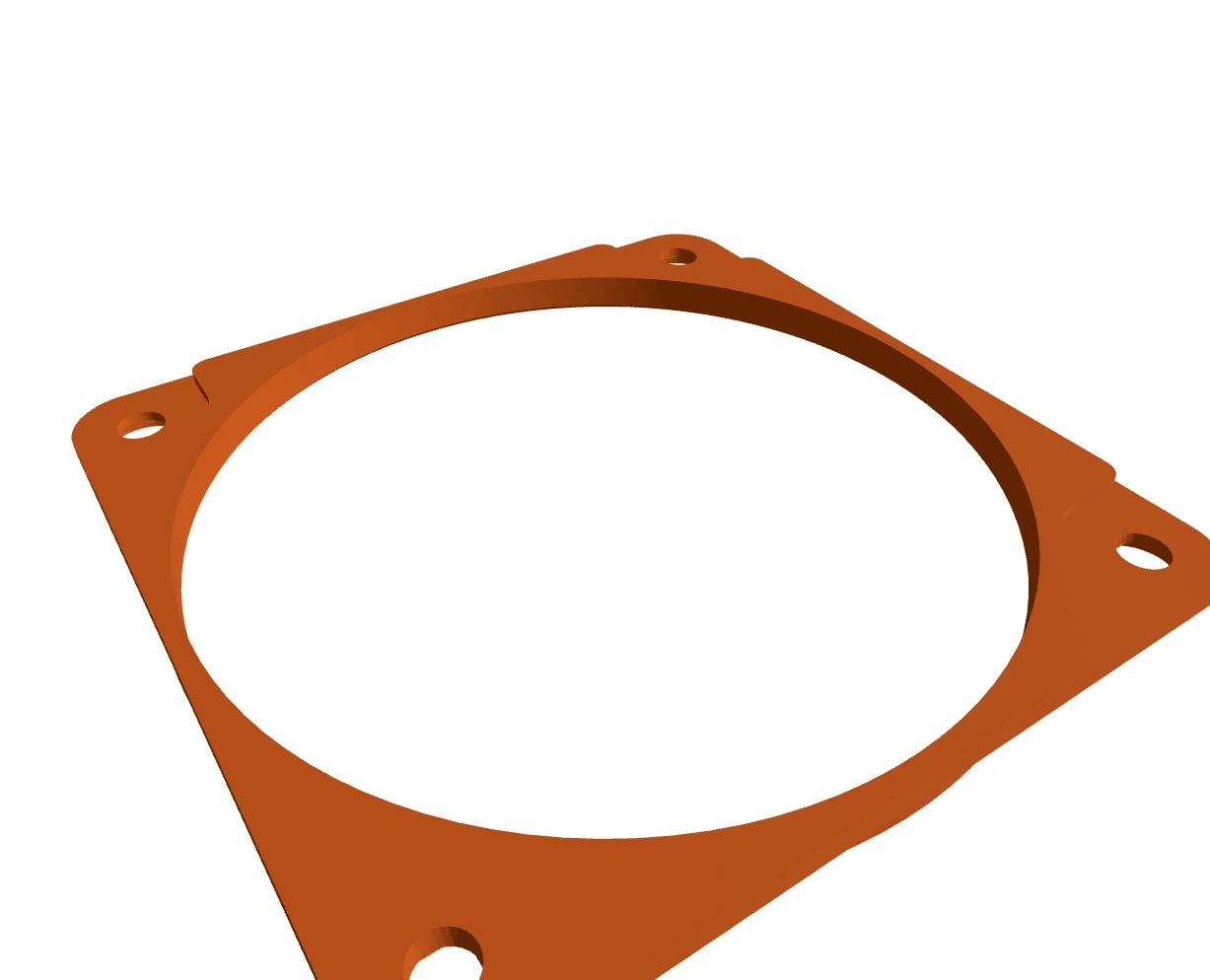

Open large \| Close	Voron-2/STLs/Skirts/[a]_fan_grill_open_optional_x2.stl	2 ☐☐

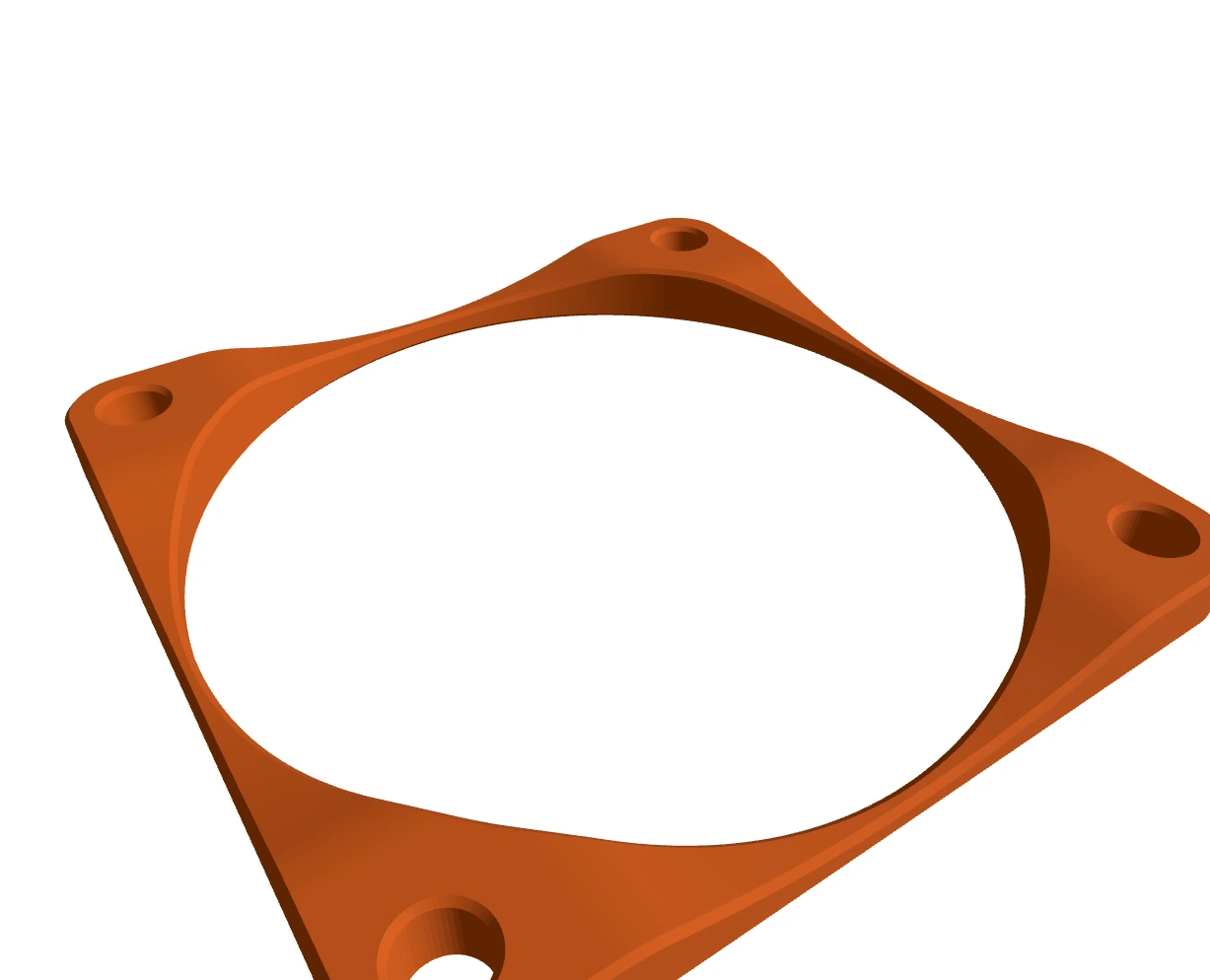

Open large \| Close	Voron-2/STLs/Skirts/[a]_fan_grill_retainer_x2.stl	2 ☐☐

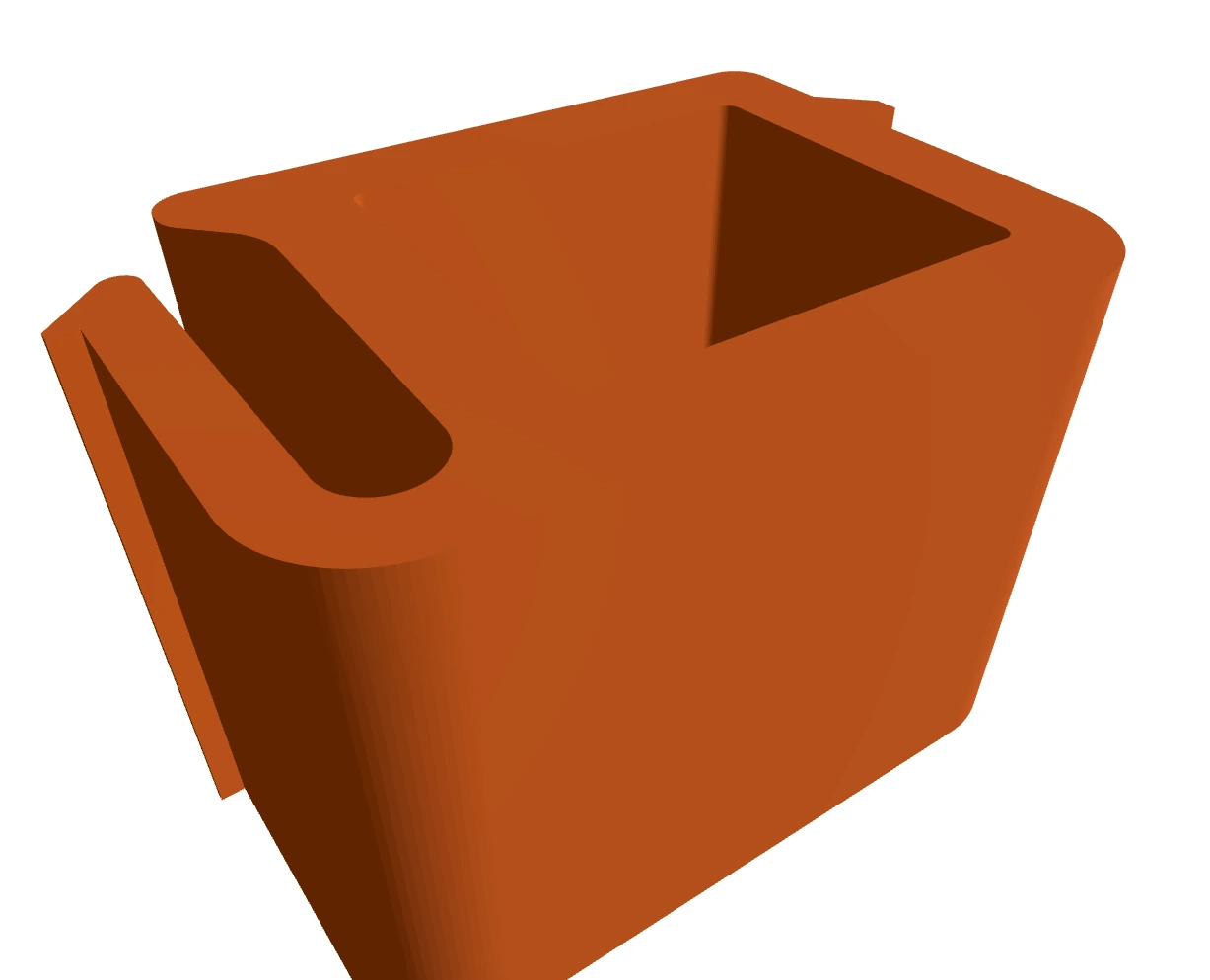

Open large \| Close	Voron-2/STLs/Skirts/[a]_keystone_blank_insert.stl	1 ☐
Open large \| Close	Voron-2/STLs/Skirts/keystone_panel.stl	1 ☐
Open large \| Close	Voron-2/STLs/Skirts/power_inlet_IECGS_1mm.stl	1 ☐
Open large \| Close	Voron-2/STLs/Skirts/side_fan_support_x2.STL	2 ☐☐
Open large \| Close	Voron-2/STLs/Spool_Management/bowden_retainer.stl	1 ☐
Open large \| Close	Voron-2/STLs/Spool_Management/spool_holder.stl	1 ☐
Open large \| Close	Voron-2/STLs/Test_Prints/Heatset_Practice.stl	1 ☐
Open large \| Close	Voron-2/STLs/Tools/MGN12_rail_guide_x2.stl	2 ☐☐
Open large \| Close	Voron-2/STLs/Tools/MGN9_rail_guide_x2.stl	2 ☐☐
Open large \| Close	Voron-2/STLs/Tools/pulley_jig.stl	1 ☐

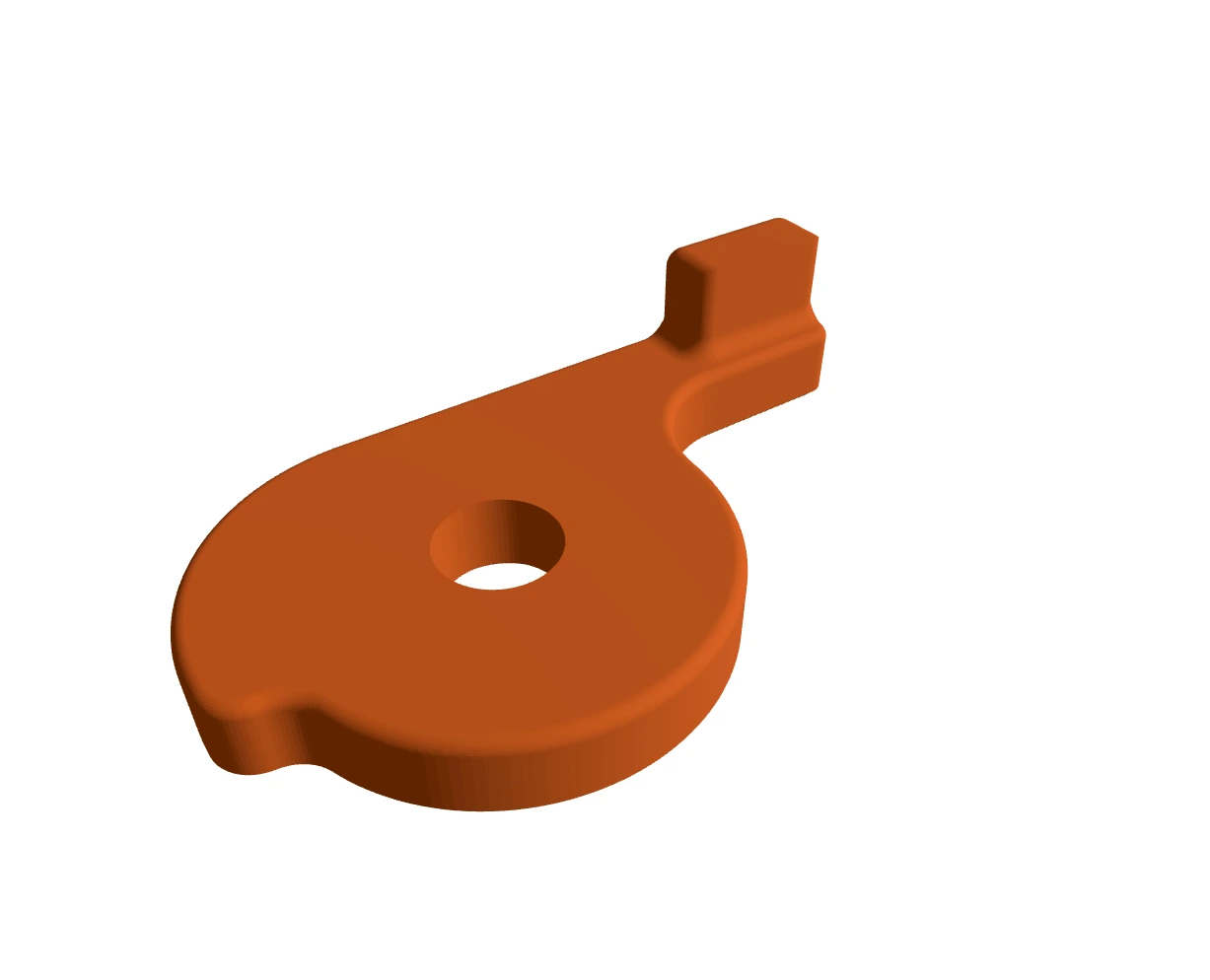

Open large \| Close	Voron-2/STLs/Z_Drive/[a]_belt_tensioner_a_x2.stl	2 ☐☐

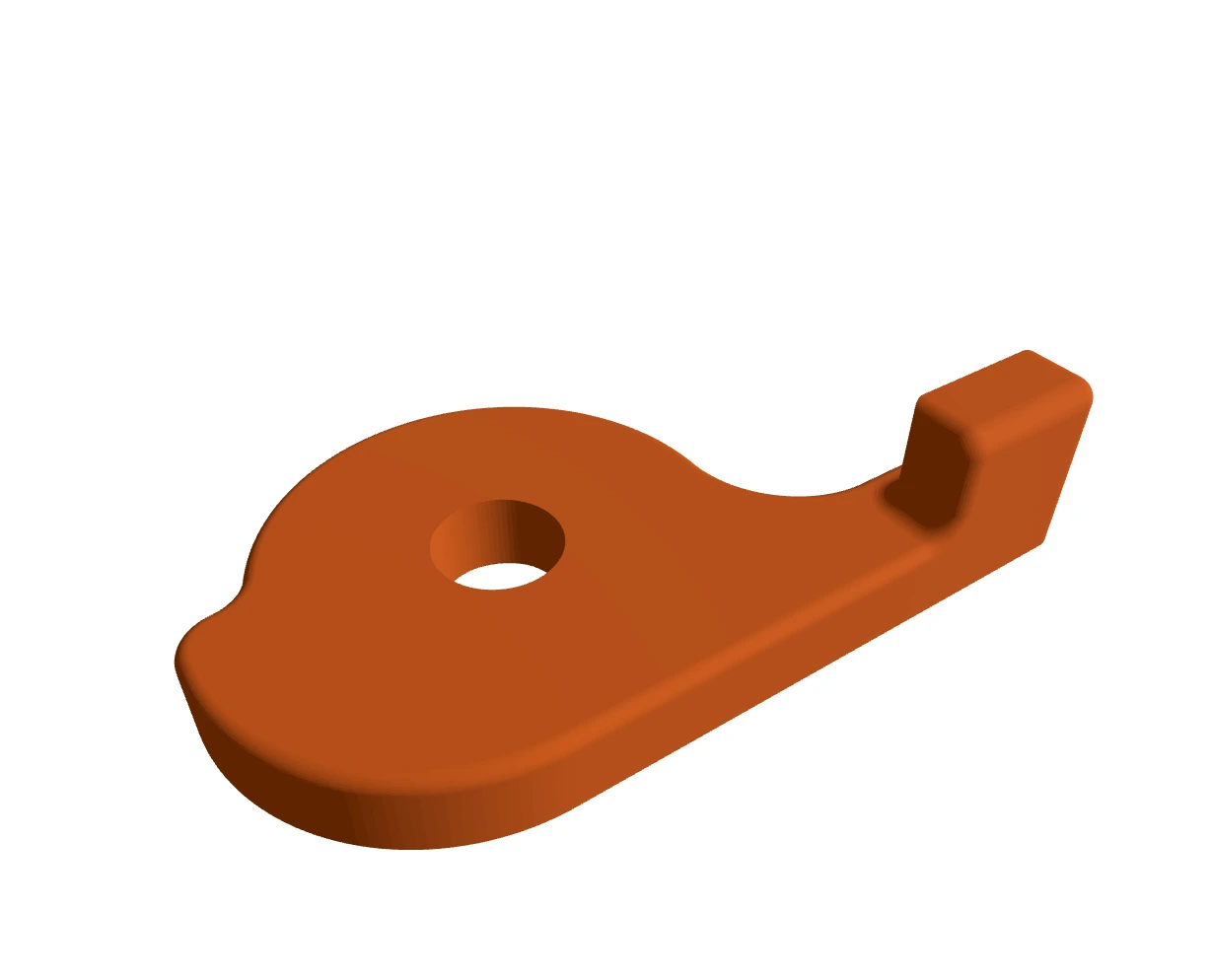

Open large \| Close	Voron-2/STLs/Z_Drive/[a]_belt_tensioner_b_x2.stl	2 ☐☐

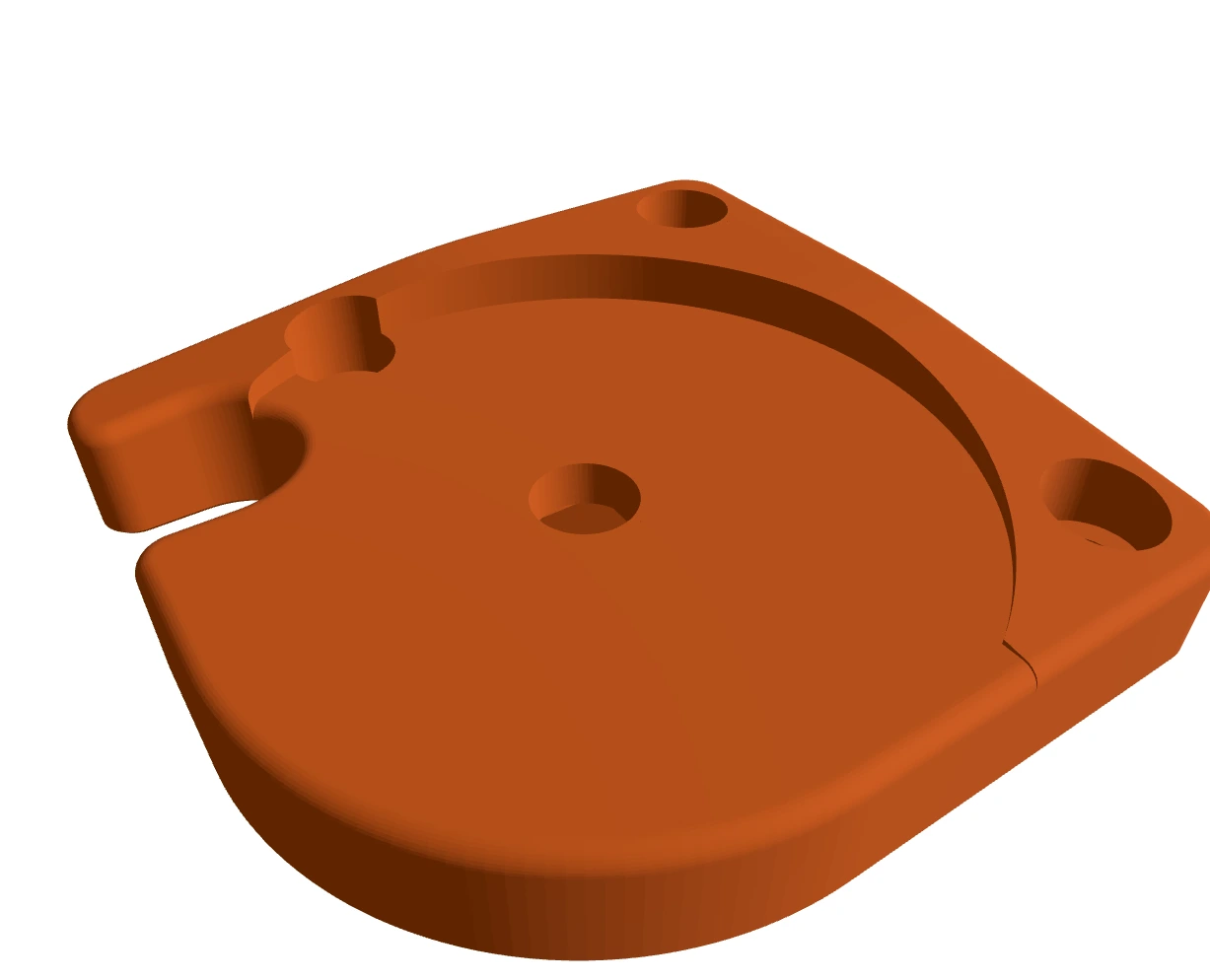

Open large \| Close	Voron-2/STLs/Z_Drive/[a]_z_drive_baseplate_a_x2.stl	2 ☐☐

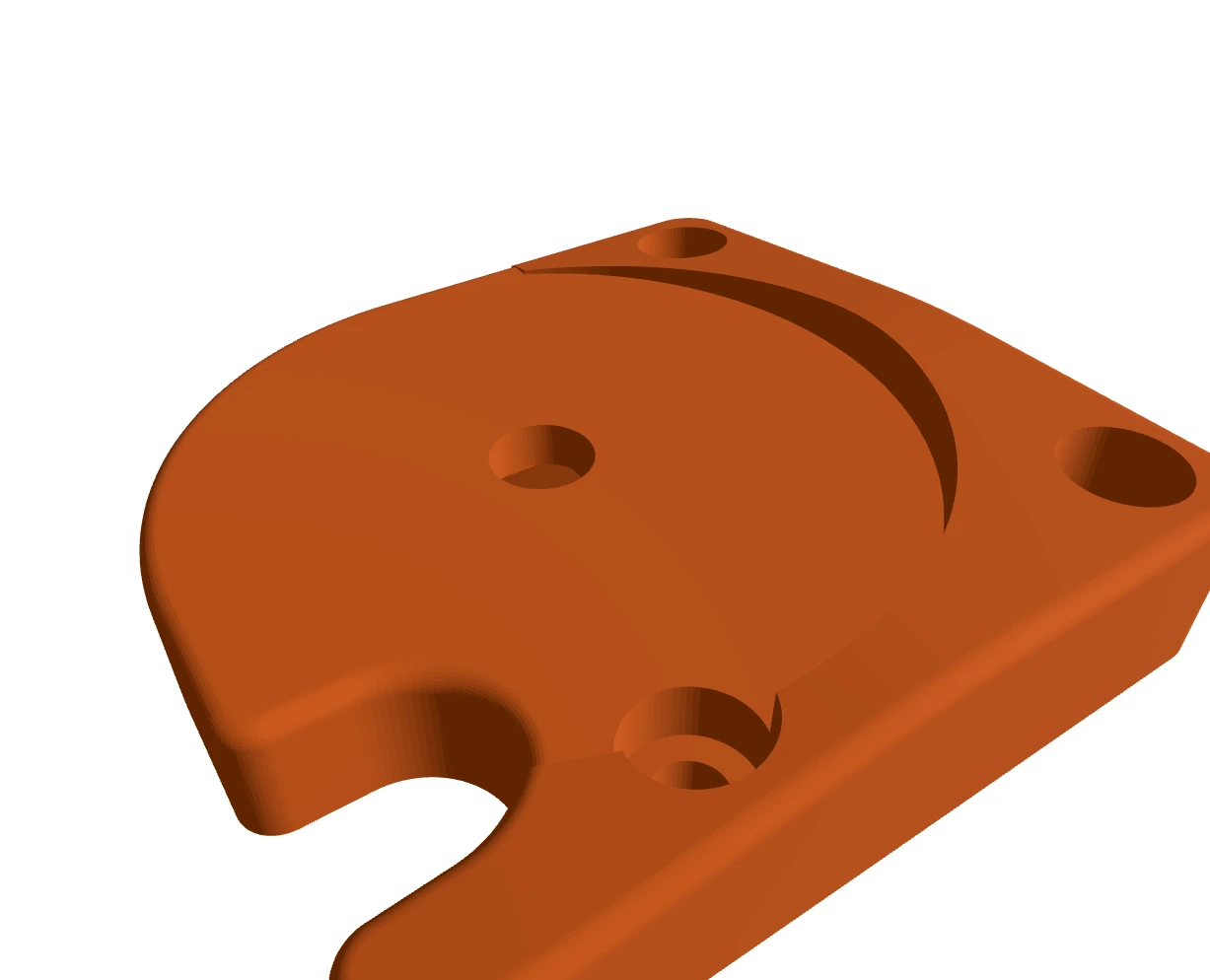

Open large \| Close	Voron-2/STLs/Z_Drive/[a]_z_drive_baseplate_b_x2.stl	2 ☐☐

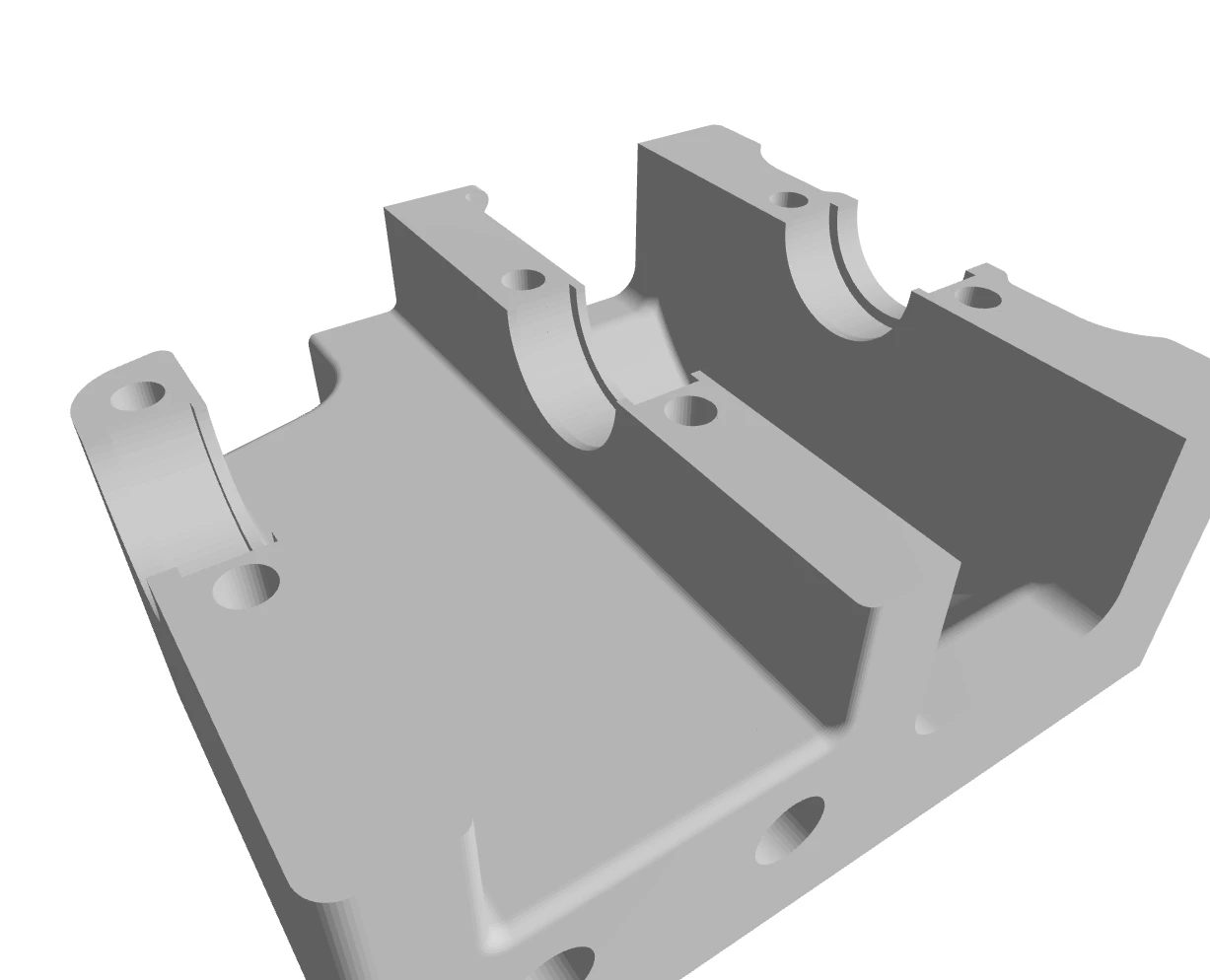

Open large \| Close	Voron-2/STLs/Z_Drive/z_drive_main_a_x2.stl	2 ☐☐

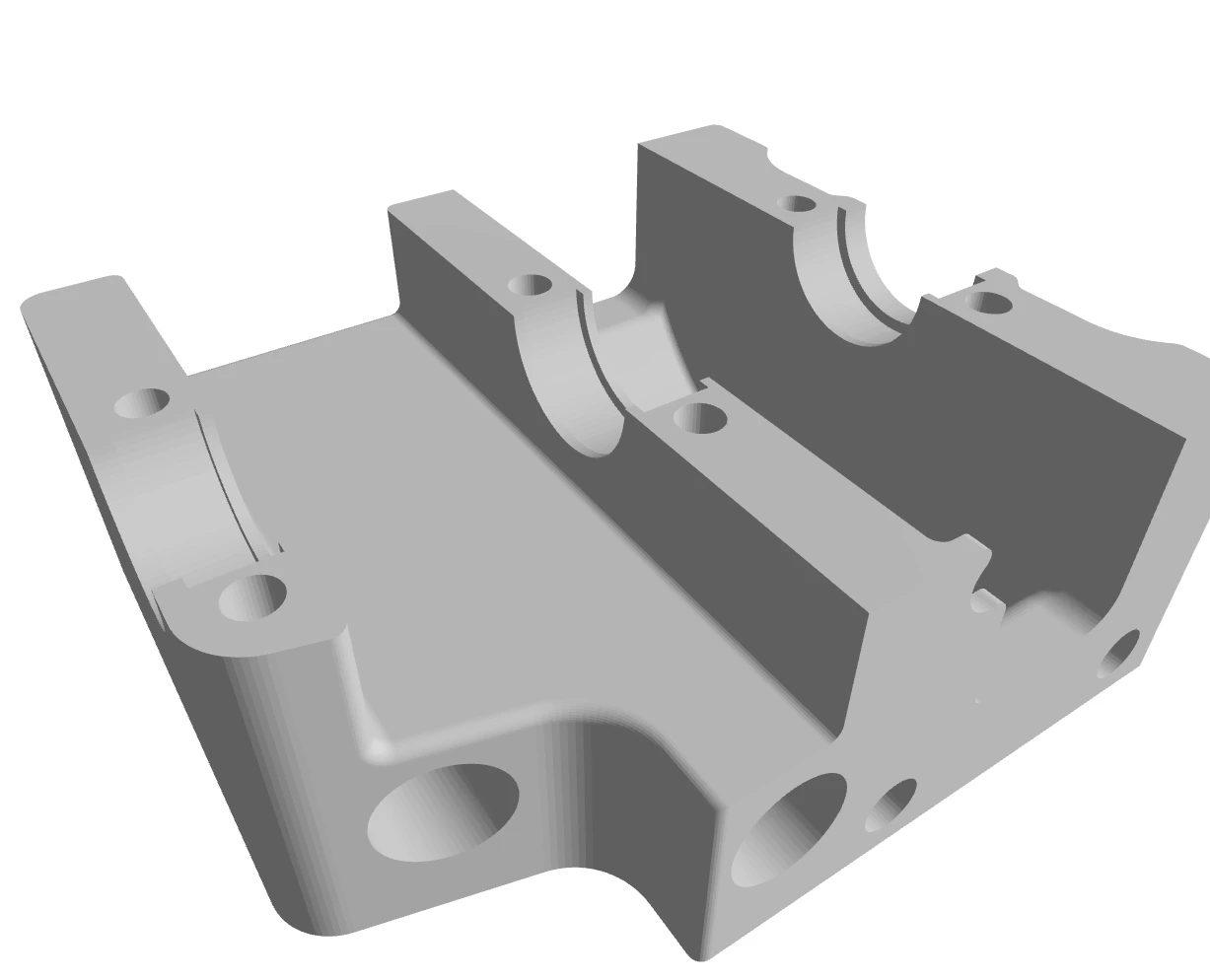

Open large \| Close	Voron-2/STLs/Z_Drive/z_drive_main_b_x2.stl	2 ☐☐

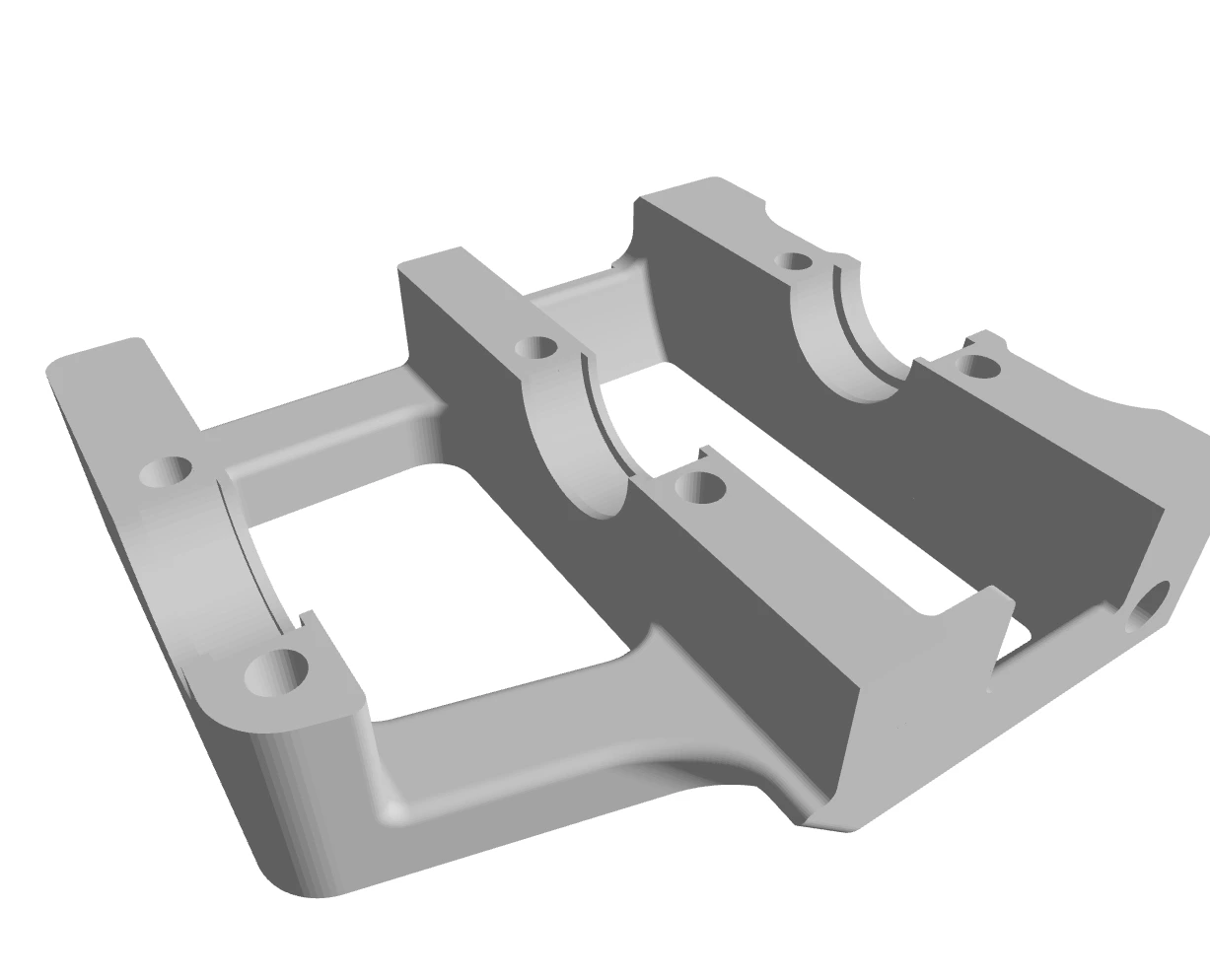

Open large \| Close	Voron-2/STLs/Z_Drive/z_drive_retainer_a_x2.stl	2 ☐☐

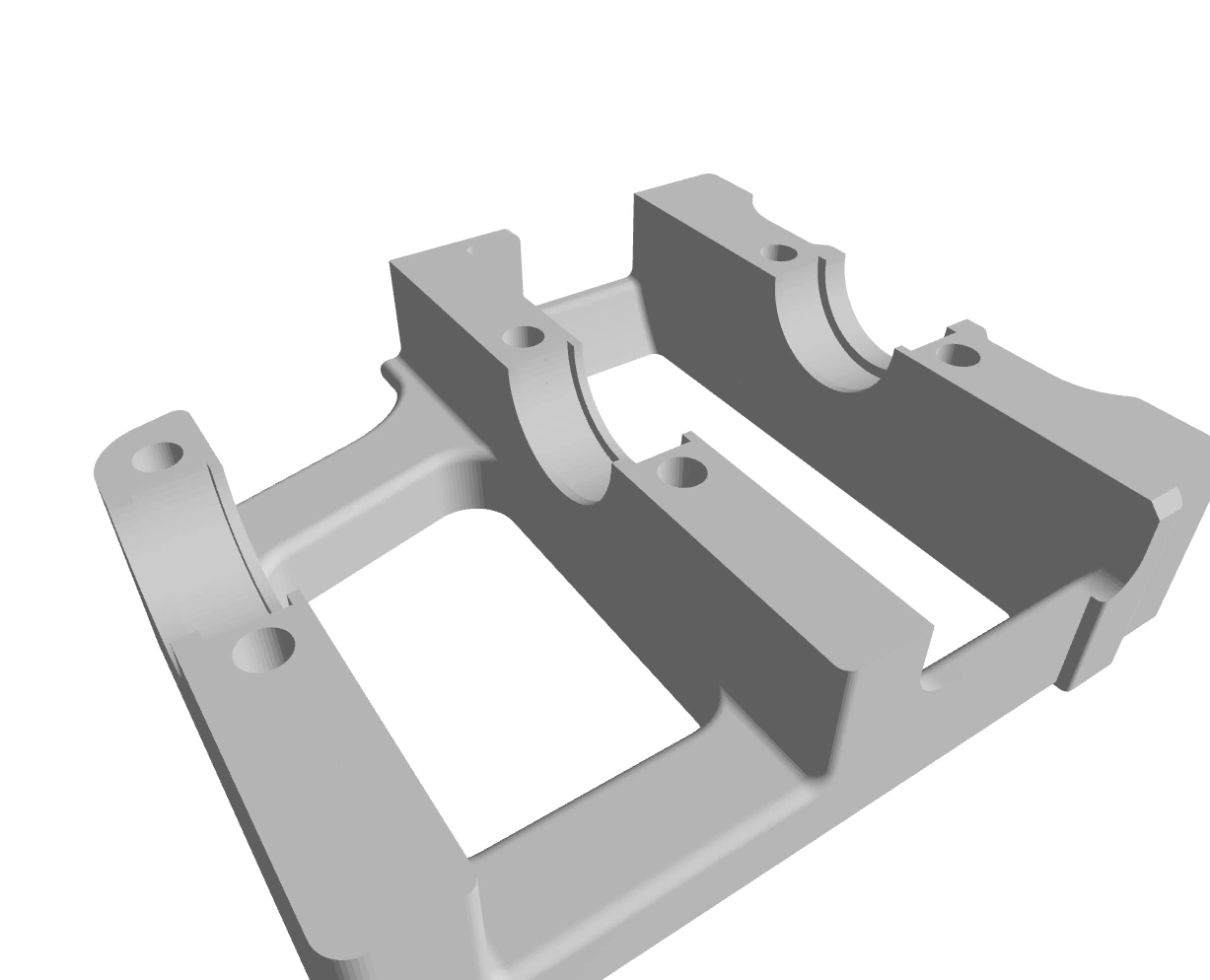

Open large \| Close	Voron-2/STLs/Z_Drive/z_drive_retainer_b_x2.stl	2 ☐☐

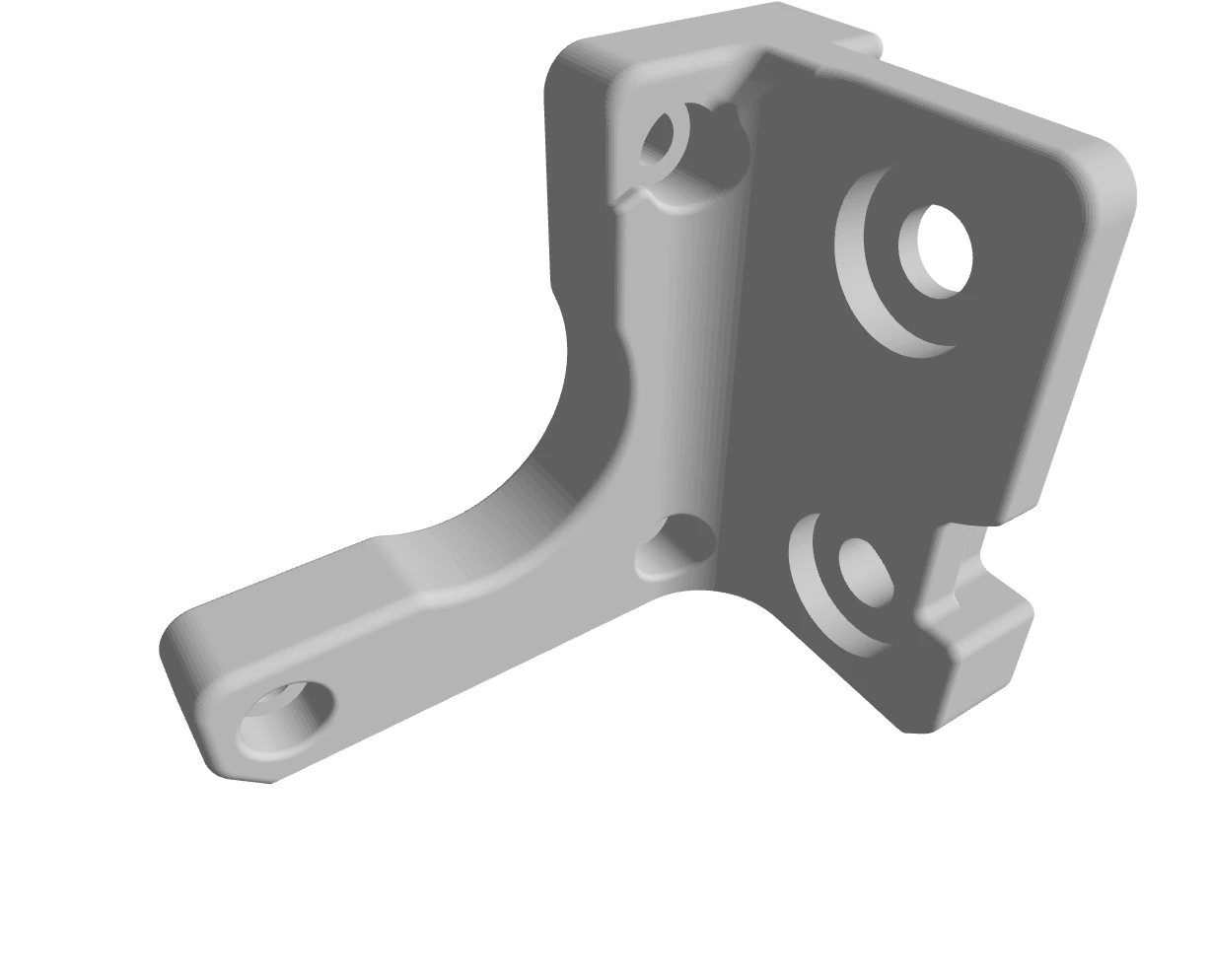

Open large \| Close	Voron-2/STLs/Z_Drive/z_motor_mount_a_x2.stl	2 ☐☐

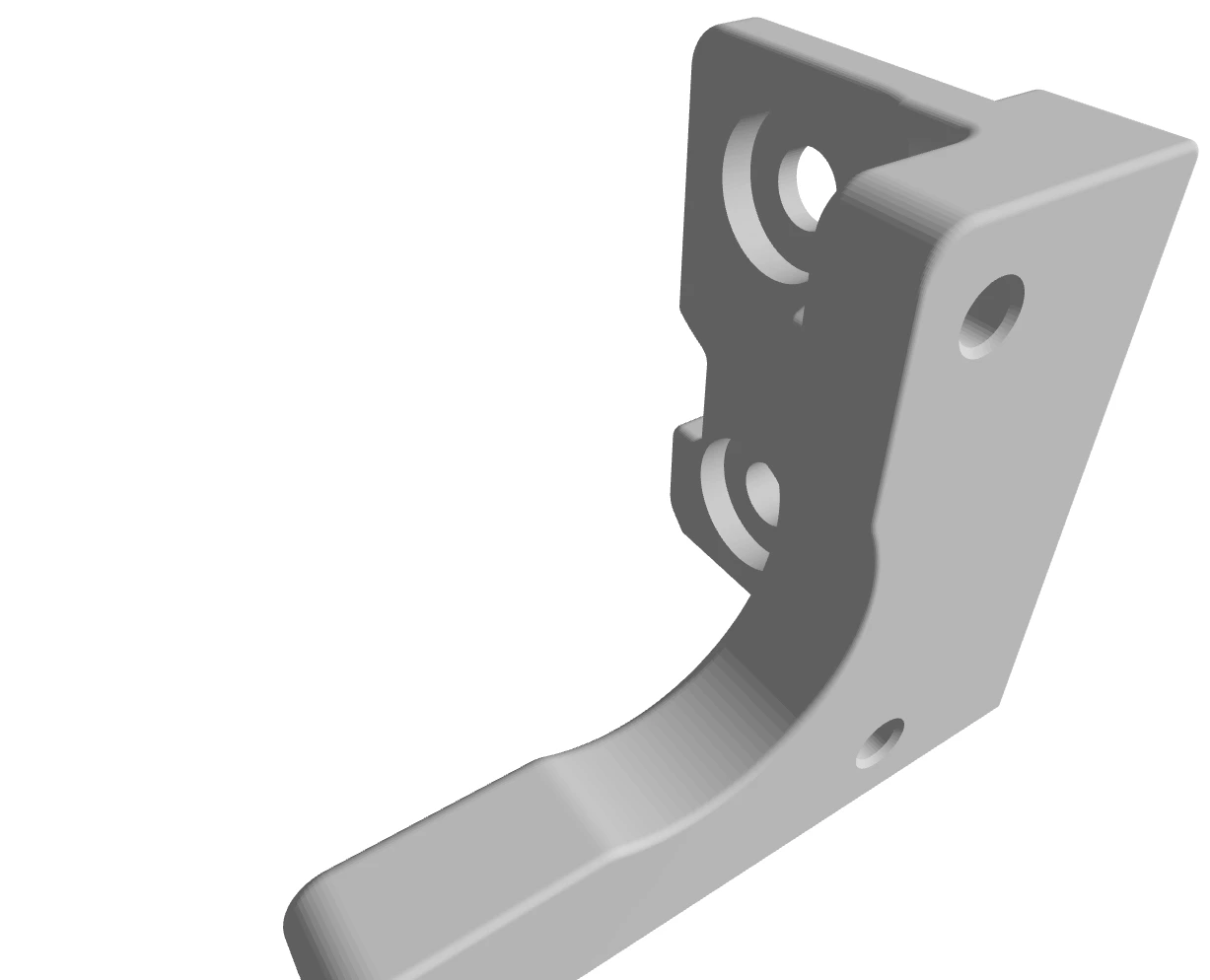

Open large \| Close	Voron-2/STLs/Z_Drive/z_motor_mount_b_x2.stl	2 ☐☐

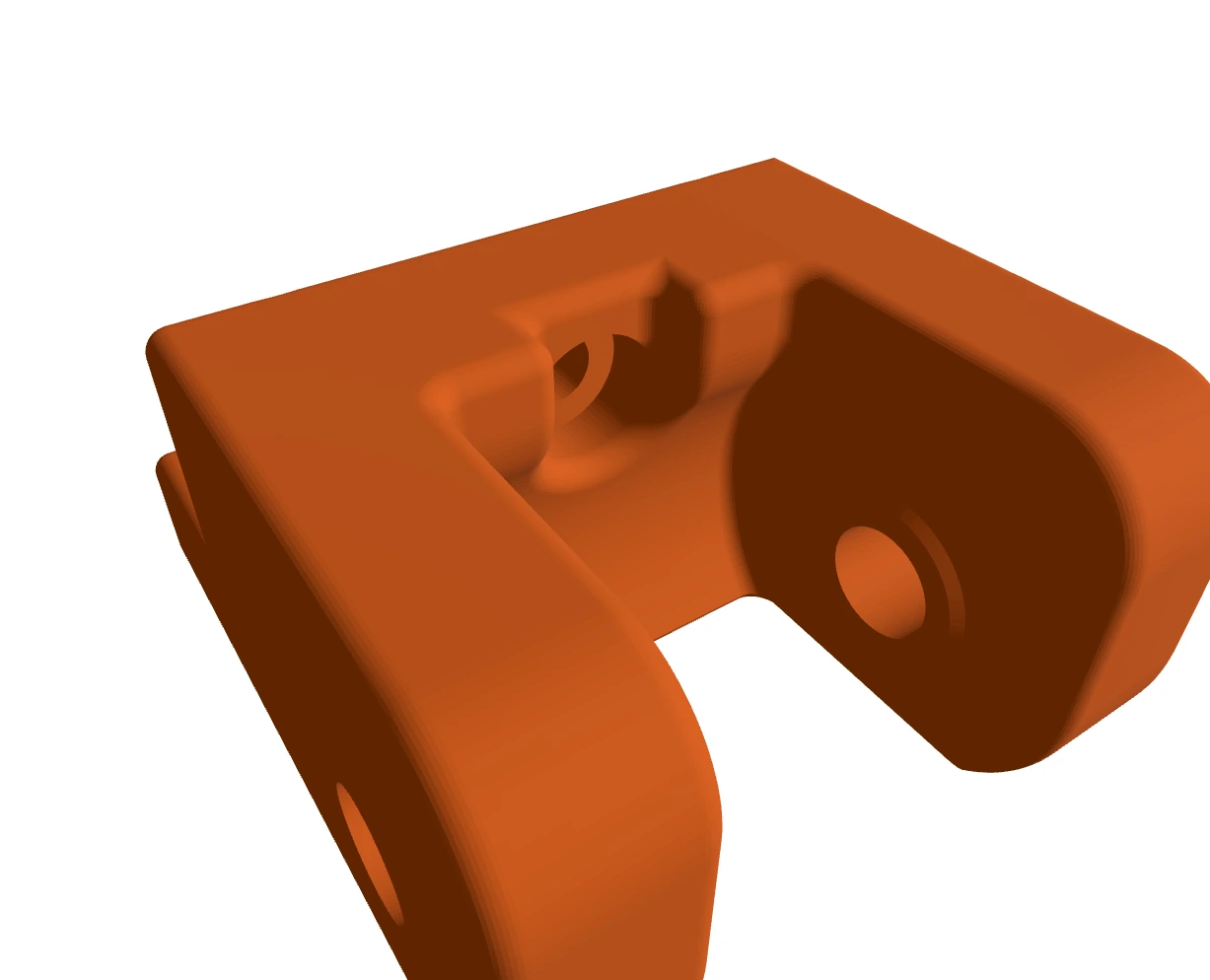

Open large \| Close	Voron-2/STLs/Z_Idlers/[a]_z_tensioner_9mm_x4.stl	4 ☐☐☐☐

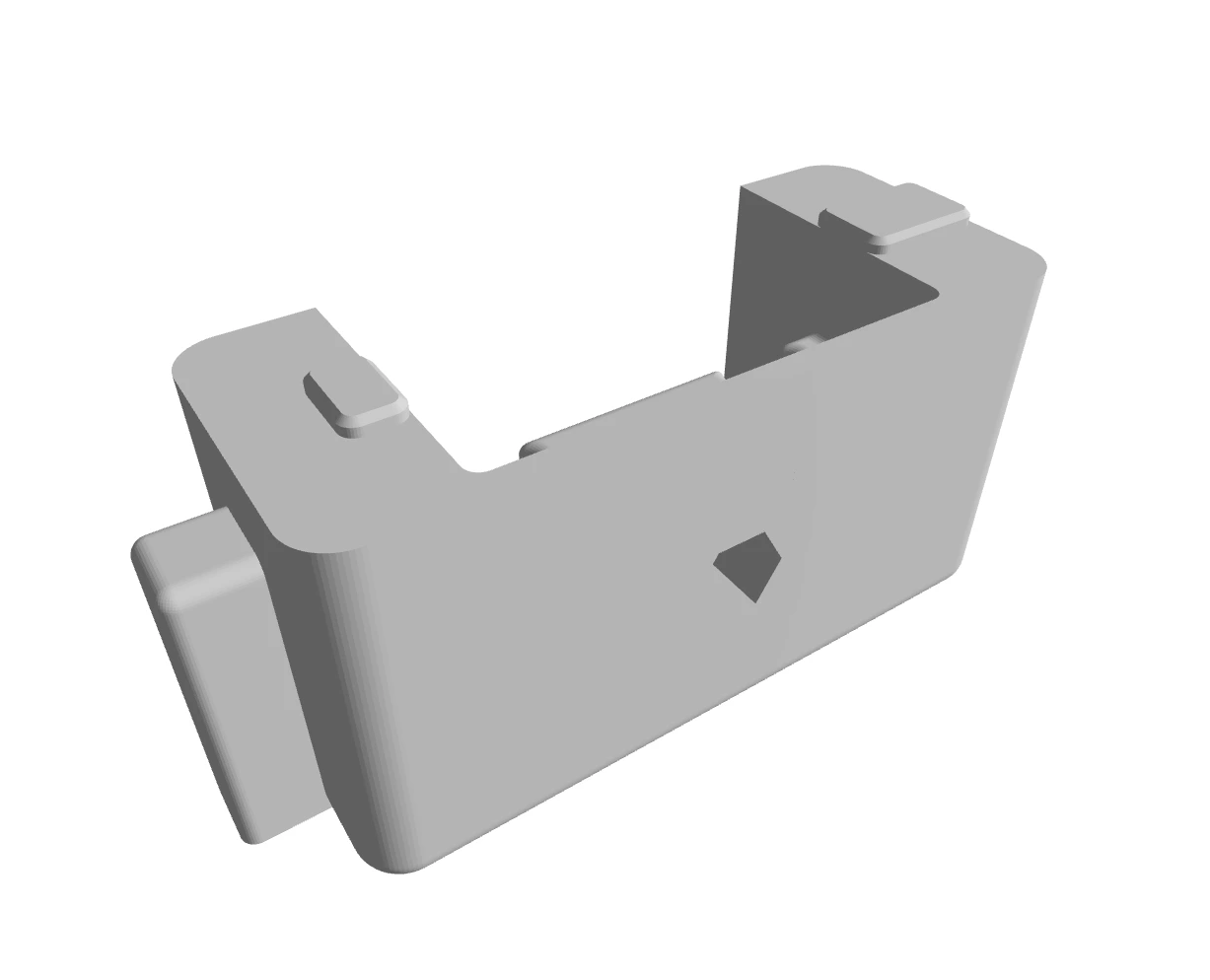

Open large \| Close	Voron-2/STLs/Z_Idlers/z_tensioner_bracket_a_x2.stl	2 ☐☐

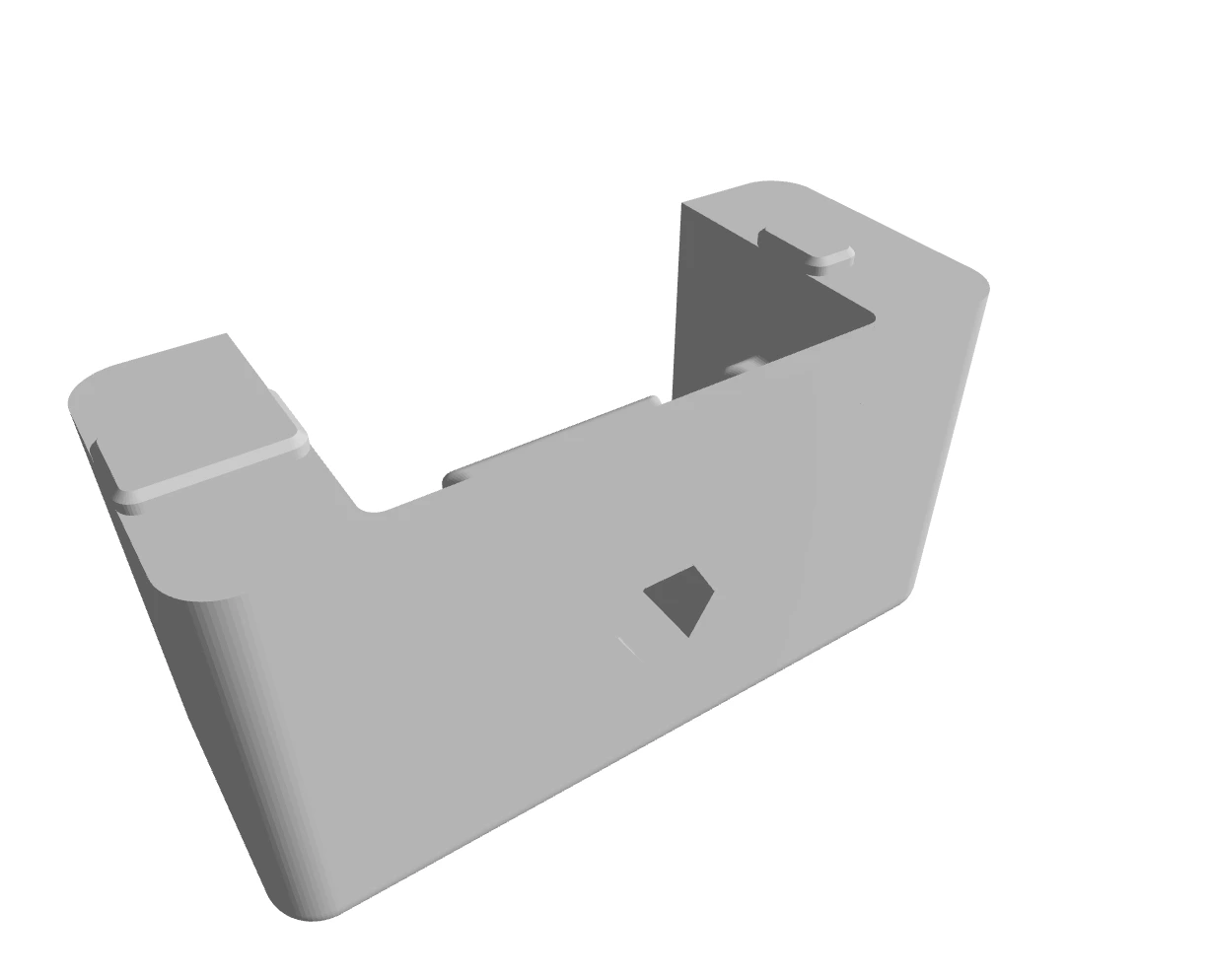

Open large \| Close	Voron-2/STLs/Z_Idlers/z_tensioner_bracket_b_x2.stl	2 ☐☐

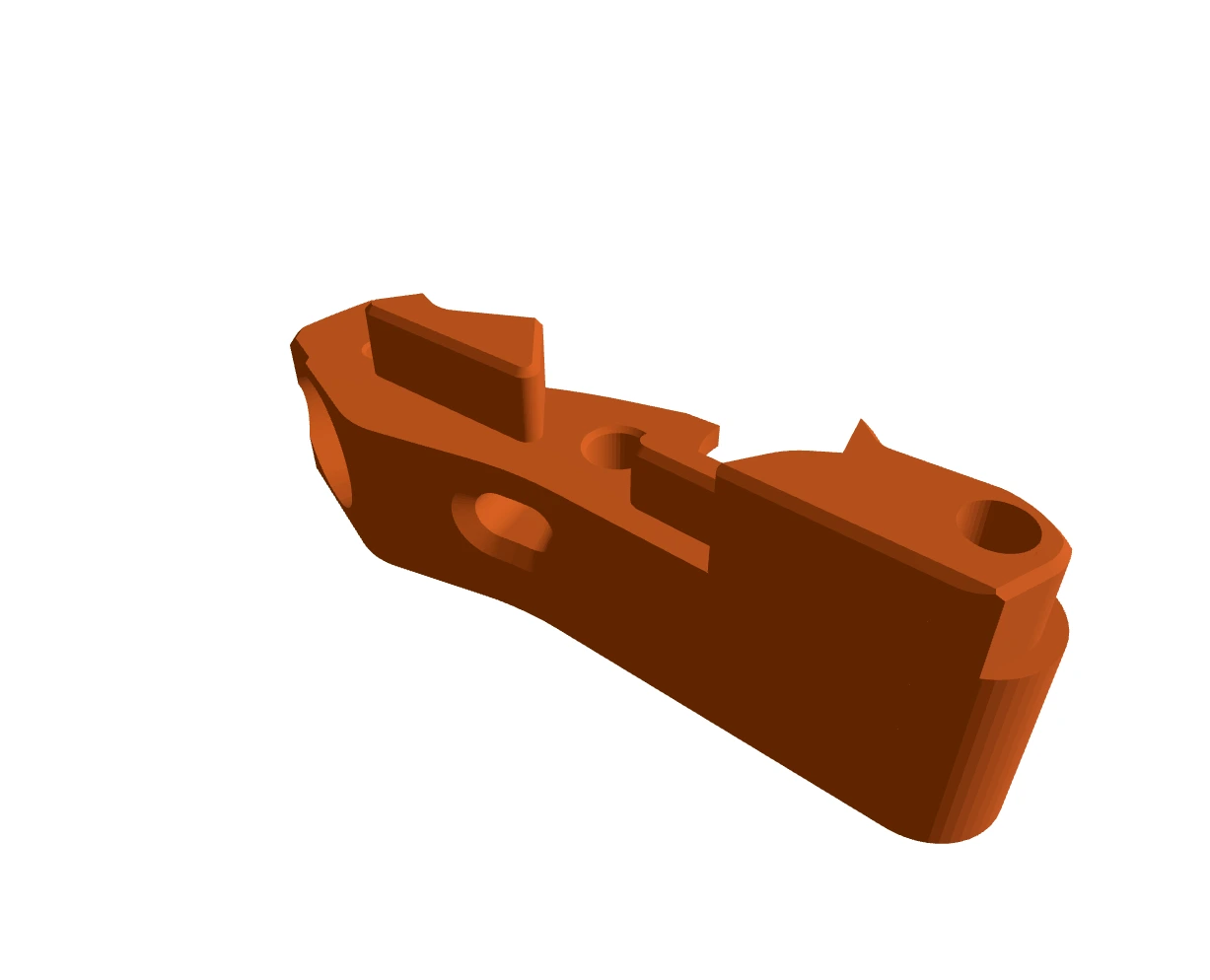

Open large \| Close	Voron-Stealthburner/STLs/Clockwork2/Direct_Drive/[a]_guidler_a.stl	1 ☐

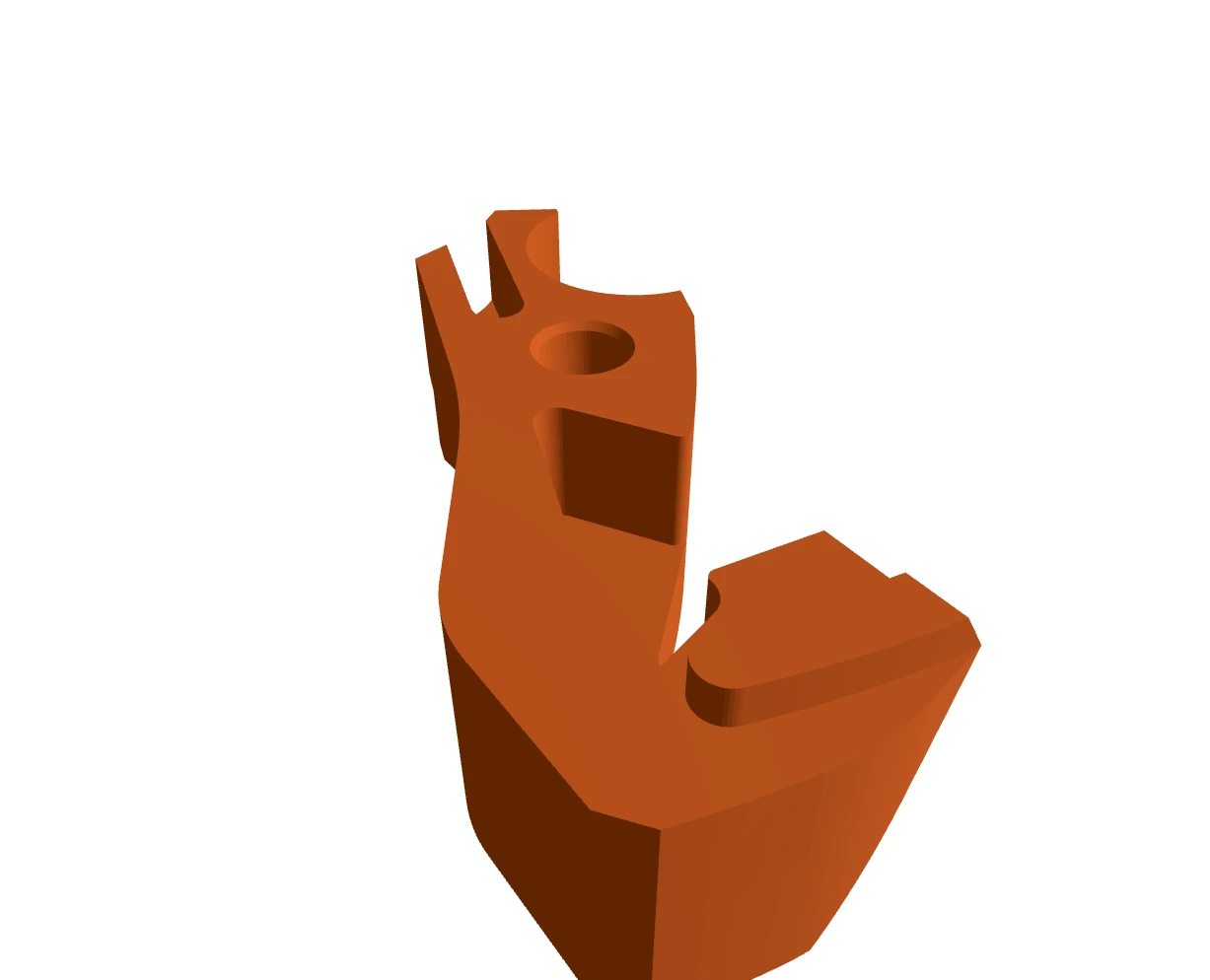

Open large \| Close	Voron-Stealthburner/STLs/Clockwork2/Direct_Drive/[a]_guidler_b.stl	1 ☐

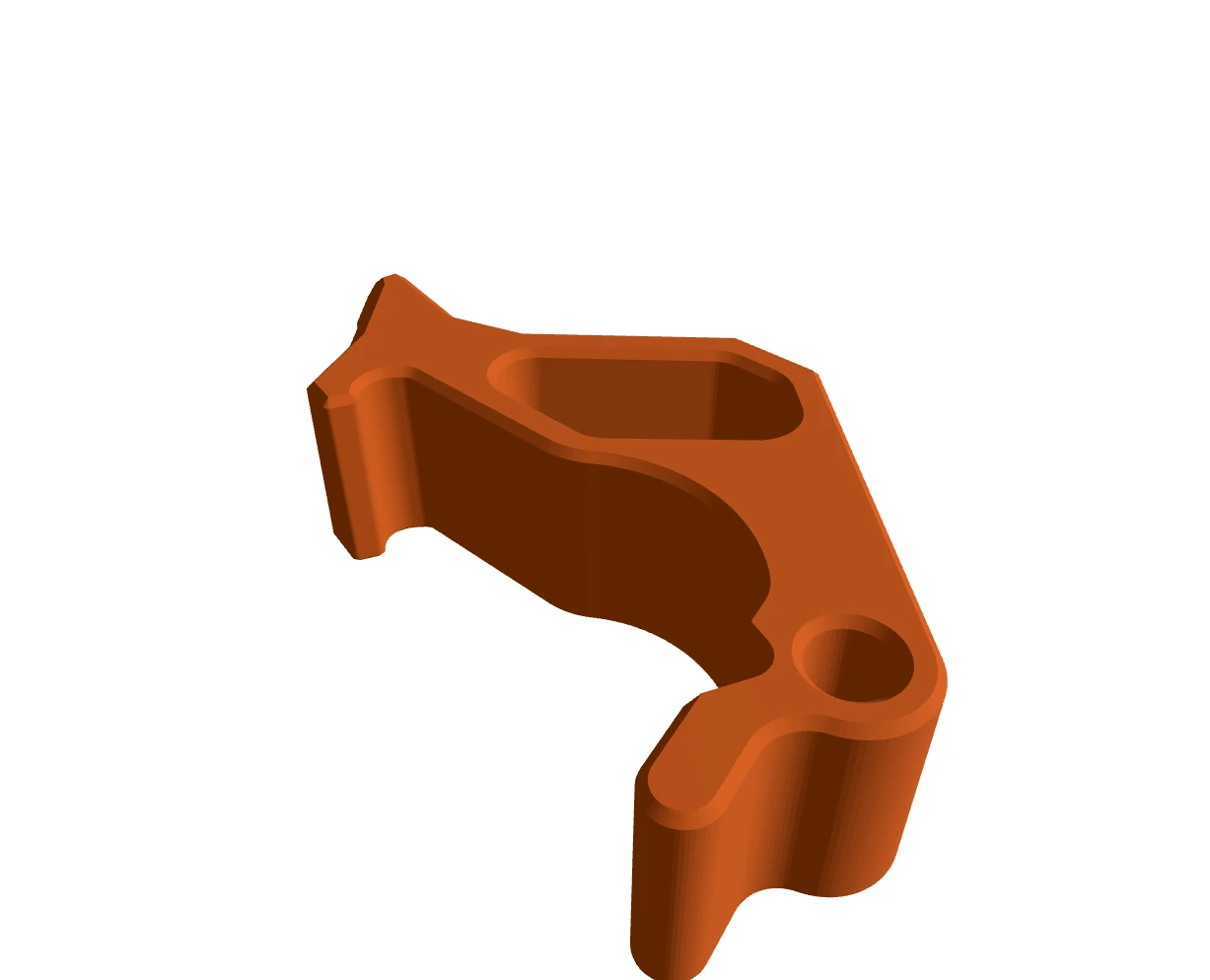

Open large \| Close	Voron-Stealthburner/STLs/Clockwork2/Direct_Drive/[a]_latch.stl	1 ☐

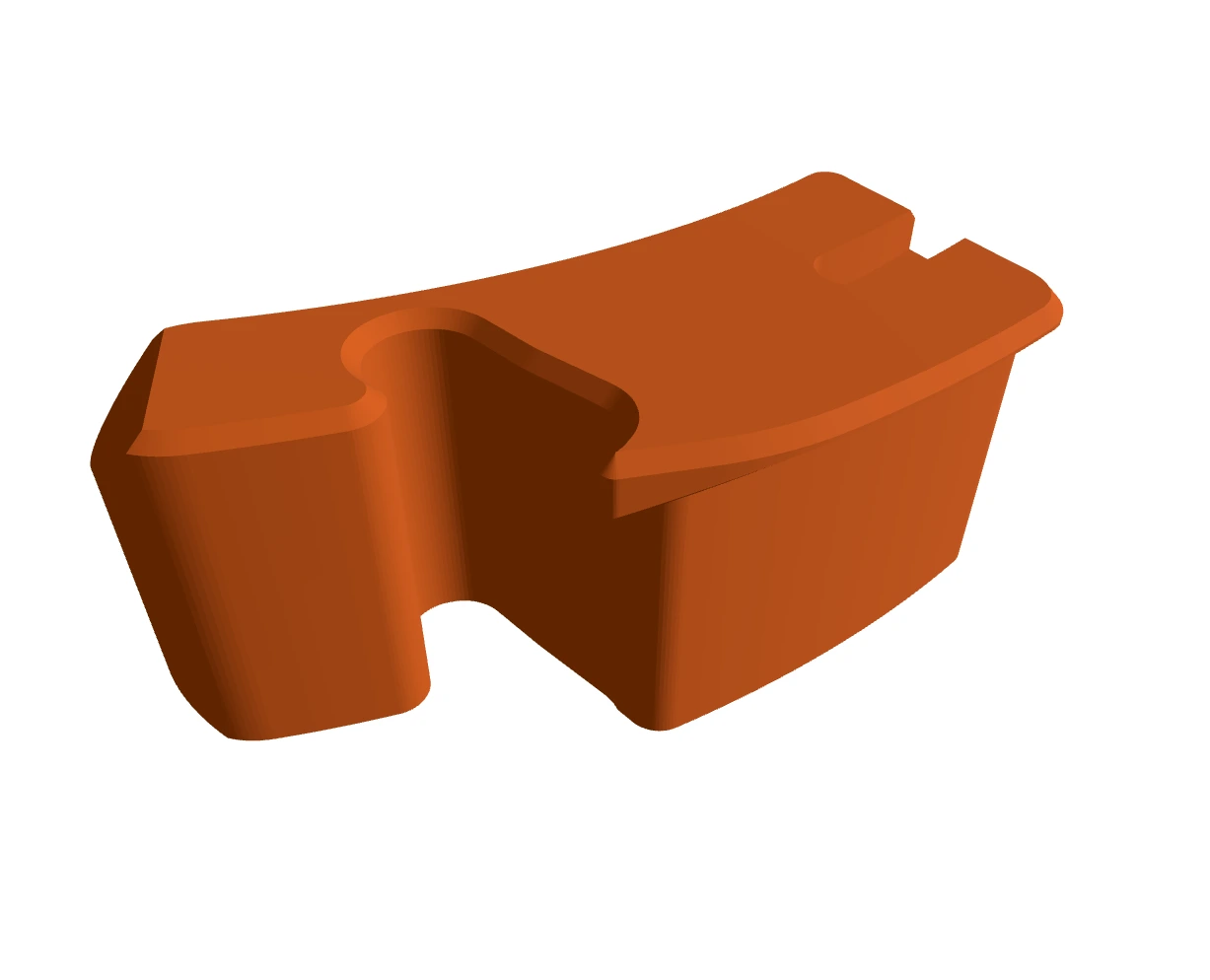

Open large \| Close	Voron-Stealthburner/STLs/Clockwork2/Direct_Drive/[a]_latch_shuttle.stl	1 ☐
Open large \| Close	Voron-Stealthburner/STLs/Clockwork2/Direct_Drive/main_body.stl	1 ☐

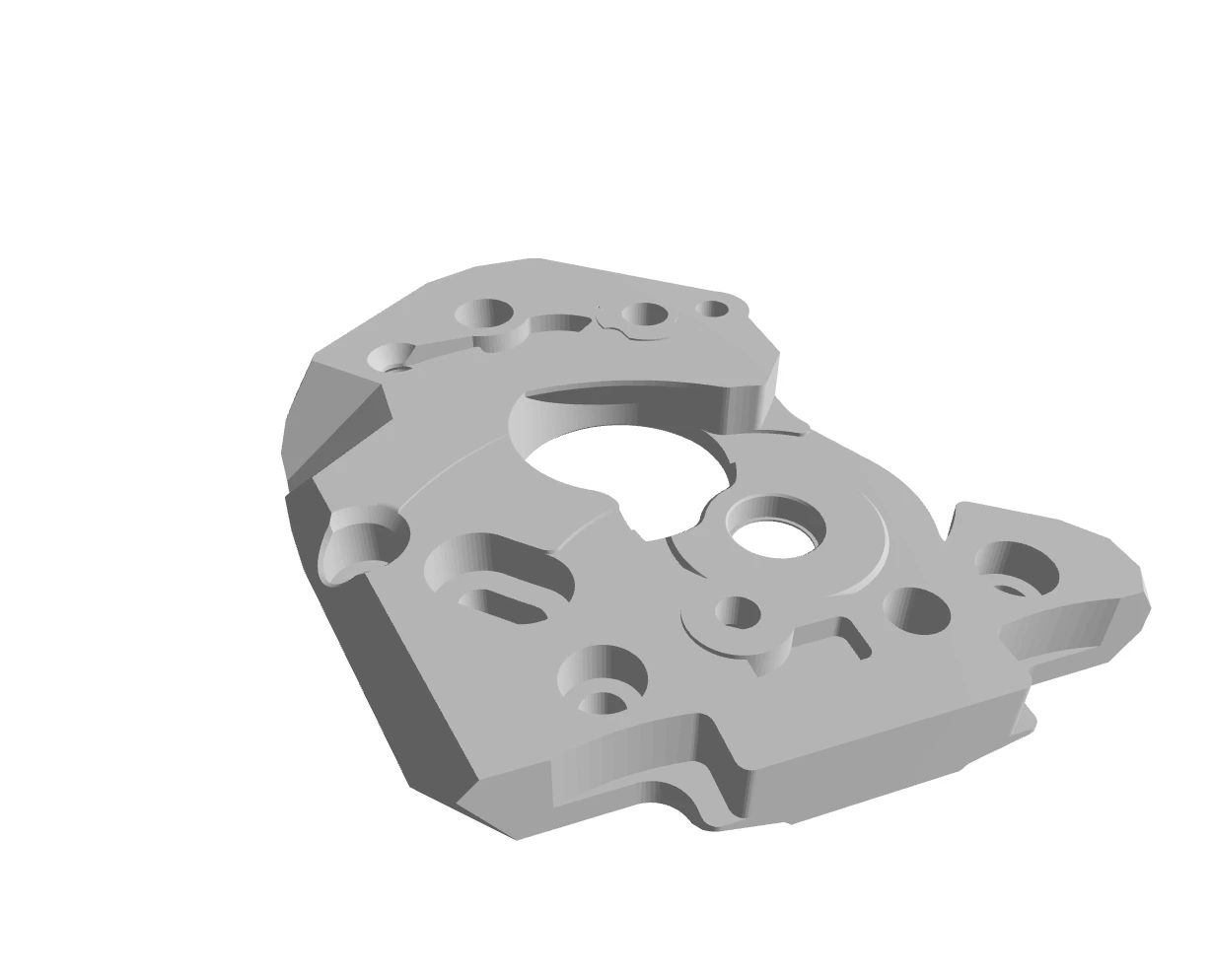

Open large \| Close	Voron-Stealthburner/STLs/Clockwork2/Direct_Drive/motor_plate.stl	1 ☐

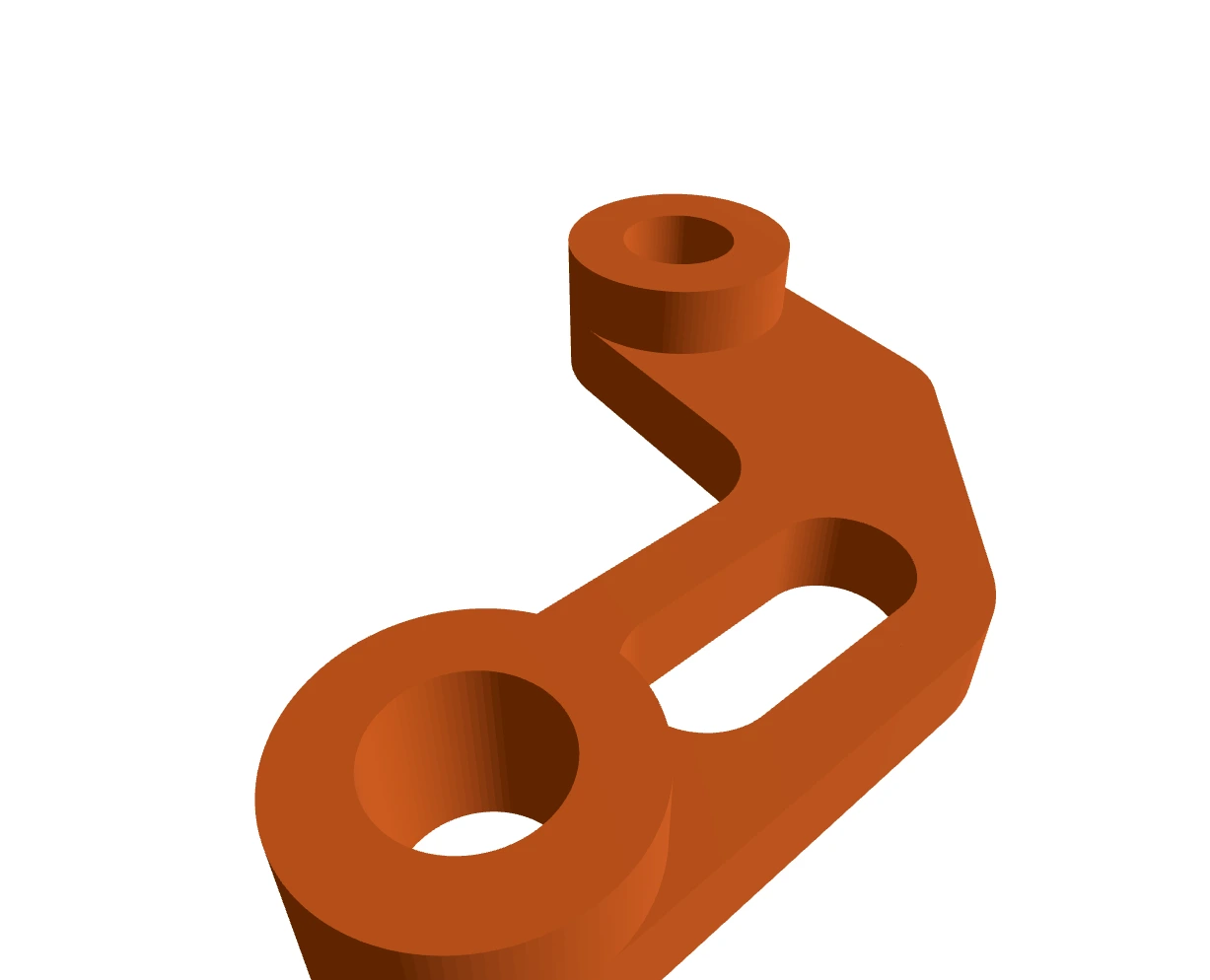

Open large \| Close	Voron-Stealthburner/STLs/Clockwork2/[a]_pcb_spacer.stl	1 ☐
Open large \| Close	Voron-Stealthburner/STLs/Clockwork2/chain_anchor_2hole.stl	1 ☐

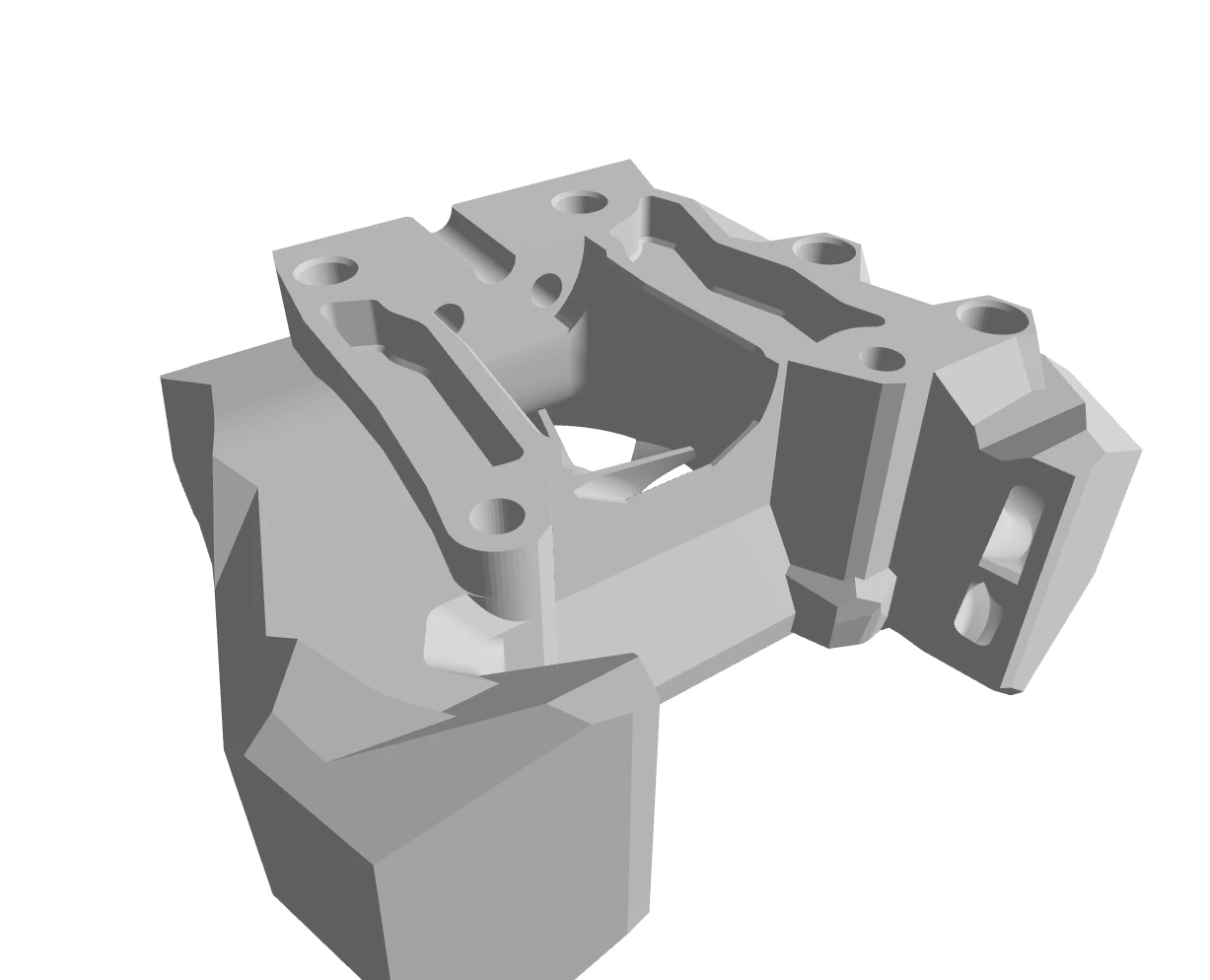

Open large \| Close	Voron-Stealthburner/STLs/Stealthburner/Printheads/revo_voron/stealthburner_printhead_revo_voron_front.stl	1 ☐

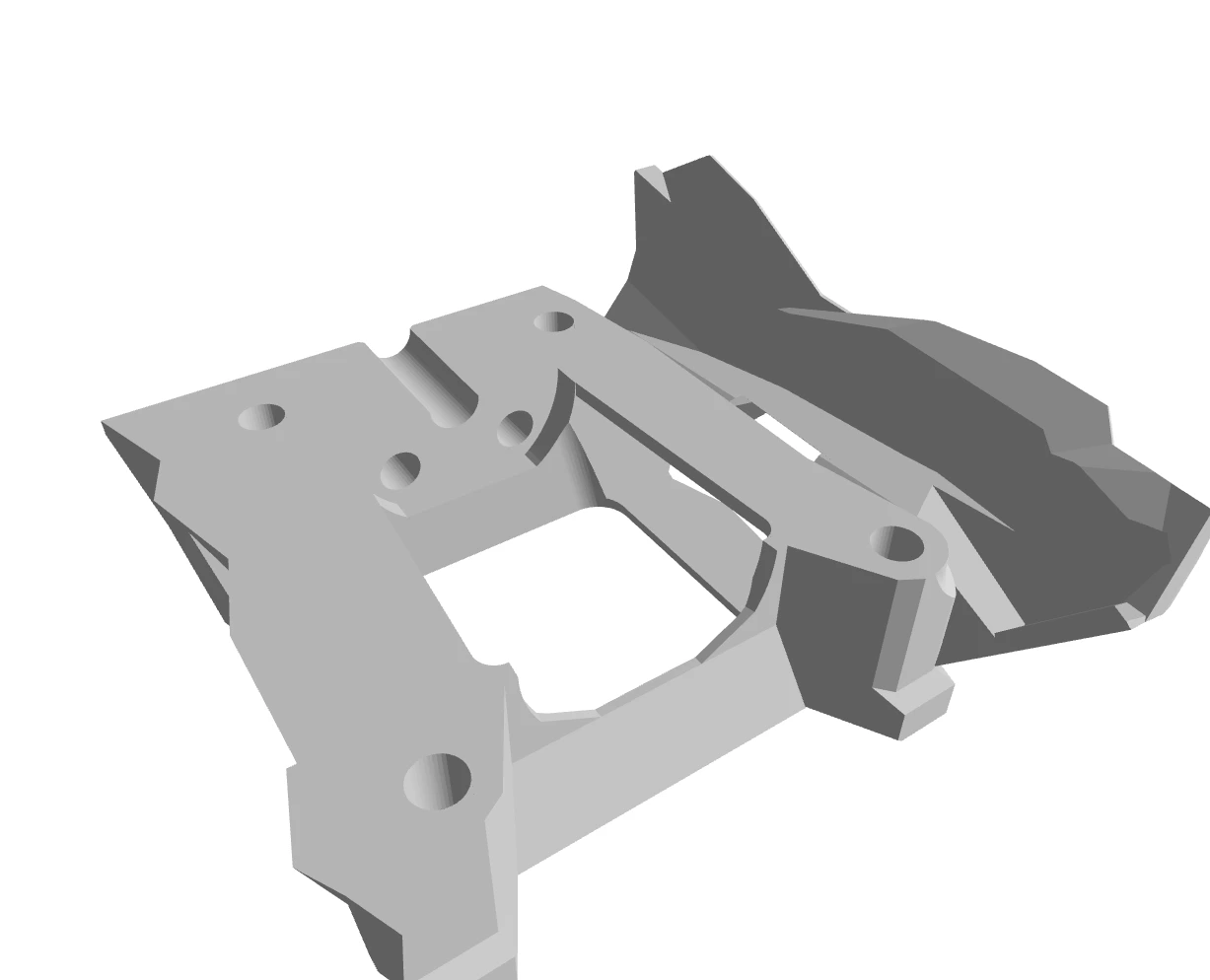

Open large \| Close	Voron-Stealthburner/STLs/Stealthburner/Printheads/revo_voron/stealthburner_printhead_revo_voron_rear_cw2.stl	1 ☐

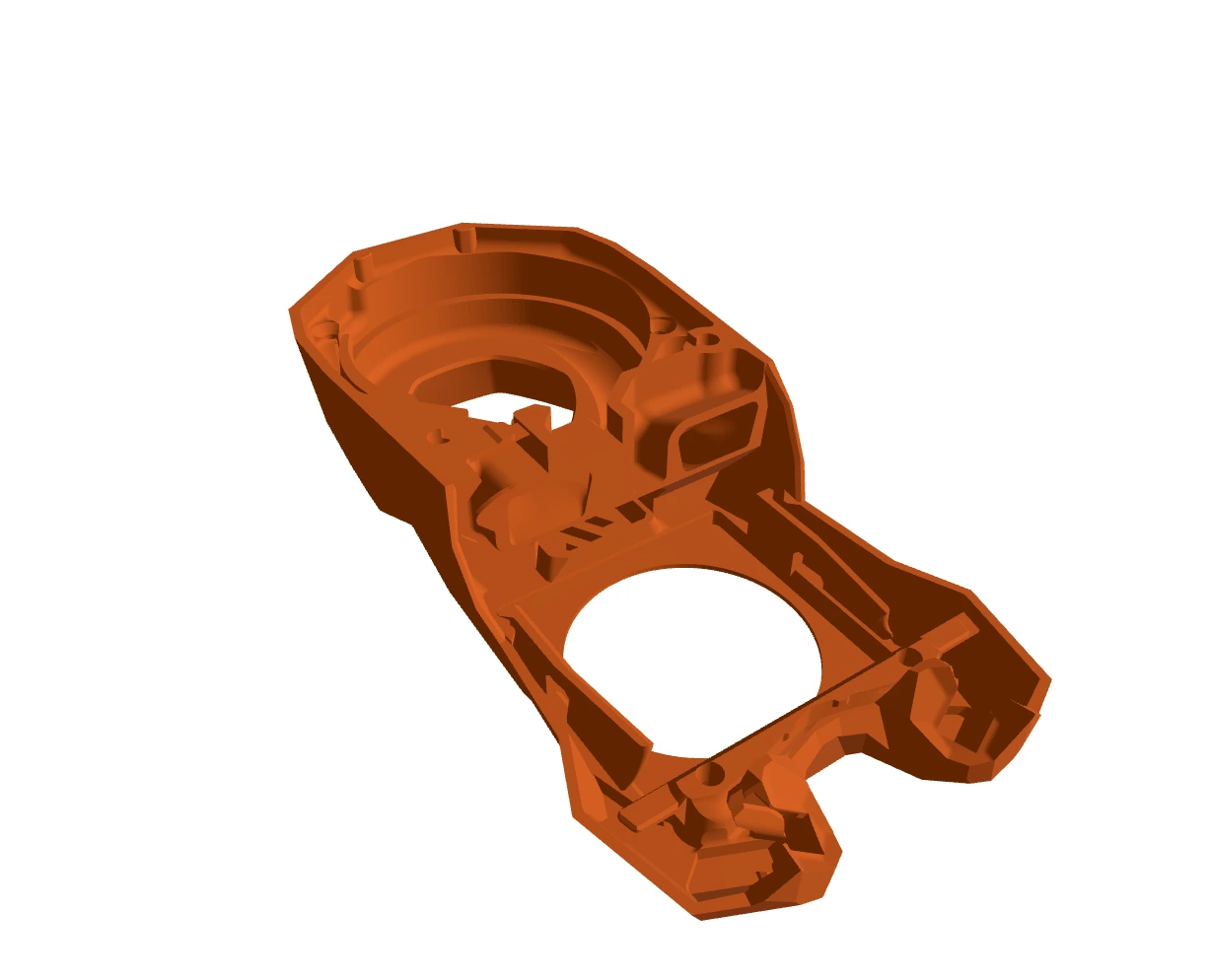

Open large \| Close	Voron-Stealthburner/STLs/Stealthburner/[a]_stealthburner_main_body.stl	1 ☐

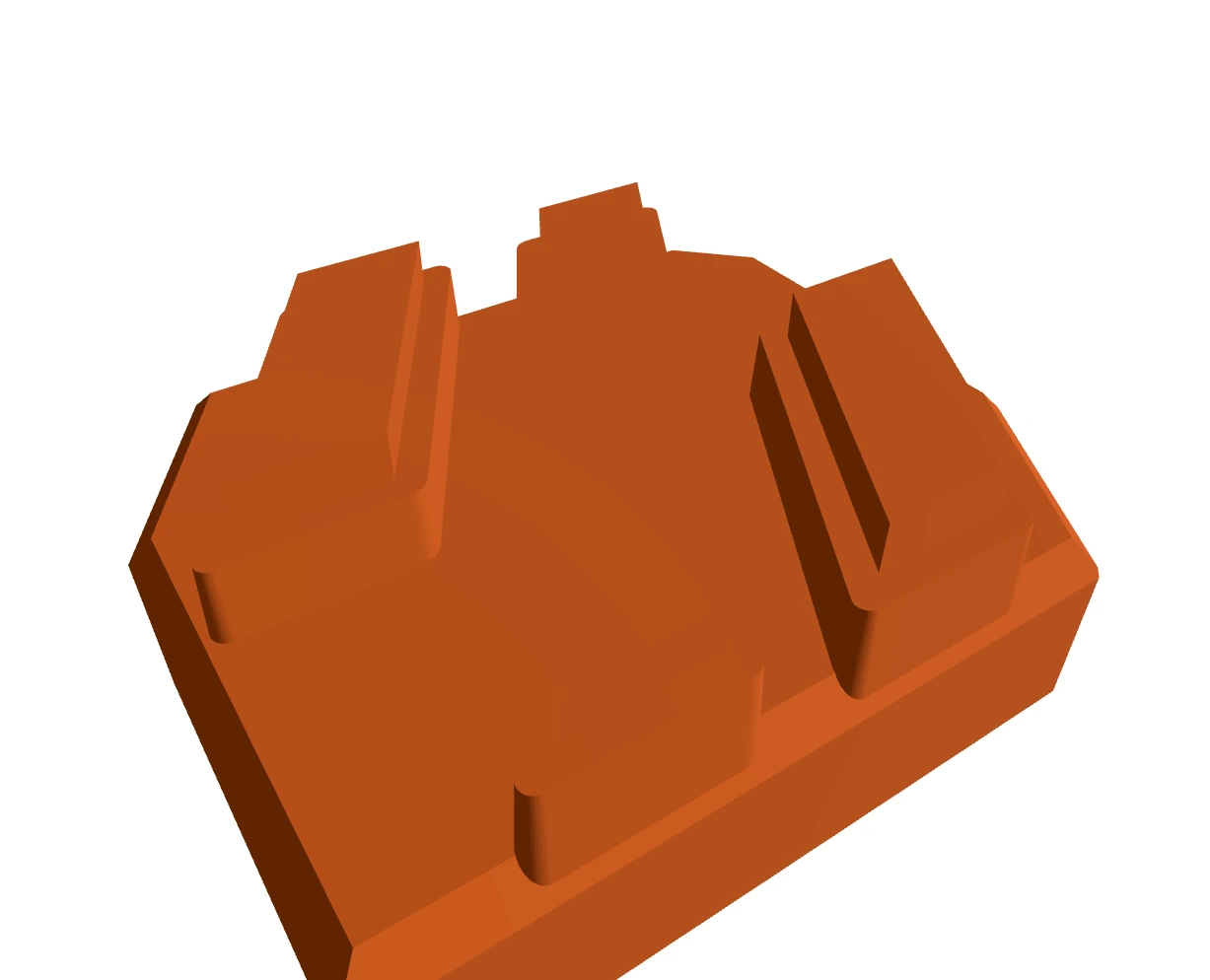

Open large \| Close	Voron-Stealthburner/STLs/Stealthburner/[c]_stealthburner_LED_diffuser.stl	1 ☐

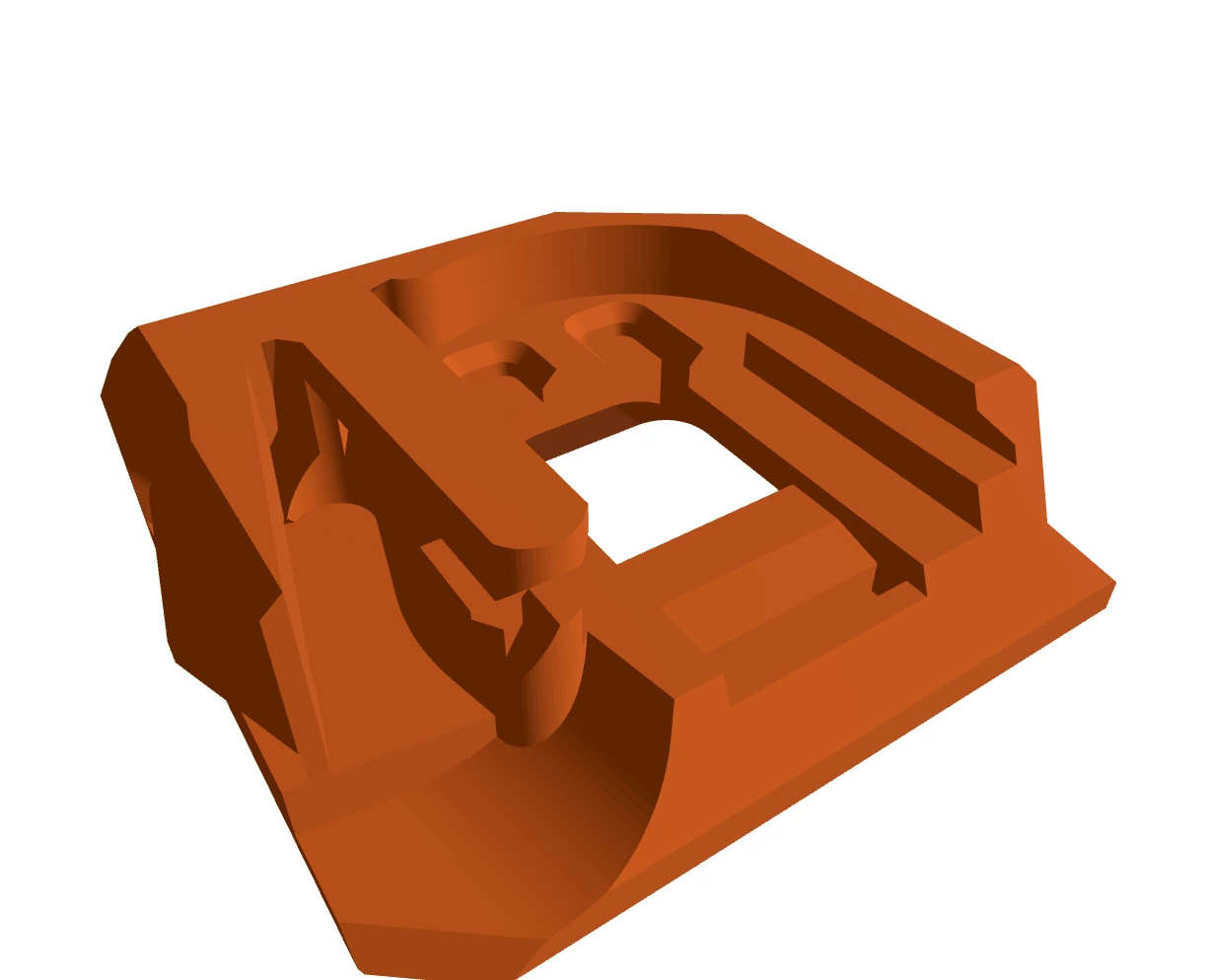

Open large \| Close	Voron-Stealthburner/STLs/Stealthburner/[o]_stealthburner_LED_carrier.stl	1 ☐

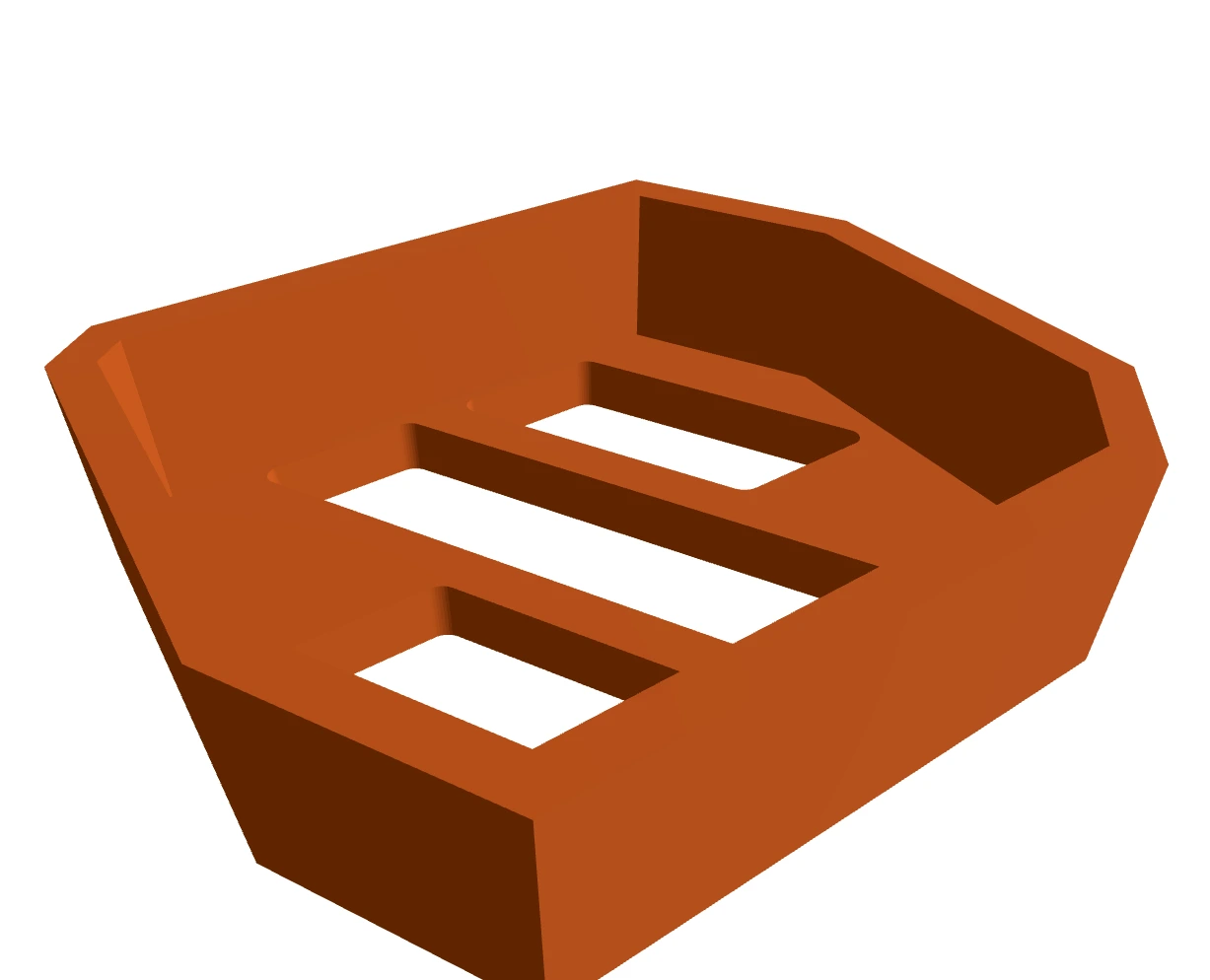

Open large \| Close	Voron-Stealthburner/STLs/Stealthburner/[o]_stealthburner_LED_diffuser_mask.stl	1 ☐
